Fuel Tank Draining

SPECIAL TOOLS

G06064441
 Fuel Storage Tanker
164-R3202 or equivalent
  1. WARNING: Before beginning any service procedure in this information, refer to SAFETY WARNINGS in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.
  2. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .

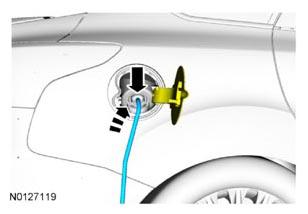

  3. NOTE: The supplement refueling adapter is located in the luggage compartment.

    Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel ™ (capless) fuel tank filler pipe.

    G08620127

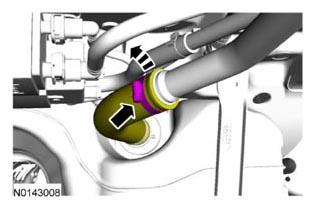

  4. NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.
    G08620128

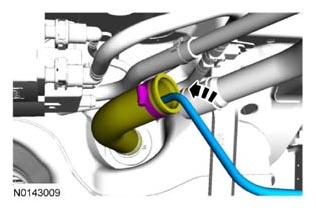

  5. G08620129
