Electrical short inside the harness

  1. = Solder coated wire to ground
  2. = Harness protective tape
  3. = Intermittent short

    Solder coated wire pierced through the insulation of another circuit.

  4. = Grounding foil

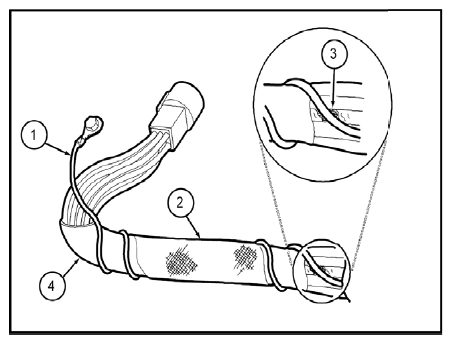

    Fig 1: Identifying Electrical Short Inside Harness
    G08741517Courtesy of FORD MOTOR CO.
