Component Location: Notes

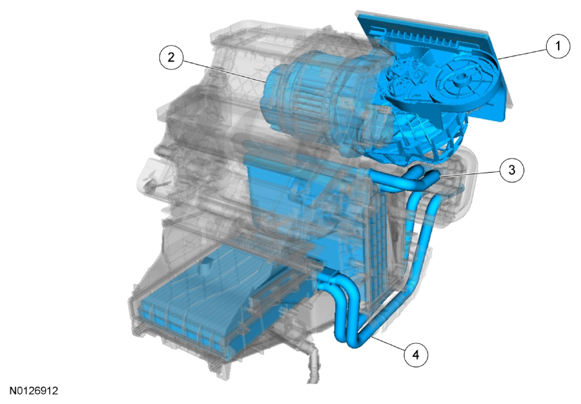

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator core |
| 4 | Heater core |

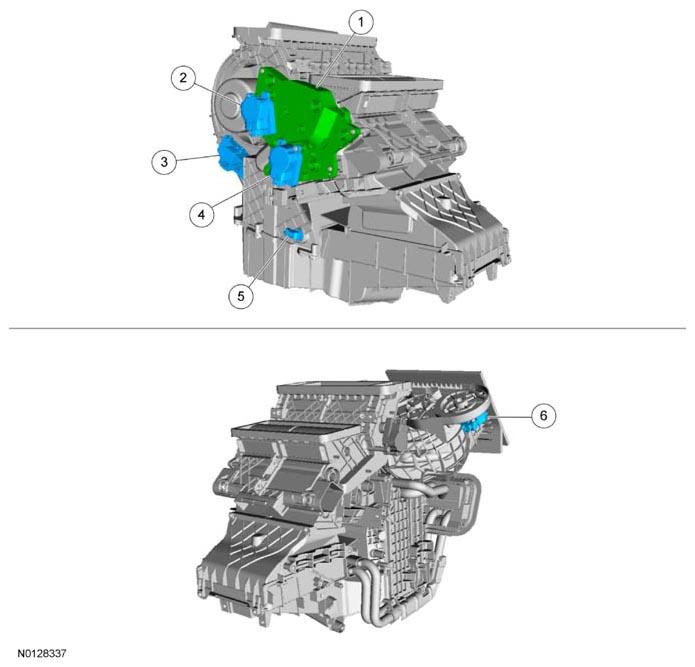

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Defrost/panel/floor airflow mode door actuator |
| 3 | Blower motor speed control |
| 4 | Temperature blend door actuator |
| 5 | Evaporator discharge air temperature sensor |
| 6 | Air inlet door mode door actuator |
