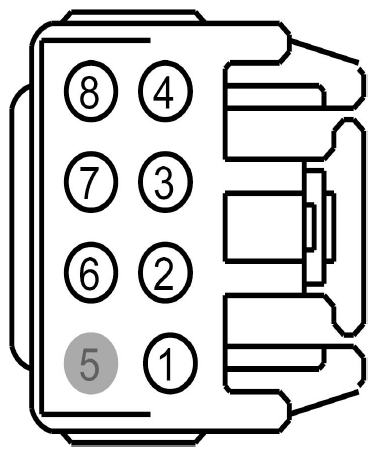

Master Window Adjust Switch Connector End View (C535B)

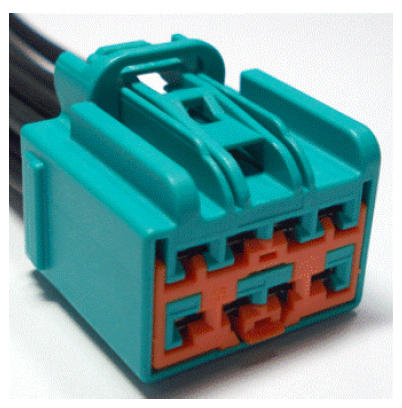

Fig 1: Identifying Master Window Adjust Switch Connector (C535B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW15 (YE)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN	MKX
2	CPW16 (BU-OG)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP	MKX
3	CBP01 (BU)	12	FUSE - 1 OR CIRCUIT BREAKER	MKX
4	CPW14 (VT-WH)	14	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)	MKX
5	*	*	Not Used
6	GD133 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT	MKX
7	CPW17 (BN-GN)	14	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN	MKX
8	CPW18 (GY-VT)	14	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	MKX

Available Pigtail Kits

Pigtail Kit Part Number WPT-1031

Service Part Number: 3U2Z-14S411-PPB  Gauge: 10 12  Pin material: Tin & Silver  Cavities: 8  Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat
