Master Window Adjust Switch Connector End View (C504B)

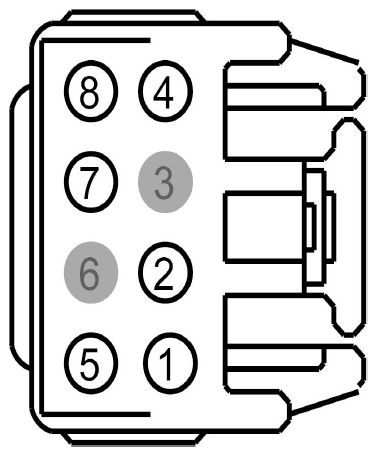

Fig 1: Identifying Master Window Adjust Switch Connector (C504B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW15 (YE)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN	Edge
2	CPW14 (VT-WH)	14	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)	Edge
3	*	*	Not Used
4	CPW17 (BN-GN)	14	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN	Edge
5	CPW16 (BU-OG)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP	Edge
6	*	*	Not Used
7	GD133 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT	Edge
8	CPW18 (GY-VT)	14	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	Edge

Available Pigtail Kits

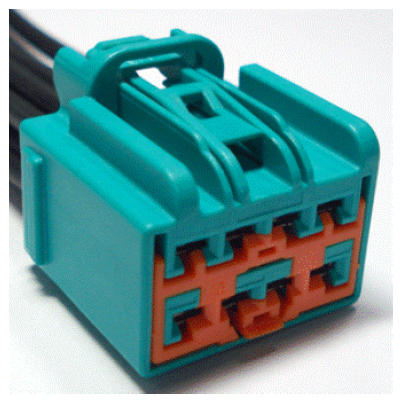

Pigtail Kit Part Number WPT-1031

Service Part Number: 3U2Z-14S411-PPB  Gauge: 10 12  Pin material: Tin & Silver  Cavities: 8  Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat
