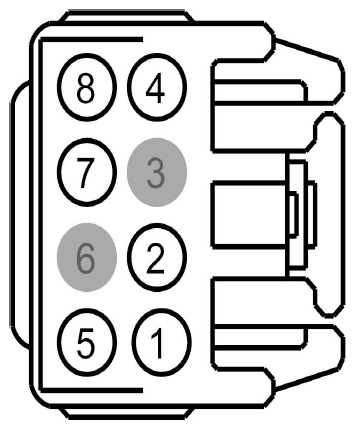

Master Window Adjust Switch Connector End View (C504A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPW10 (YE-VT) | 14 | SWITCH - POWER WINDOW DRIVER # DRIVER DOWN | Edge |
| 2 | CBP01 (BU) | 12 | FUSE - 1 OR CIRCUIT BREAKER | Edge |
| 3 | * | * | Not Used | |
| 4 | CPW12 (GN-OG) | 12 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | Edge |
| 5 | CPW11 (BU-GY) | 14 | SWITCH - POWER WINDOW DRIVER # DRIVER UP | Edge |
| 6 | * | * | Not Used | |
| 7 | CPW29 (VT-GY) | 22 | SWITCH - POWER WINDOW DRIVER # DRIVER AUTOMATIC ONE TOUCH | Edge |
| 8 | CPW13 (BN-YE) | 12 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | Edge |
