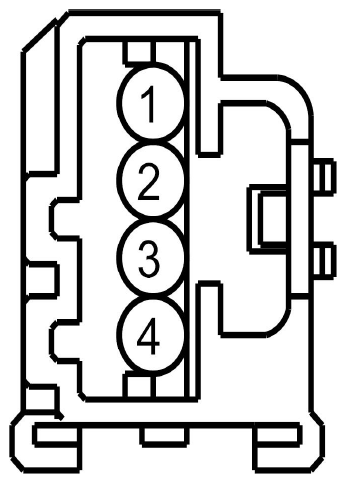

Liftgate Latch Connector End View (C479)

Fig 1: Identifying Liftgate Latch Connector (C479)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL84 (GN-BN)	20	RELAY - LIFTGATE/DECKLID RELEASE
2	GD149 (BK-GY)	20	GROUND - PILLAR D LEFT
3	GD149 (BK-GY)	22	GROUND - PILLAR D LEFT
4	CPL58 (GY-OG)	20	SWITCH - LIFTGATE/DECKLID # GLASS AJAR

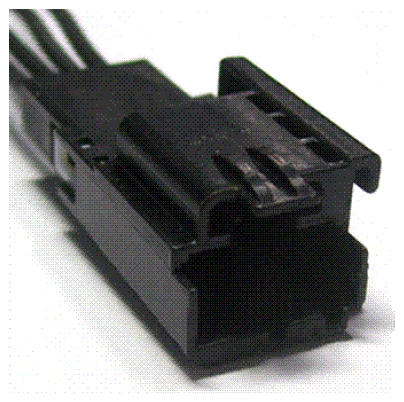

Available Pigtail Kits
Pigtail Kit Part Number WPT-1041	Service Part Number: 9U2Z-14S411-AJA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid/Lift Gate Ajar
