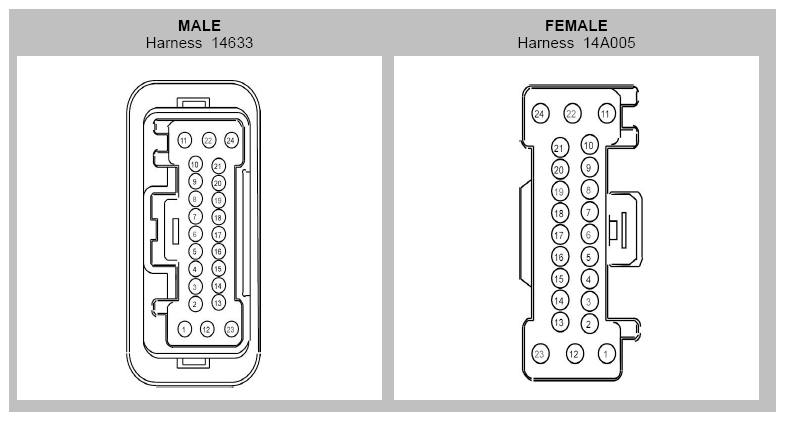

Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPW14 (VT-WH) |
14 |
|
| 2 |
VLN04 (VT-GY) |
20 |
MKX |
| 3 |
* |
* |
|
| 4 |
RME09 (BN-YE) |
18 |
14A005 |
| 4 |
RME09 (BN-YE) |
20 |
14633 |
| 5 |
VME09 (WH-GN) |
18 |
14A005 |
| 5 |
VME09 (WH-GN) |
20 |
14633 |
| 6 |
* |
* |
|
| 7 |
CPL36 (GN) |
20 |
14633 |
| 7 |
CPL36 (GN) |
22 |
14A005 |
| 8 |
* |
* |
|
| 9 |
VLN51 (WH-OG) |
20 |
14633 |
| 9 |
VLN51 (WH-OG) |
22 |
14A005 |
| 10 |
VLN52 (WH-GN) |
20 |
14633 |
| 10 |
VLN52 (WH-GN) |
22 |
14A005 |
| 11 |
CPW15 (YE) |
14 |
|
| 12 |
CPL52 (VT-GY) |
18 |
|
| 13 |
VLN53 (WH-BU) |
20 |
14633 |
| 13 |
VLN53 (WH-BU) |
22 |
14A005 |
| 14 |
VLN59 (BU-GY) |
20 |
14633 - MKX |
| 14 |
VLN59 (BU-GY) |
22 |
14A005 - MKX |
| 15 |
CHS46 (YE-GN) |
20 |
14633 |
| 15 |
CHS46 (YE-GN) |
22 |
14A005 |
| 16 |
CHS47 (VT-GN) |
20 |
14633 |
| 16 |
CHS47 (VT-GN) |
22 |
14A005 |
| 17 |
CHS48 (YE) |
20 |
14633 |
| 17 |
CHS48 (YE) |
22 |
14A005 |
| 18 |
CHS49 (VT) |
20 |
14633 |
| 18 |
CHS49 (VT) |
22 |
14A005 |
| 19 |
* |
* |
|
| 20 |
GD126 (BK-WH) |
20 |
|
| 21 |
CPL11 (GY-BN) |
18 |
|
| 22 |
* |
* |
|
| 23 |
* |
* |
|
| 24 |
CPW16 (BU-OG) |
14 |
|
