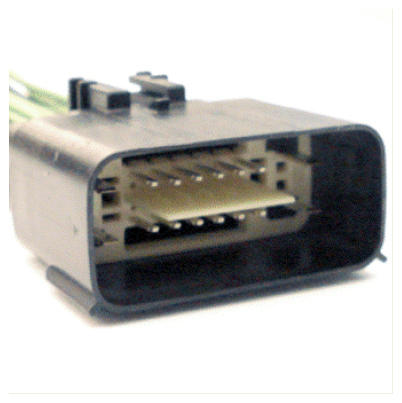

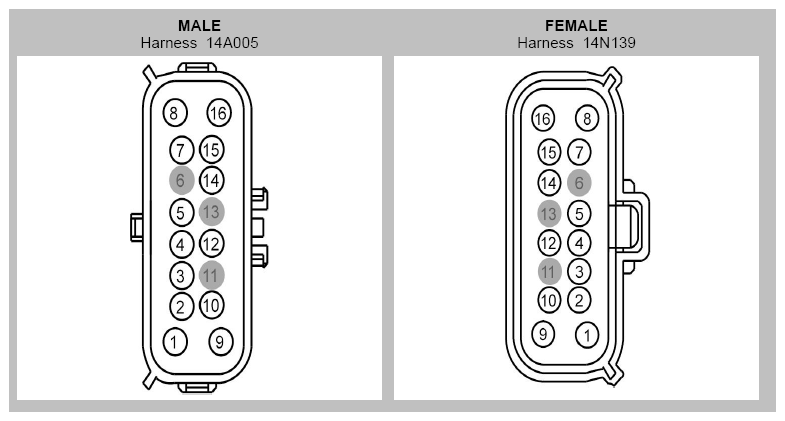

Inline Connector End View (C406)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | GD149 (BK-GY) | 16 | 14A005 |
| 1 | GD149 (BK-GY) | 16 | 14N139 - MKX |
| 1 | RAT08 (WH) | 16 | 14N139 - Edge |
| 2 | RPK07 (GN-OG) | 20 | |
| 3 | VPK07 (VT) | 20 | |
| 4 | RMP07 (GN-WH) | 20 | |
| 5 | LMP07 (BU-WH) | 20 | |
| 6 | * | * | |
| 7 | CBP40 (YE-GN) | 20 | 14A005 - MKX |
| 7 | CBP40 (YE-GN) | 20 | 14N139 - MKX |
| 8 | CAT09 (GN) | 18 | |
| 9 | CAT06 (YE) | 18 | |
| 10 | VMP14 (WH-OG) | 20 | |
| 11 | * | * | |
| 12 | VMP15 (YE-GN) | 20 | |
| 13 | * | * | |
| 14 | VMP16 (YE-GY) | 20 | |
| 15 | VMP17 (YE-OG) | 20 | |
| 16 | CAT17 (BN) | 16 |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses:
|
