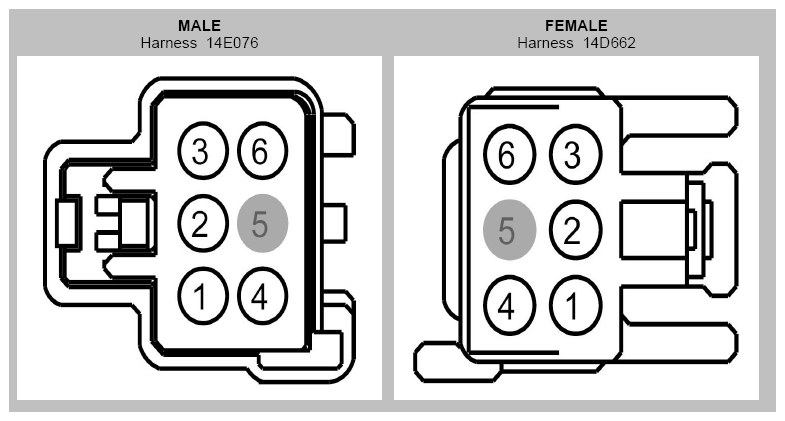

Inline Connector End View (C340)

Fig 1: Identifying Inline Connector (C340)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CLN48 (YE-OG)	22
1	CLN48 (YE-OG)	22	14E076
2	CLN49 (YE-GN)	22
2	CLN49 (YE-GN)	22	14E076
3	CLN50 (YE-BU)	22
3	CLN50 (YE-BU)	22	14E076
4	CLN58 (GY-OG)	22	14E076 - MKX
4	CLN58 (GY-OG)	22	MKX
5	*	*
6	RLN44 (BN)	22
6	RLN48 (BN)	22	14E076

Available Pigtail Kits

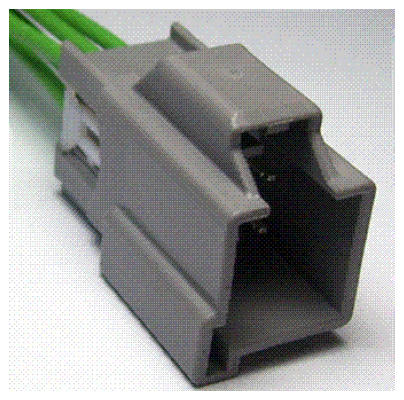

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

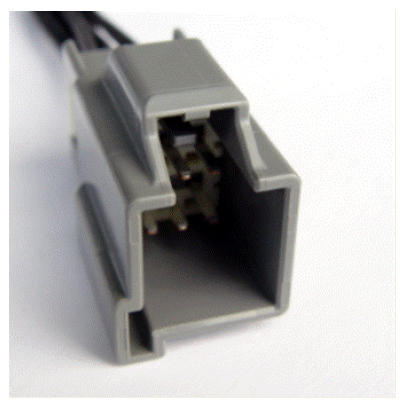

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
