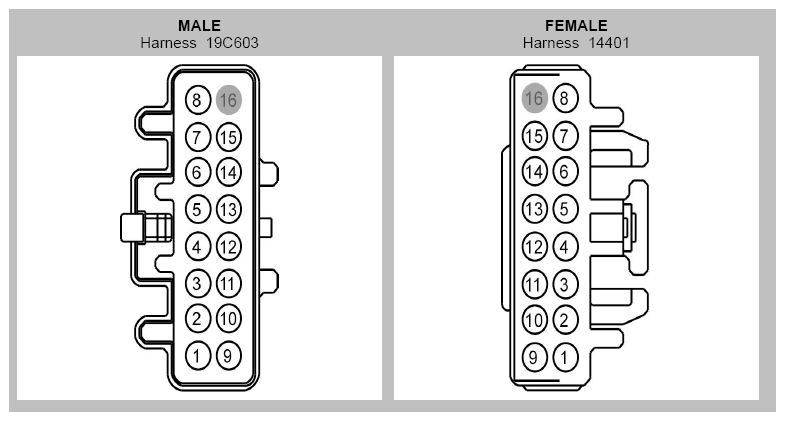

Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* (BK) |
* |
19C603 |
| 1 |
RH111 (GY-BU) |
22 |
14401 |
| 2 |
* (*) |
* |
19C603 - 2.0L GTDI |
| 2 |
* (BN) |
* |
19C603 - 3.5L/3.7L TIVCT |
| 2 |
CH207 (BU-GY) |
22 |
14401 |
| 3 |
* (*) |
* |
19C603 - 2.0L GTDI |
| 3 |
* (GN) |
* |
19C603 - 3.5L/3.7L TIVCT |
| 3 |
CH208 (GN-OG) |
22 |
14401 |
| 4 |
* (*) |
* |
19C603 - 2.0L GTDI |
| 4 |
* (GY) |
* |
19C603 - 3.5L/3.7L TIVCT |
| 4 |
CBP37 (WH) |
22 |
14401 - 3.5L/3.7L TIVCT |
| 4 |
VH438 (GN-VT) |
22 |
14401 - 2.0L GTDI |
| 5 |
* (GY-BK) |
* |
19C603 |
| 5 |
CH228 (YE-GY) |
22 |
14401 |
| 6 |
* (BU) |
* |
19C603 |
| 6 |
CH229 (WH-BU) |
22 |
14401 |
| 7 |
* (BU-RD) |
* |
19C603 |
| 7 |
VH436 (YE-VT) |
22 |
14401 |
| 8 |
* (LG-BK) |
* |
19C603 |
| 8 |
VH406 (VT-BN) |
22 |
14401 |
| 9 |
* (OG) |
* |
19C603 |
| 9 |
LH111 (BN-WH) |
22 |
14401 |
| 10 |
* (OG-BK) |
* |
19C603 |
| 10 |
CH212 (BU-OG) |
22 |
14401 - with Dual Zone |
| 10 |
CH238 (YE-OG) |
22 |
14401 - with Single Zone |
| 11 |
* (VT) |
* |
19C603 |
| 11 |
CH213 (BN-GN) |
22 |
14401 - with Dual Zone |
| 11 |
CH239 (BU-WH) |
22 |
14401 - with Single Zone |
| 12 |
* (RD) |
* |
19C603 |
| 12 |
VH440 (BU-BN) |
22 |
14401 - with Single Zone |
| 12 |
VH441 (WH-BN) |
22 |
14401 - with Dual Zone |
| 13 |
* (RD-YE) |
* |
19C603 |
| 13 |
CH238 (YE-OG) |
22 |
14401 - with Dual Zone |
| 14 |
* (WH) |
* |
19C603 |
| 14 |
CH239 (BU-WH) |
22 |
14401 - with Dual Zone |
| 15 |
* (YE) |
* |
19C603 |
| 15 |
VH440 (BU-BN) |
22 |
14401 - with Dual Zone |
| 16 |
* |
* |
|
