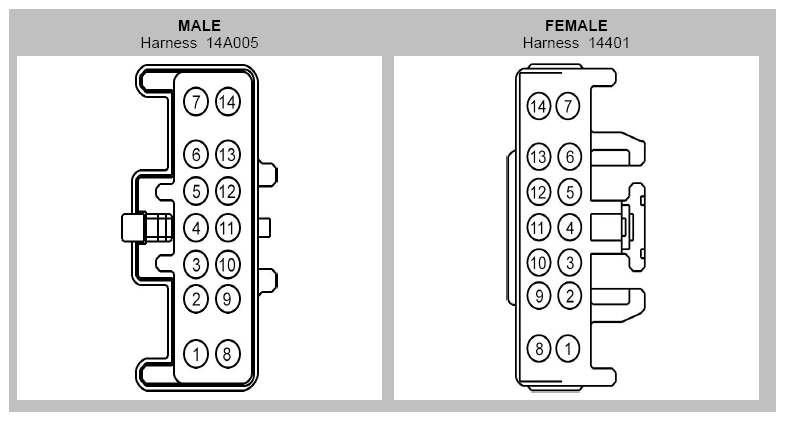

Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDB06 (GY-OG) |
20 |
14A005 |
| 1 |
VDB06 (GY-OG) |
22 |
14401 |
| 2 |
RME06 (GY-YE) |
18 |
|
| 3 |
VME06 (GN) |
18 |
|
| 4 |
DME22 (*) |
20 |
MKX w/o THX |
| 5 |
RME22 (GN-WH) |
22 |
MKX w/o THX |
| 6 |
VME22 (VT-GN) |
22 |
MKX w/o THX |
| 7 |
VPK40 (WH-OG) |
22 |
with IA |
| 8 |
VDB07 (VT-OG) |
20 |
14A005 |
| 8 |
VDB07 (VT-OG) |
22 |
14401 |
| 9 |
VME10 (WH-VT) |
18 |
|
| 10 |
RME10 (WH-OG) |
18 |
|
| 11 |
VME12 (BN-WH) |
18 |
|
| 12 |
RME12 (BN-BU) |
18 |
|
| 13 |
VDB05 (WH) |
20 |
14A005 |
| 13 |
VDB05 (WH) |
22 |
14401 |
| 14 |
VDB04 (WH-BU) |
20 |
14A005 |
| 14 |
VDB04 (WH-BU) |
22 |
14401 |
