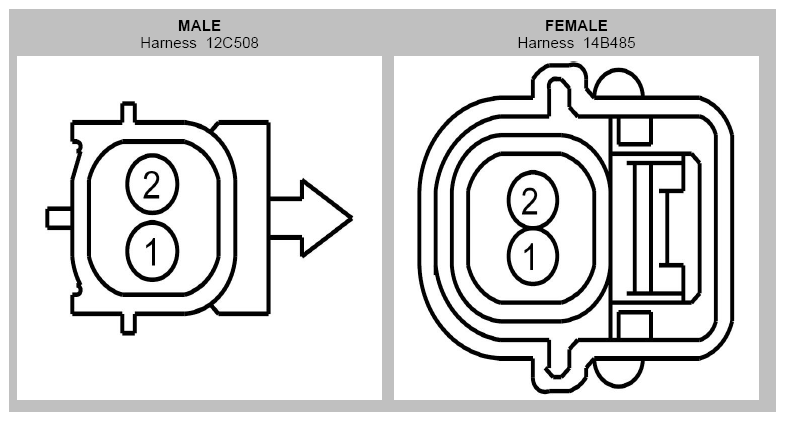

Inline Connector End View (C192)

Fig 1: Identifying Inline Connector (C192)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	VE712 (BU-GY)	20
2	RE405 (GN-WH)	20

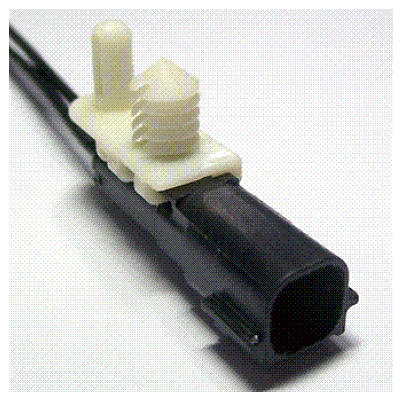

Available Pigtail Kits
Pigtail Kit Part Number WPT-1104	Service Part Number: AU2Z-14S411-ANA Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Sensor - Liftgate Obstacle
