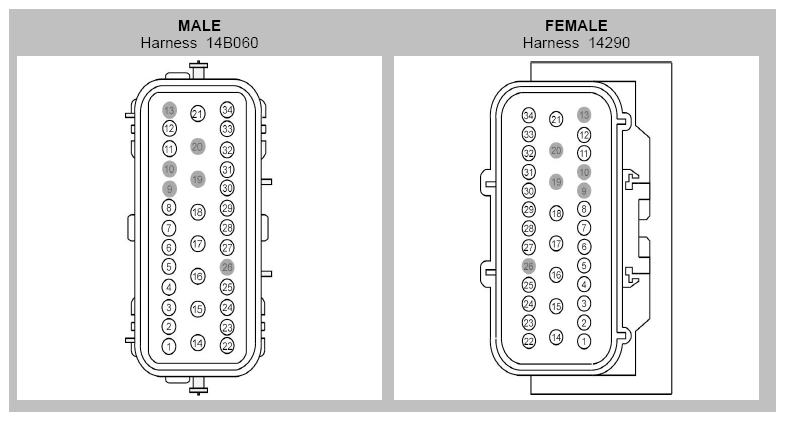

Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CET34 (BN-GN) |
20 |
14290 - 2.0L GTDI |
| 1 |
CET34 (BN-GN) |
20 |
14B060 - 2.0L GTDI |
| 2 |
CBB92 (GN-WH) |
20 |
|
| 3 |
CBB92 (GN-WH) |
20 |
|
| 4 |
SBB56 (VT-RD) |
18 |
14290 - 2.0L GTDI |
| 4 |
SBB56 (VT-RD) |
18 |
14B060 - 2.0L GTDI |
| 5 |
SBB58 (YE-RD) |
20 |
|
| 6 |
CBB91 (BN) |
20 |
2.0L GTDI |
| 7 |
CDC15 (VT) |
20 |
|
| 8 |
CDC10 (BU-OG) |
20 |
|
| 9 |
* |
* |
|
| 10 |
* |
* |
|
| 11 |
CE234 (BU-WH) |
18 |
3.5L/3.7L TIVCT |
| 12 |
VE733 (WH) |
18 |
3.5L/3.7L TIVCT |
| 13 |
* |
* |
|
| 14 |
SBB43 (BU-RD) |
16 |
|
| 15 |
SBB43 (BU-RD) |
16 |
|
| 16 |
SBB05 (GY-RD) |
12 |
|
| 17 |
CDC25 (BN-GN) |
14 |
|
| 18 |
SBB05 (GY-RD) |
12 |
|
| 19 |
* |
* |
|
| 20 |
* |
* |
|
| 21 |
GD121 (BK-YE) |
10 |
14290 |
| 21 |
GD121 (BK-YE) |
16 |
14B060 |
| 22 |
VE731 (YE-GN) |
18 |
3.5L/3.7L TIVCT |
| 23 |
CBB90 (YE-OG) |
20 |
2.0L GTDI |
| 24 |
VDB04 (WH-BU) |
20 |
14290 |
| 24 |
VDB04 (WH-BU) |
20 |
14B060 - 2.0L GTDI |
| 25 |
VDB05 (WH) |
20 |
14290 |
| 25 |
VDB05 (WH) |
20 |
14B060 - 2.0L GTDI |
| 26 |
* |
* |
|
| 27 |
CBB70 (YE-BU) |
20 |
2.0L GTDI |
| 28 |
CE233 (WH-OG) |
18 |
3.5L/3.7L TIVCT |
| 29 |
CET40 (GN-OG) |
20 |
2.0L GTDI |
| 30 |
CH401 (VT-WH) |
20 |
|
| 31 |
VE462 (WH-BN) |
20 |
2.0L GTDI |
| 32 |
GD120 (BK-GN) |
16 |
2.0L GTDI |
| 33 |
GD120 (BK-GN) |
20 |
2.0L GTDI |
| 34 |
CET45 (YE-BU) |
20 |
2.0L GTDI |
