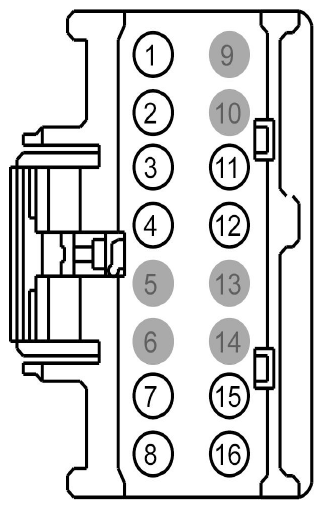

Dual Climate Controlled Seat Module (DCSM) Connector End View (C3036C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 2 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 3 | VHS23 (BN-BU) | 22 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL | |
| 4 | VHS21 (BU-WH) | 22 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | RHS08 (VT-WH) | 22 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN | |
| 8 | CHS08 (BN-YE) | 22 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | VHS18 (BN-GN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL | |
| 12 | VHS16 (BU-GN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK BLOWER SPEED CONTROL | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RHS03 (GY-OG) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN | |
| 16 | CHS03 (GN-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN |

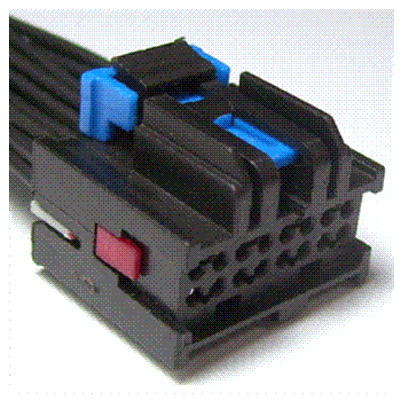

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1165 | Service Part Number: AU2Z-14S411-BGA Gauge: 20 Pin material: Tin Cavities: 16 Vehicle Uses
|
