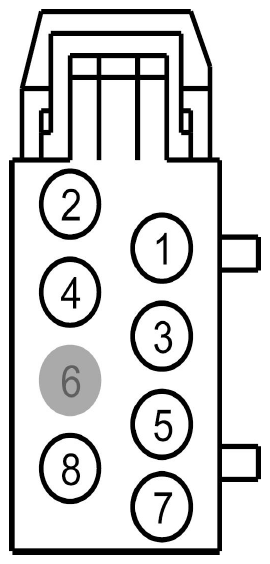

Climate Controlled Seat Cushion Module, Driver Side Connector End View (C3327)

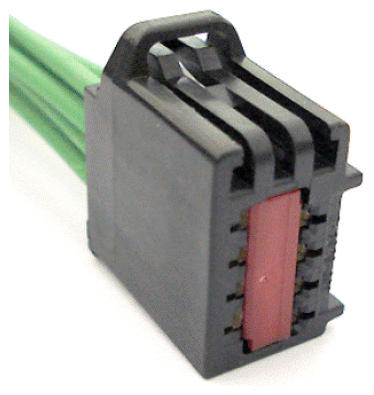

Fig 1: Identifying Climate Controlled Seat Cushion Module, Driver Side Connector (C3327)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS02 (YE-BU)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER
2	CHS03 (GN-BN)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN
3	RHS02 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER
4	RHS03 (GY-OG)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN
5	VHS26 (VT)	22	SENSOR - CUSHION TEMP. DRIVER
6	*	*	Not Used
7	VHS18 (BN-GN)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL
8	RHS05 (YE-VT)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.

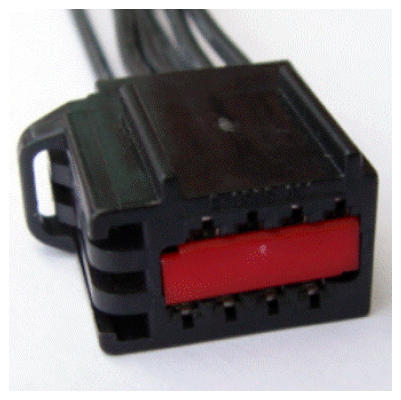

Available Pigtail Kits
Pigtail Kit Part Number WPT-961	Service Part Number: 3U2Z-14S411-RHB  Gauge: 14  Pin material: Silver  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat
Pigtail Kit Part Number WPT-500	Service Part Number: 3U2Z-14S411-RHA  Gauge: 16  Pin material: Tin  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Mirror - Sideview Module - Heated Seat (driver) Switch - Heated Seat Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Multifunction
