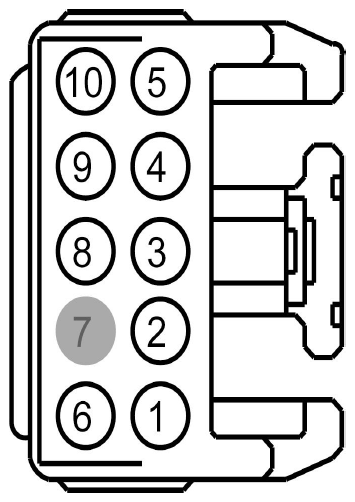

Brake Shift Interlock Connector End View (C3245)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | without IA |
| 2 | CET52 (GN) | 22 | SWITCH - TRANSMISSION PARK DETECT | |
| 3 | CET53 (BU-OG) | 22 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | |
| 4 | GD133 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 5 | CET34 (BN-GN) | 22 | SWITCH - TRANSMISSION CONTROL/OVERDRIVE CANCEL (TCS) | 2.0L GTDI |
| 6 | CBP42 (GN) | 22 | FUSE - 42 OR CIRCUIT BREAKER | 2.0L GTDI |
| 7 | * | * | Not Used | |
| 8 | RE407 (YE-VT) | 22 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 3.5L/3.7L TiVCT |
| 9 | CET43 (GY) | 22 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | 3.5L/3.7L TiVCT |
| 10 | CET42 (GN-VT) | 22 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | 3.5L/3.7L TiVCT |

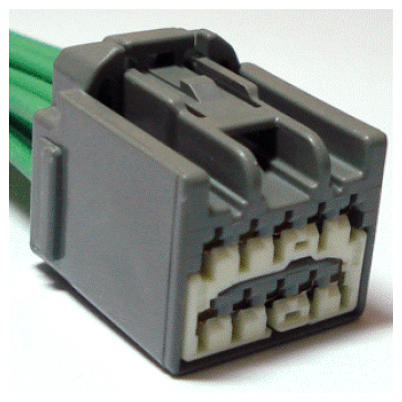

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1037 | Service Part Number: 1U2Z-14S411-BLB Gauge: 14 Pin material: Silver Cavities: 10 Vehicle Uses
|
