Audio Input Jack Connector End View (C3312)

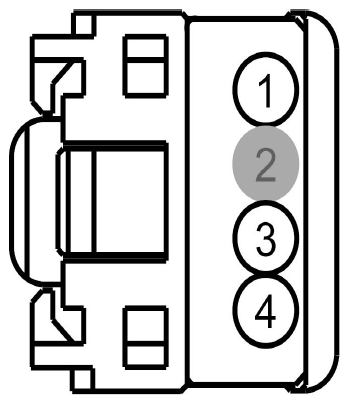

Fig 1: Identifying Audio Input Jack Connector (C3312)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME46 (BU-GN)	22	JACK - AUDIO # EXT. AUX IN RIGHT (+)
2	*	*	Not Used
3	RME45 (YE-GN)	22	JACK - AUDIO # EXT. AUX IN LEFT (-)
4	VME45 (BU)	22	JACK - AUDIO # EXT. AUX IN LEFT (+)

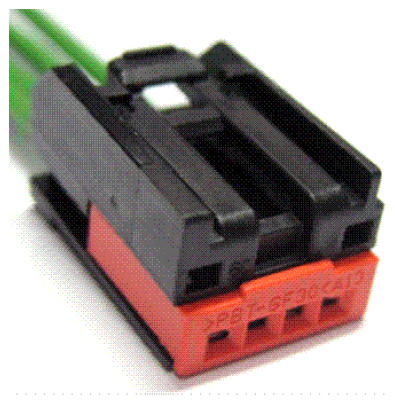

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
