Window Adjust Switches - Edge: Schematic

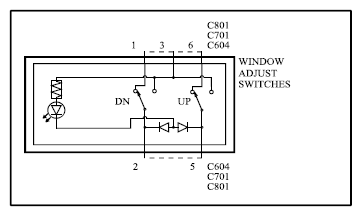

Fig 1: Window Adjust Switches Schematic - Edge

G08727200

Courtesy of FORD MOTOR CO.
