Roof Opening Panel Switch: Schematic

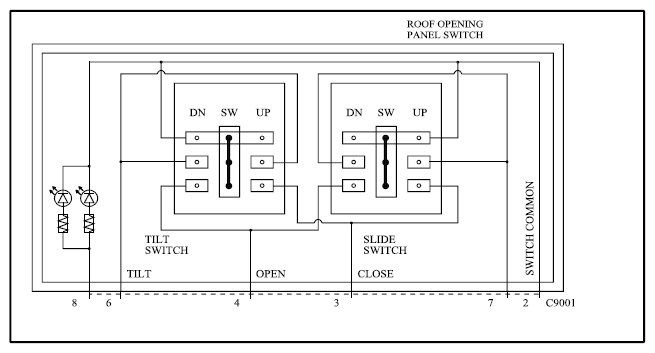

Fig 1: Roof Opening Panel Switch Schematic

G08727216

Courtesy of FORD MOTOR CO.
