Power Seat Switch, Power 10-Way Seat: Schematic

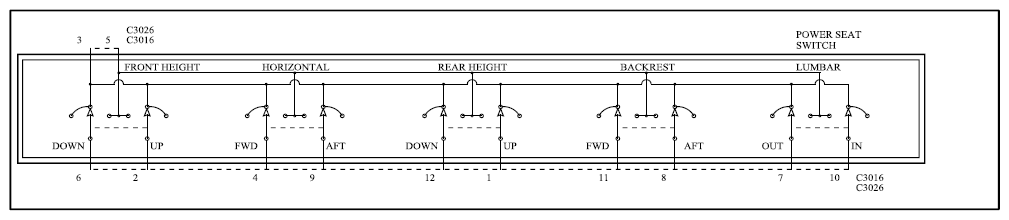

Fig 1: Power Seat Switch Schematic - Power 10-Way Seat

G08727210

Courtesy of FORD MOTOR CO.
