Master Window Adjust Switch - MKX: Schematic

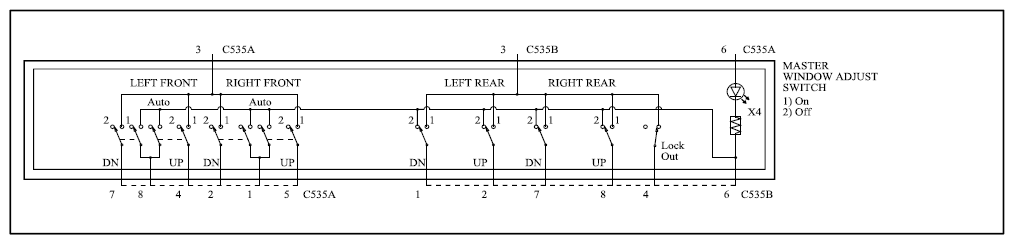

Fig 1: Master Window Adjust Switch Schematic - MKX

G08727202

Courtesy of FORD MOTOR CO.
