Master Window Adjust Switch - Edge: Schematic

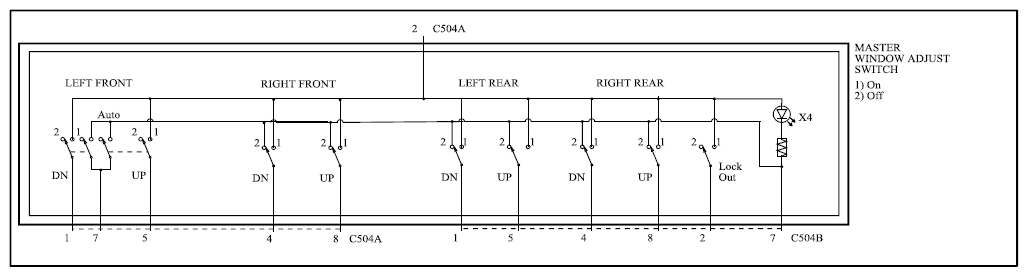

Fig 1: Master Window Adjust Switch Schematic - Edge

G08727198

Courtesy of FORD MOTOR CO.
