Component Location Views

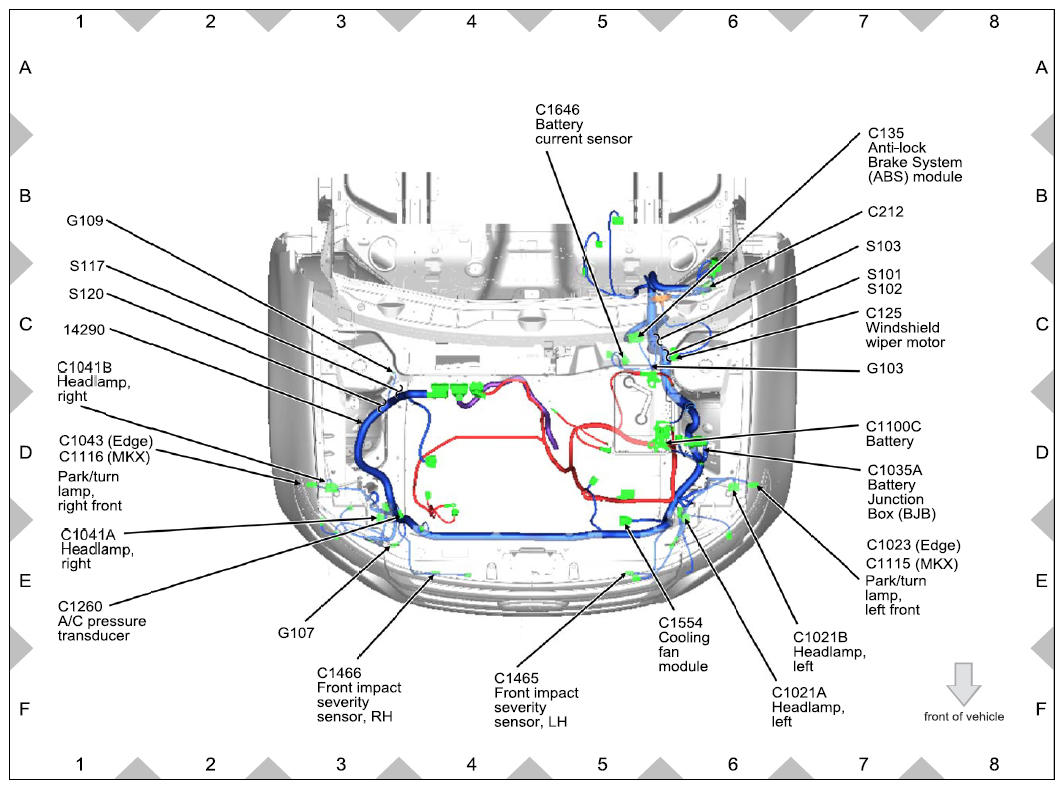

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G08727222

Courtesy of FORD MOTOR CO.

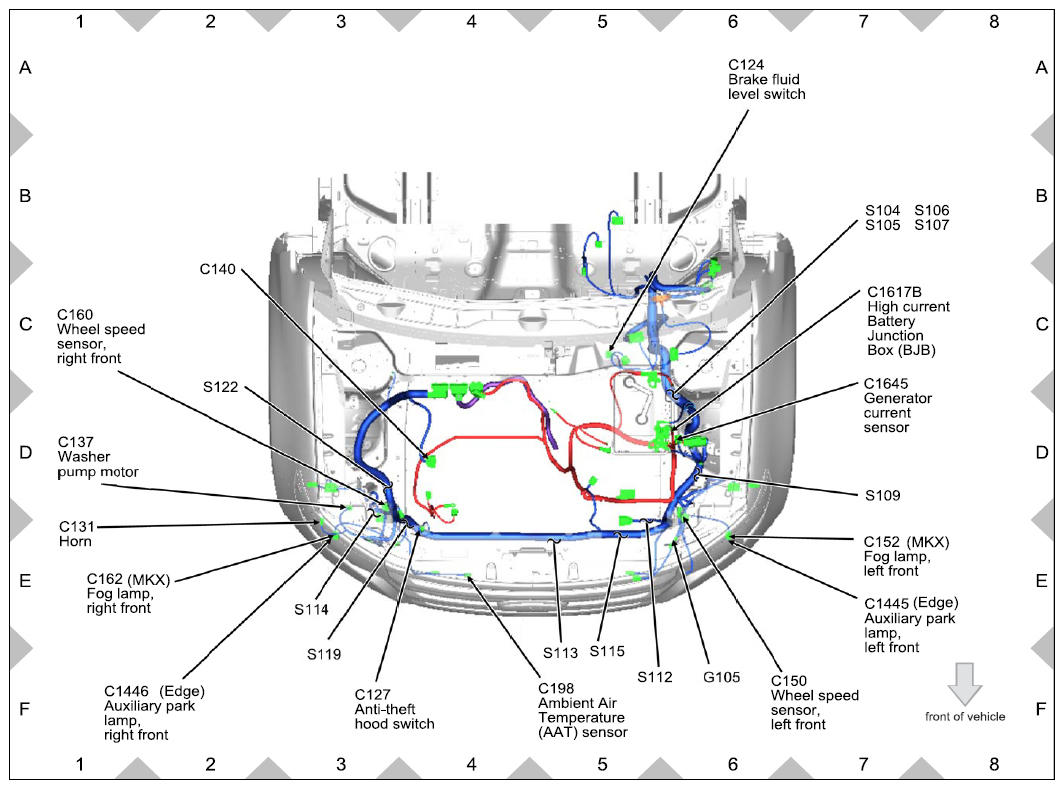

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G08727223

Courtesy of FORD MOTOR CO.

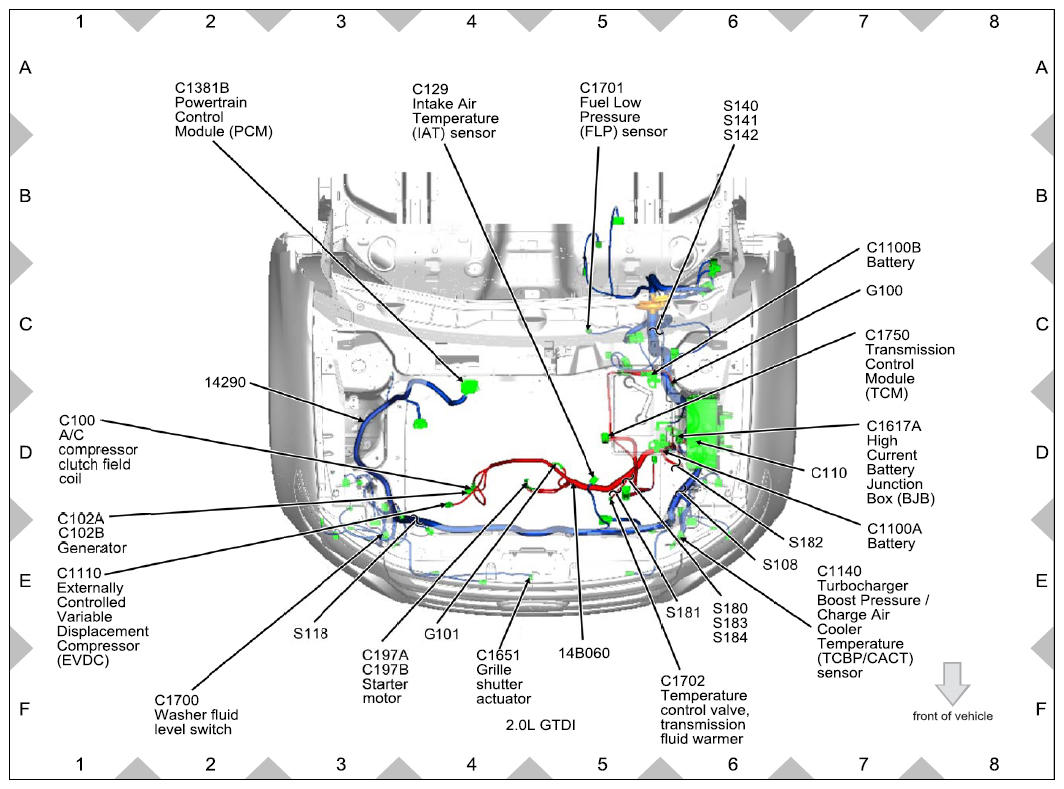

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G08727224

Courtesy of FORD MOTOR CO.

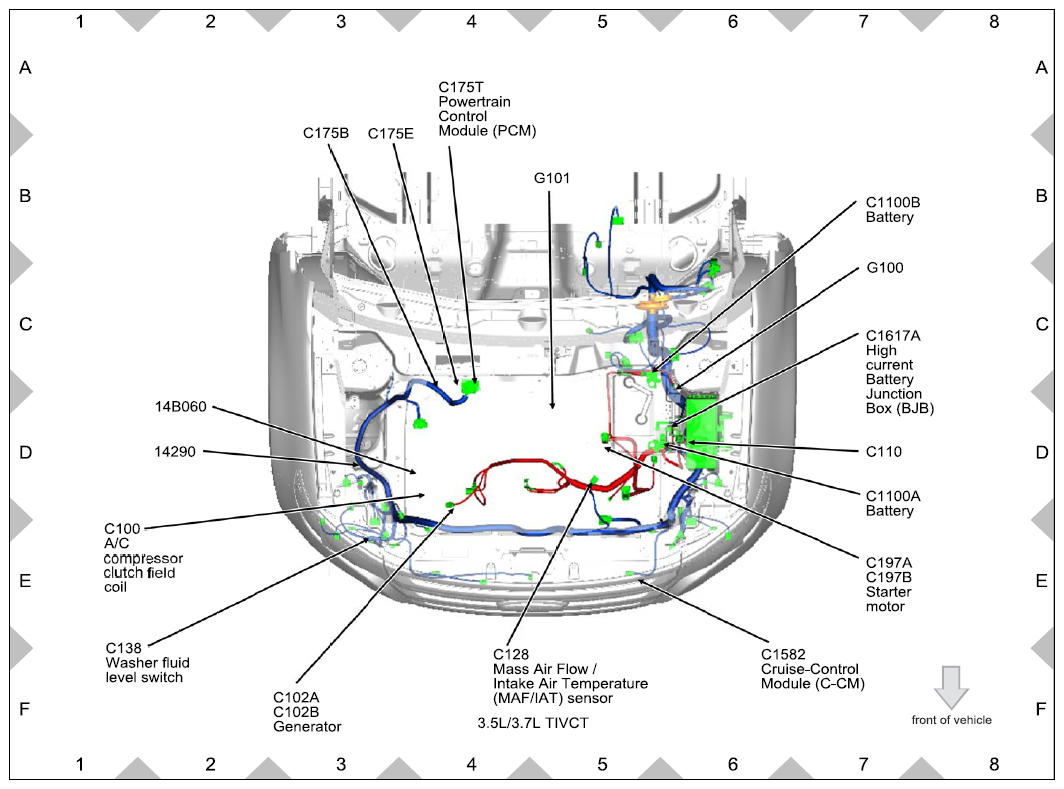

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G08727225

Courtesy of FORD MOTOR CO.

Fig 5: Engine Wiring Harness Connectors Location (1 Of 7)

G08727226

Courtesy of FORD MOTOR CO.

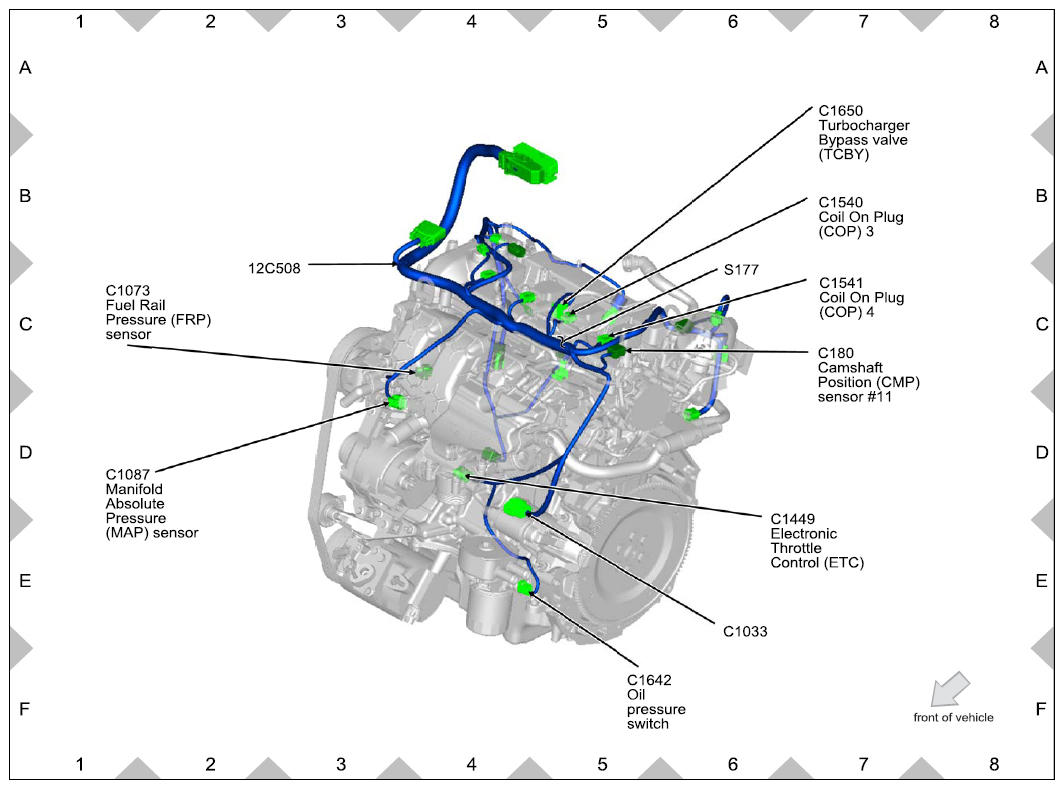

Fig 6: Engine Wiring Harness Connectors Location (2 Of 7)

G08727227

Courtesy of FORD MOTOR CO.

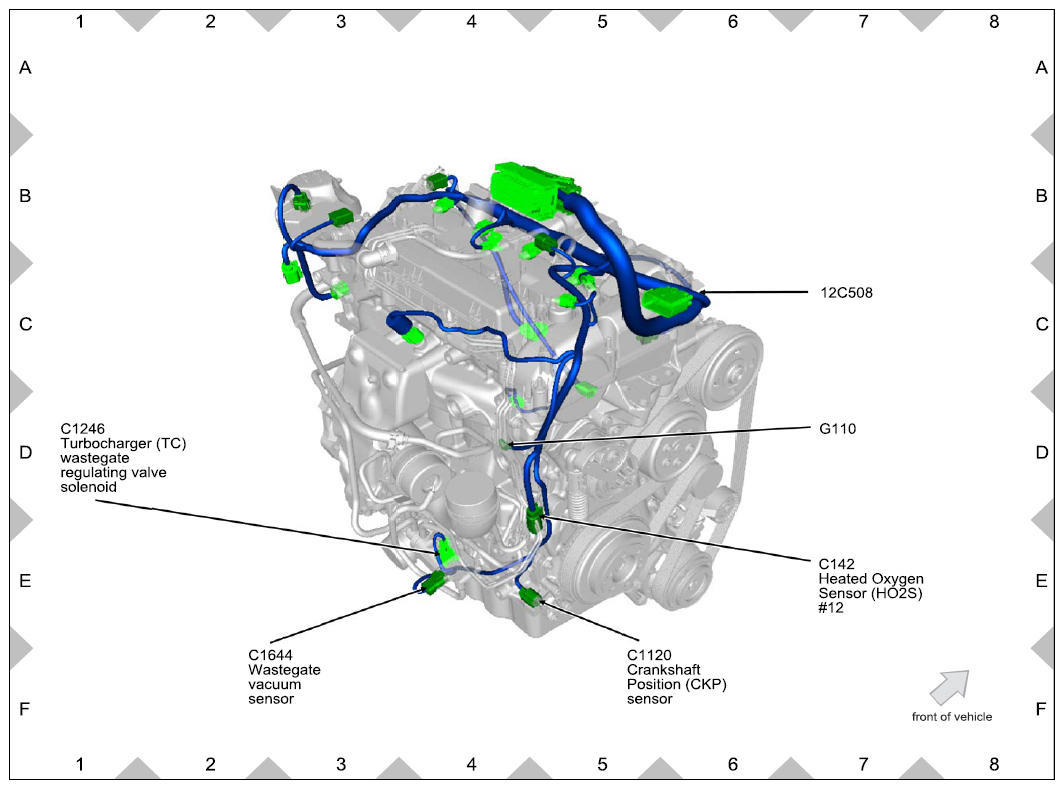

Fig 7: Engine Wiring Harness Connectors Location (3 Of 7)

G08727228

Courtesy of FORD MOTOR CO.

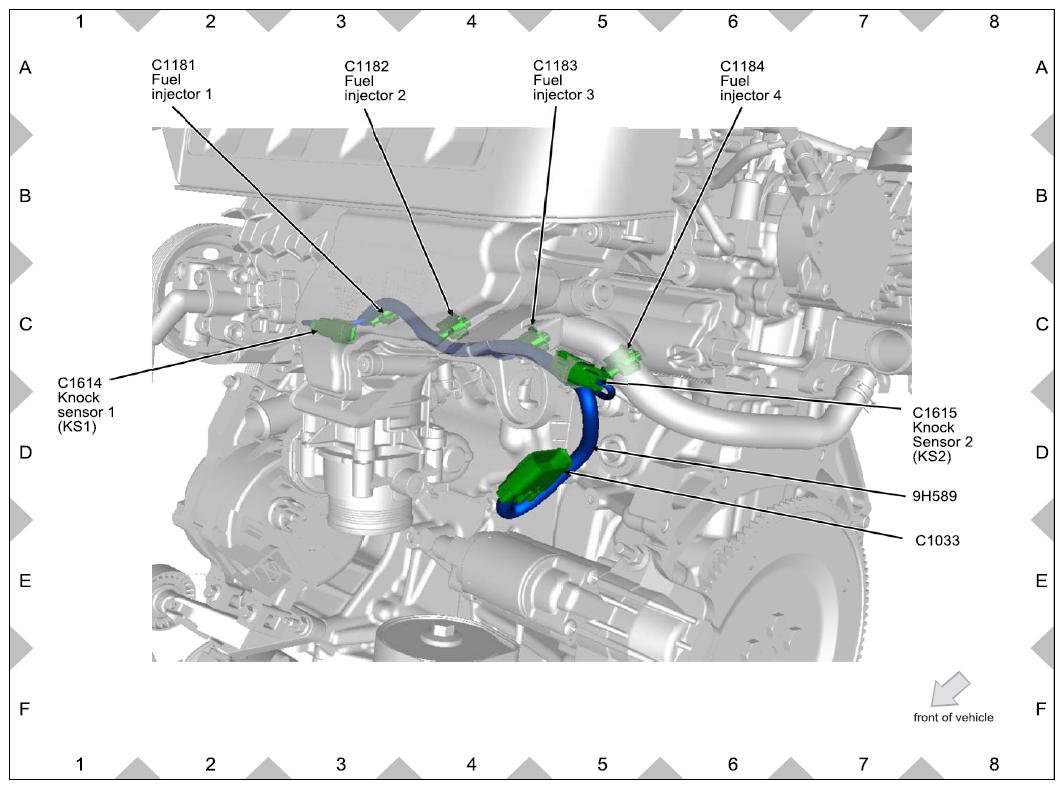

Fig 8: Engine Wiring Harness Connectors Location (4 Of 7)

G08727229

Courtesy of FORD MOTOR CO.

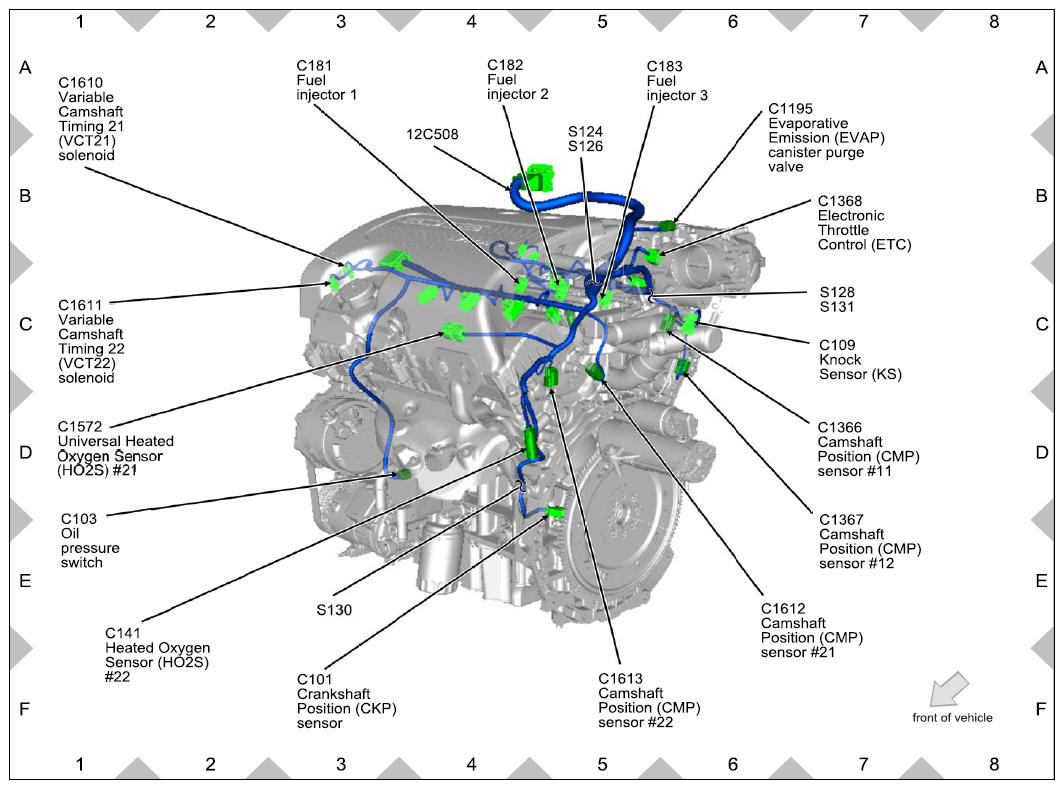

Fig 9: Engine Wiring Harness Connectors Location (5 Of 7)

G08727230

Courtesy of FORD MOTOR CO.

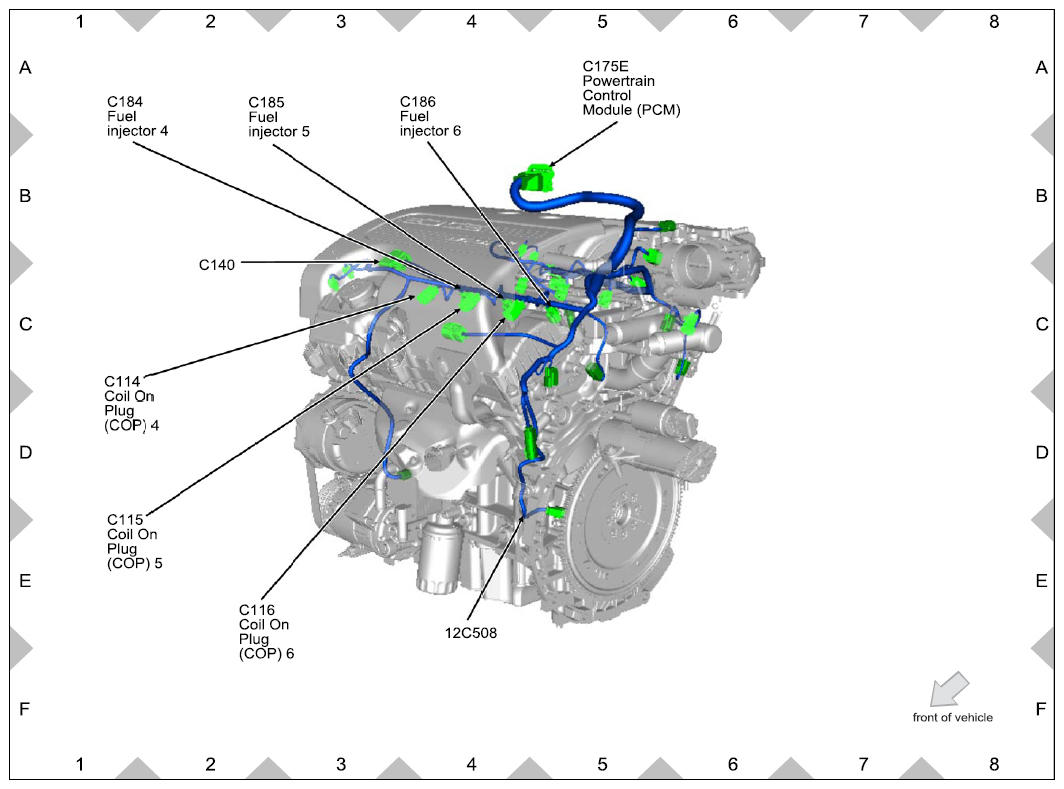

Fig 10: Engine Wiring Harness Connectors Location (6 Of 7)

G08727231

Courtesy of FORD MOTOR CO.

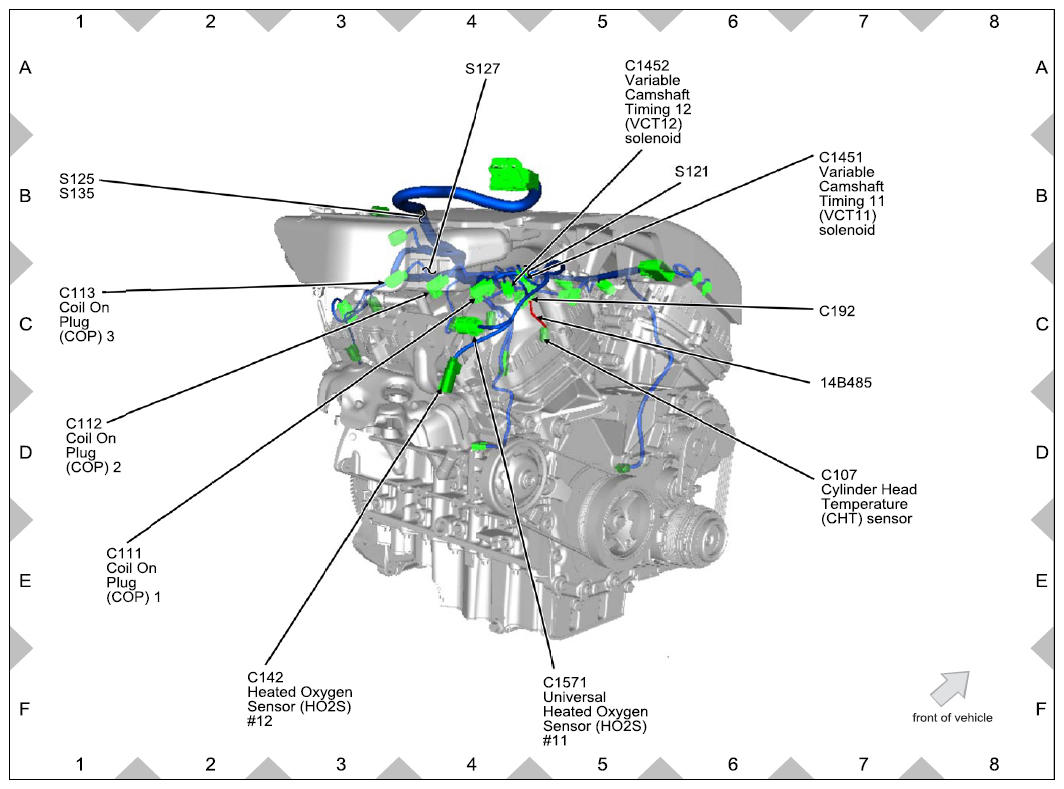

Fig 11: Engine Wiring Harness Connectors Location (7 Of 7)

G08727232

Courtesy of FORD MOTOR CO.

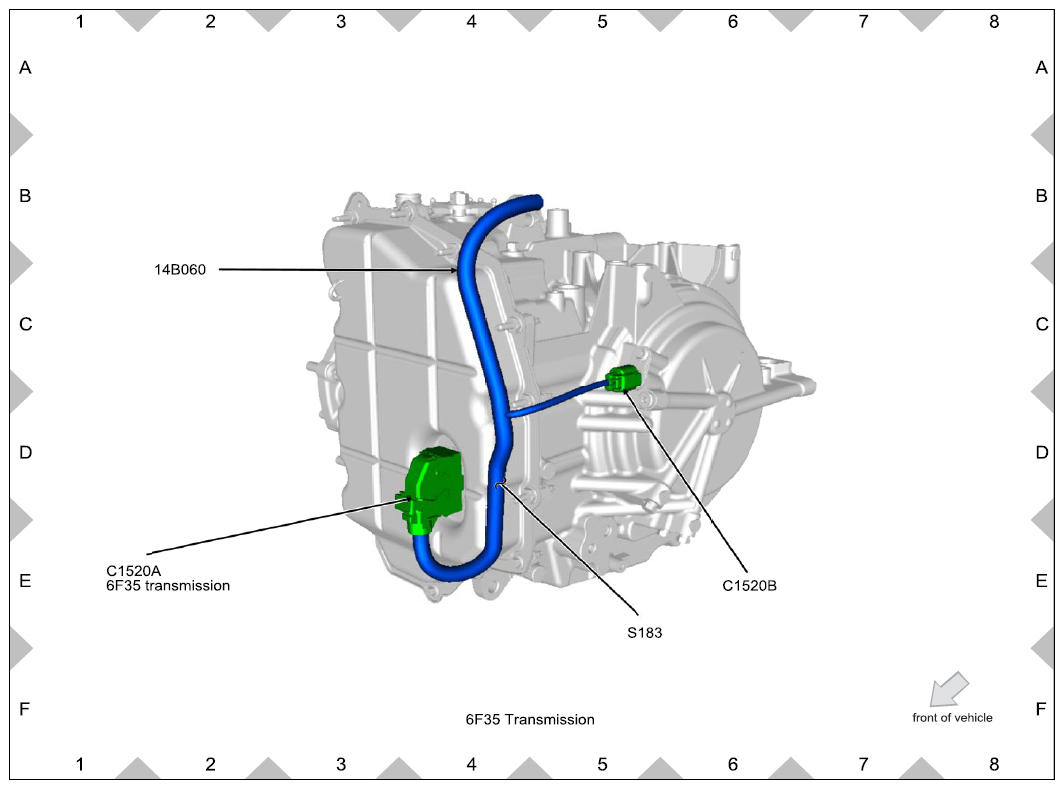

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 2)

G08727233

Courtesy of FORD MOTOR CO.

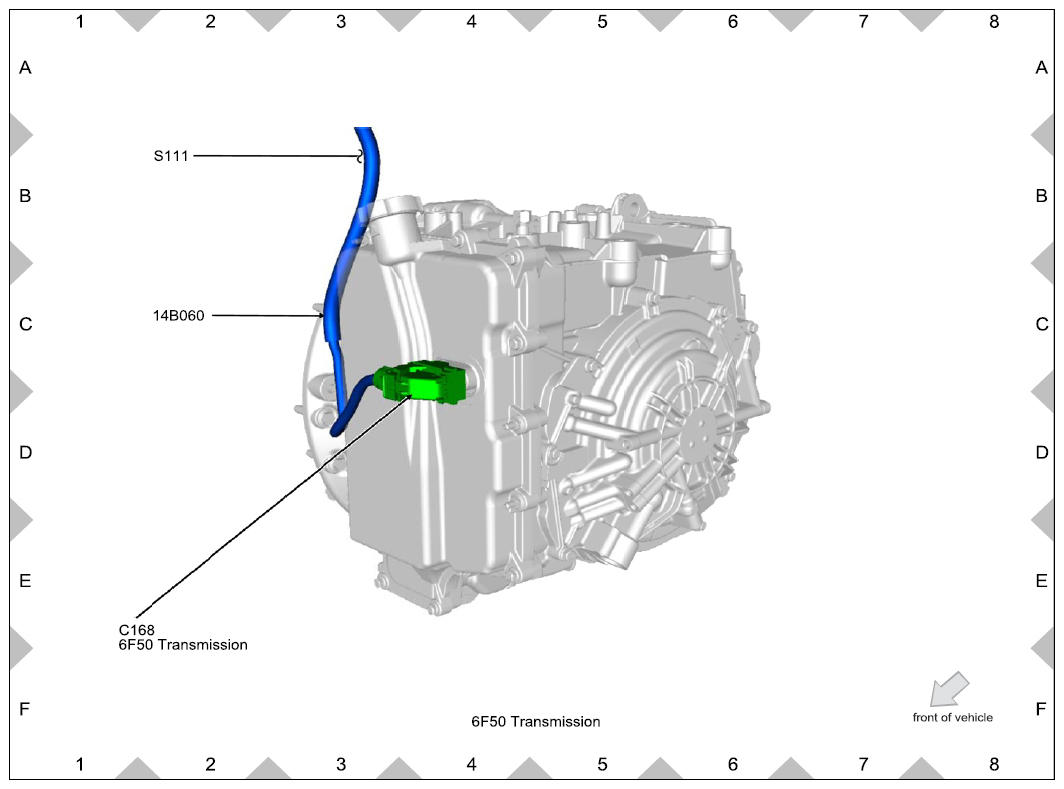

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 2)

G08727234

Courtesy of FORD MOTOR CO.

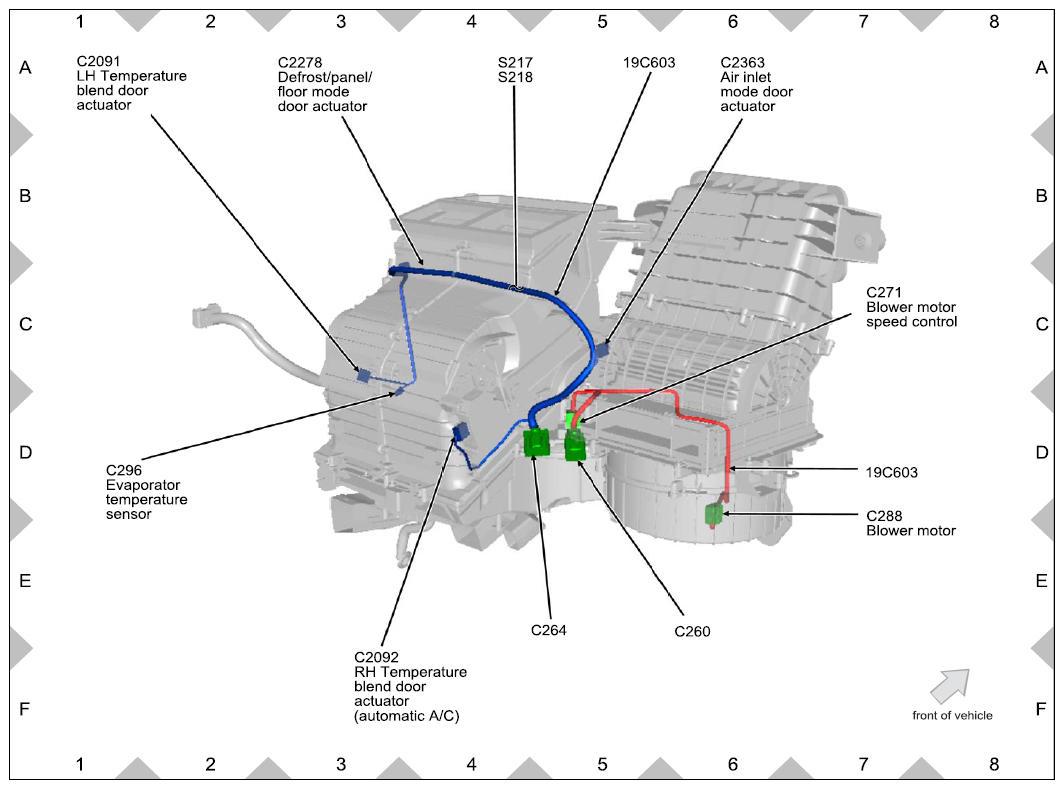

Fig 14: Door Actuator Wiring Harness Connectors Location

G08727235

Courtesy of FORD MOTOR CO.

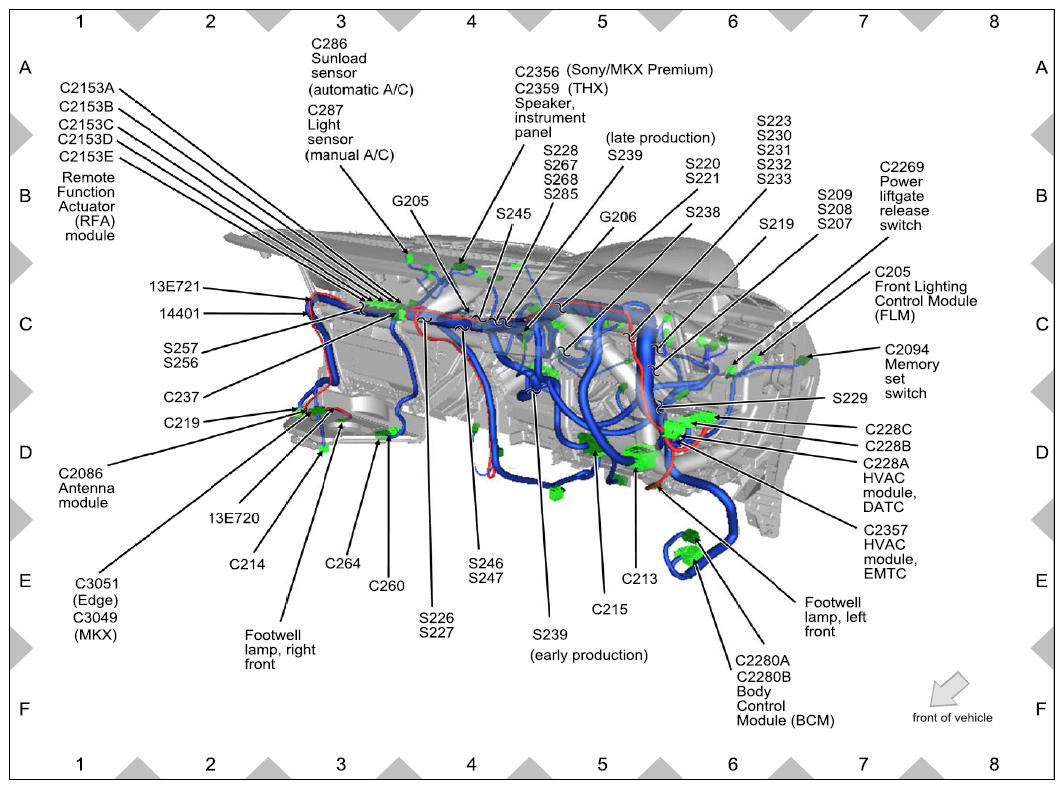

Fig 15: Dash Board Wiring Harness Connectors Location - Back Side

G08727236

Courtesy of FORD MOTOR CO.

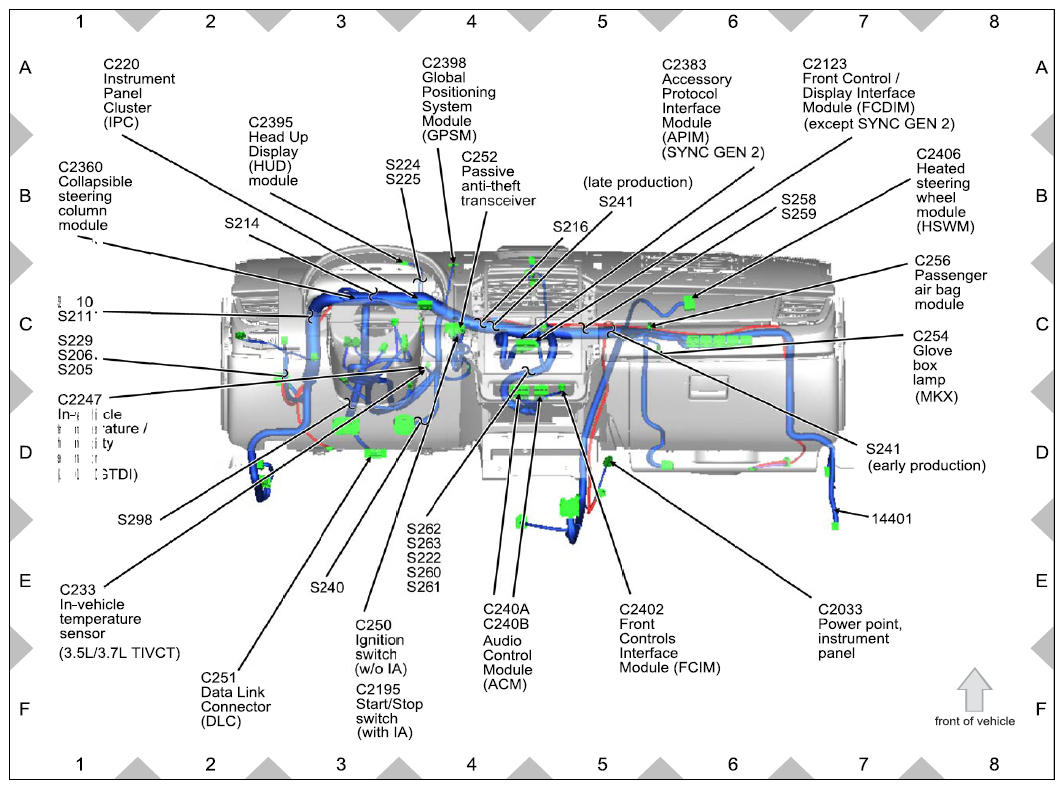

Fig 16: Dash Board Wiring Harness Connectors Location - Front Side

G08727237

Courtesy of FORD MOTOR CO.

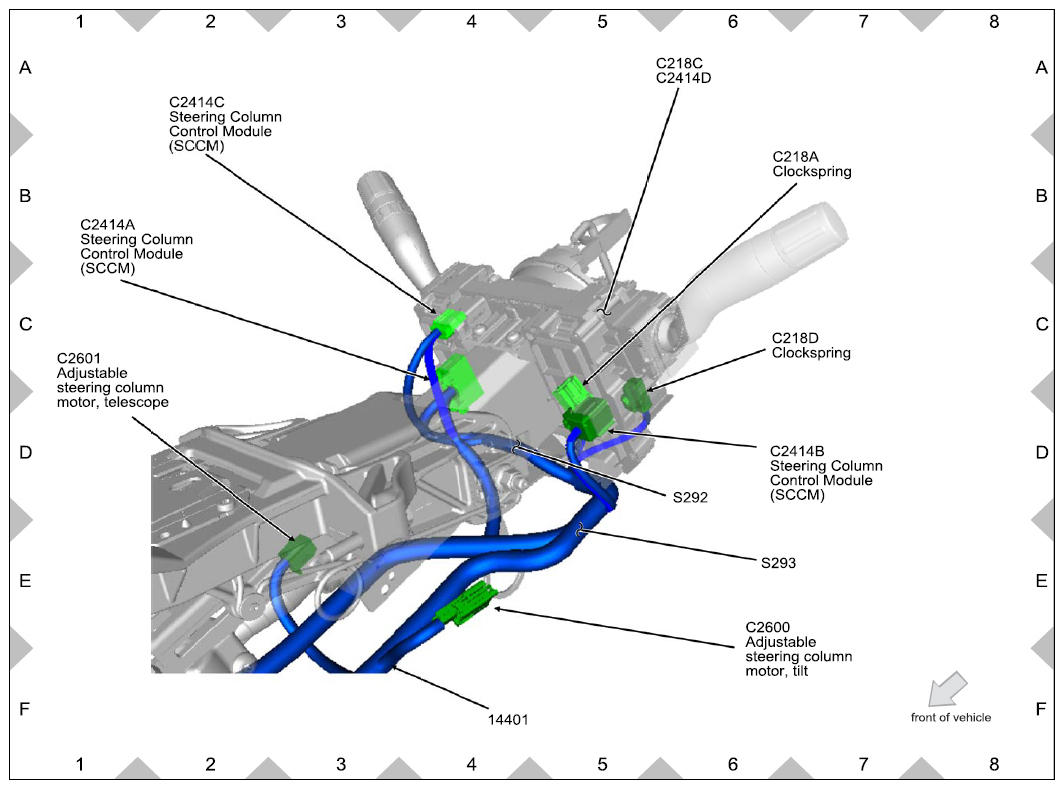

Fig 17: Steering Column Control Module Wiring Harness Connectors Location

G08727238

Courtesy of FORD MOTOR CO.

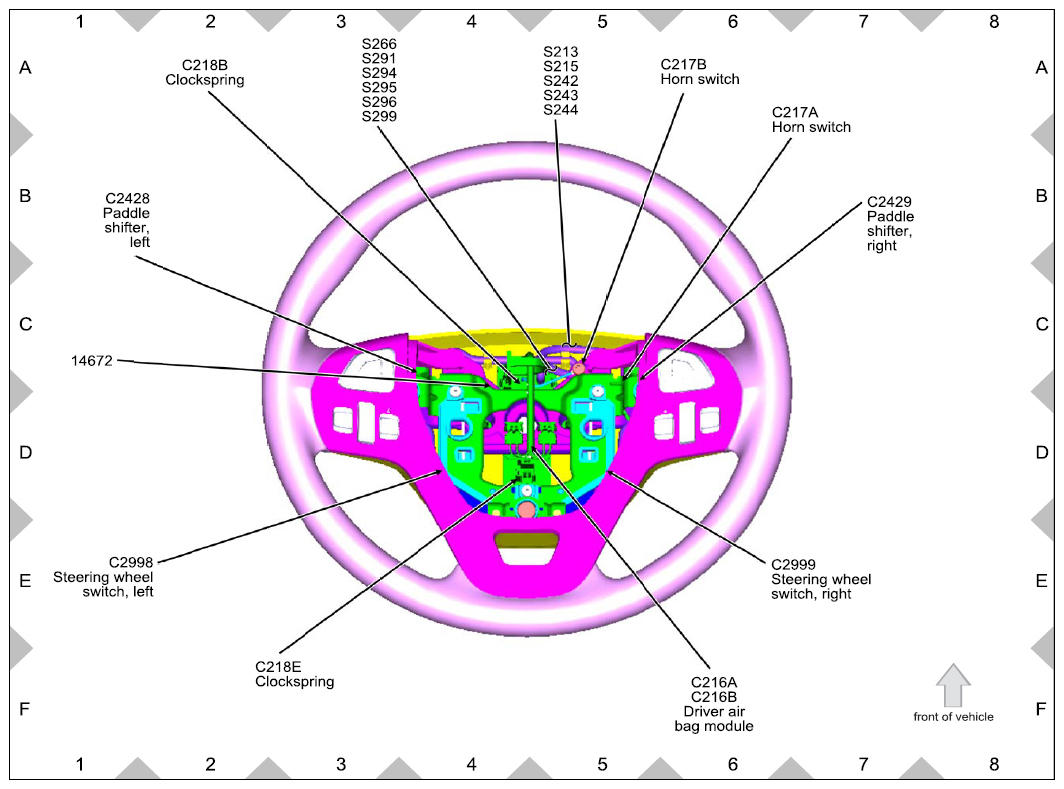

Fig 18: Steering Wheel Wiring Harness Connectors Location

G08727239

Courtesy of FORD MOTOR CO.

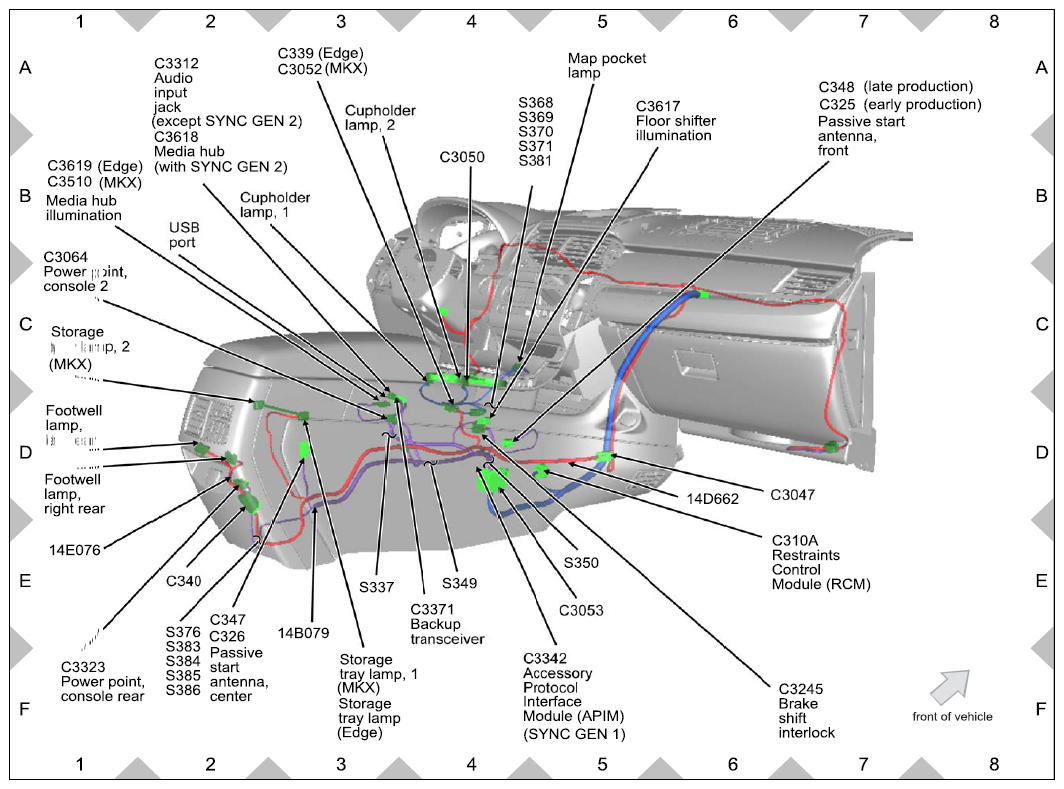

Fig 19: Center Console Wiring Harness Connectors Location

G08727240

Courtesy of FORD MOTOR CO.

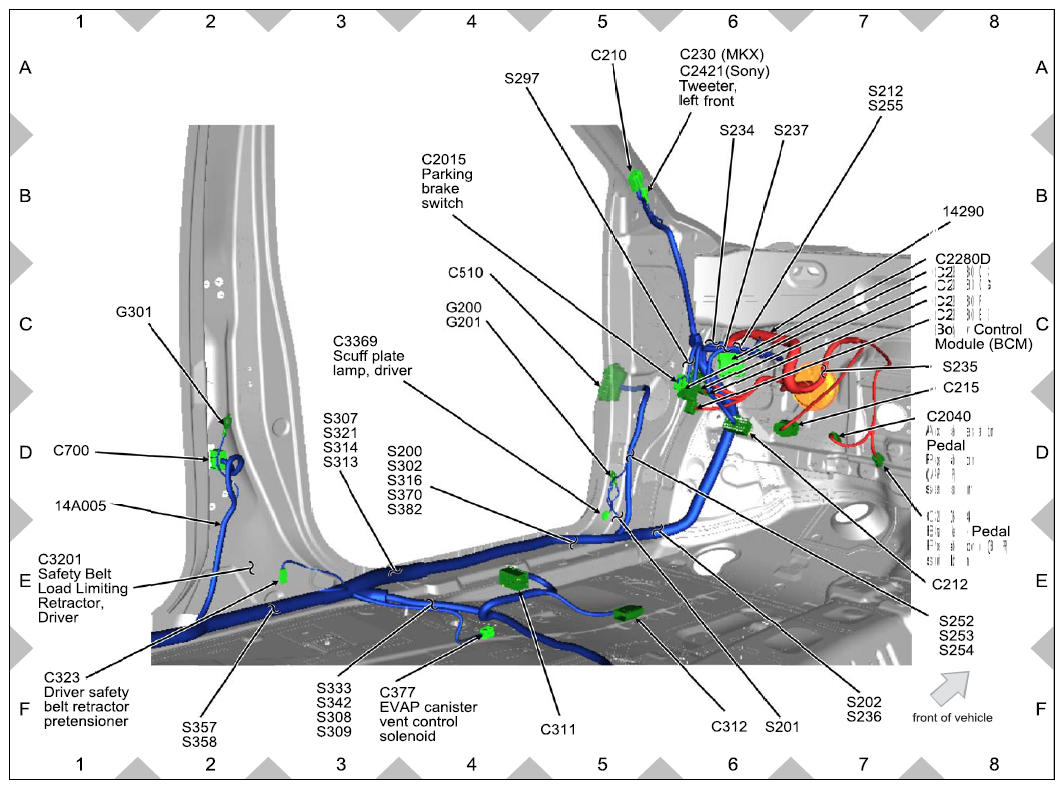

Fig 20: LH Front Compartment Wiring Harness Connectors Location

G08727241

Courtesy of FORD MOTOR CO.

Fig 21: RH Front Compartment Wiring Harness Connectors Location

G08727242

Courtesy of FORD MOTOR CO.

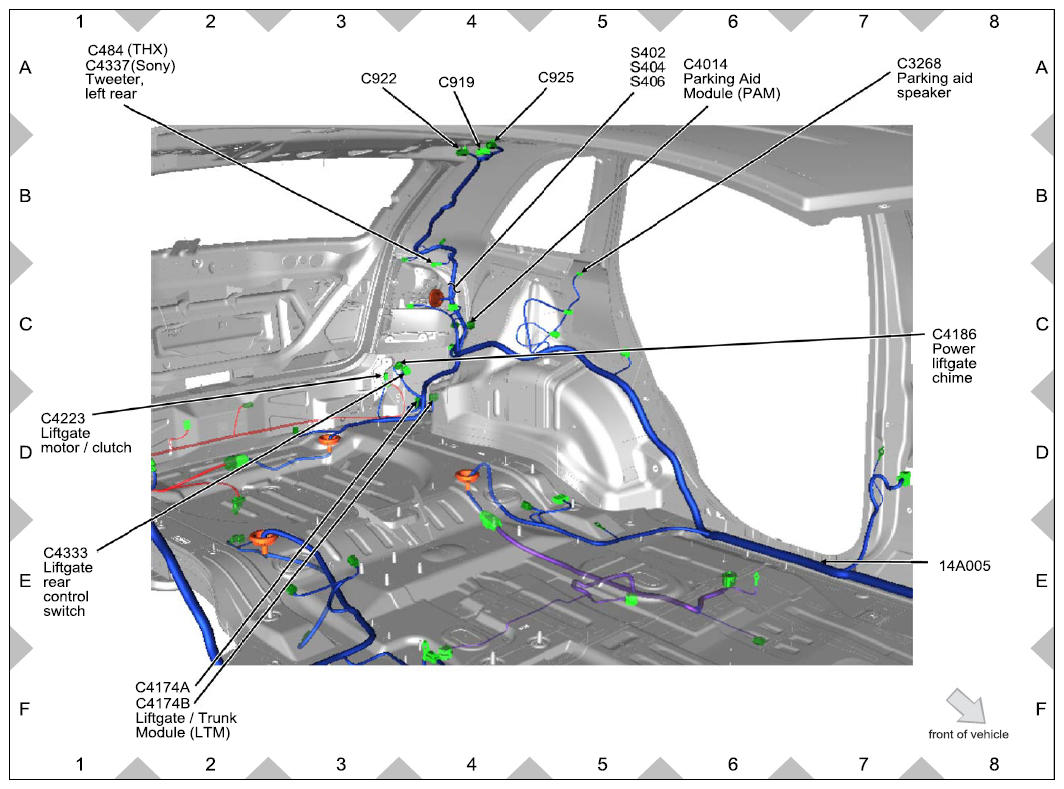

Fig 22: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G08727243

Courtesy of FORD MOTOR CO.

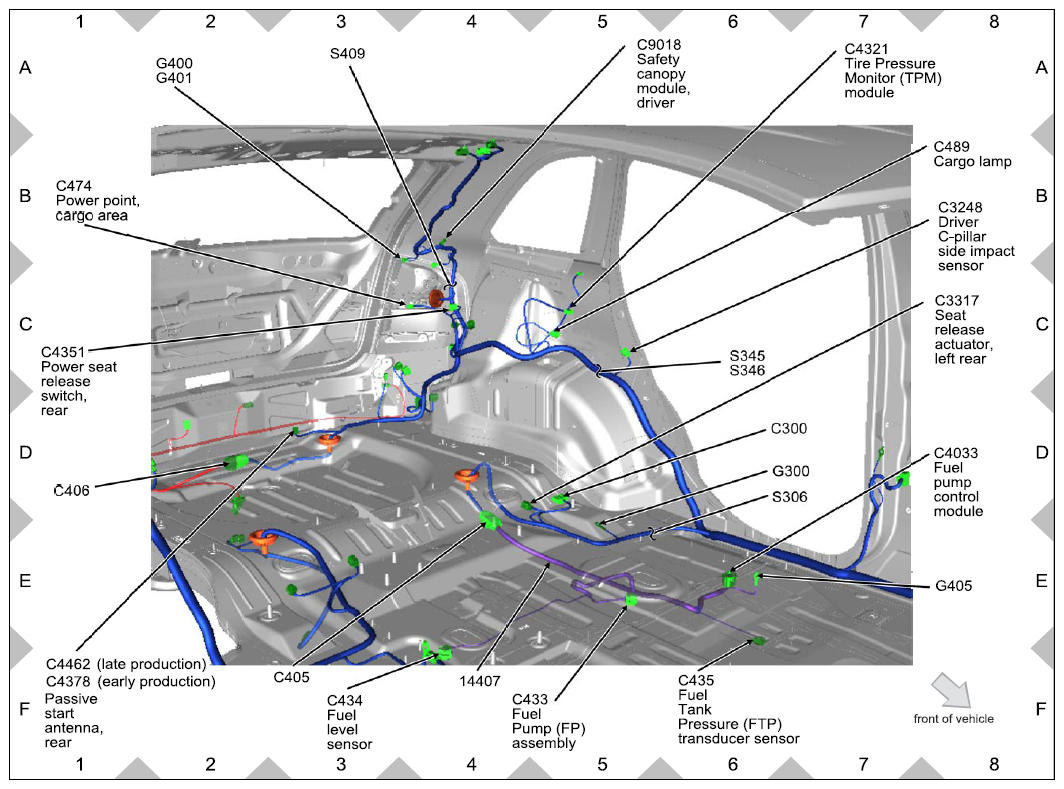

Fig 23: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G08727244

Courtesy of FORD MOTOR CO.

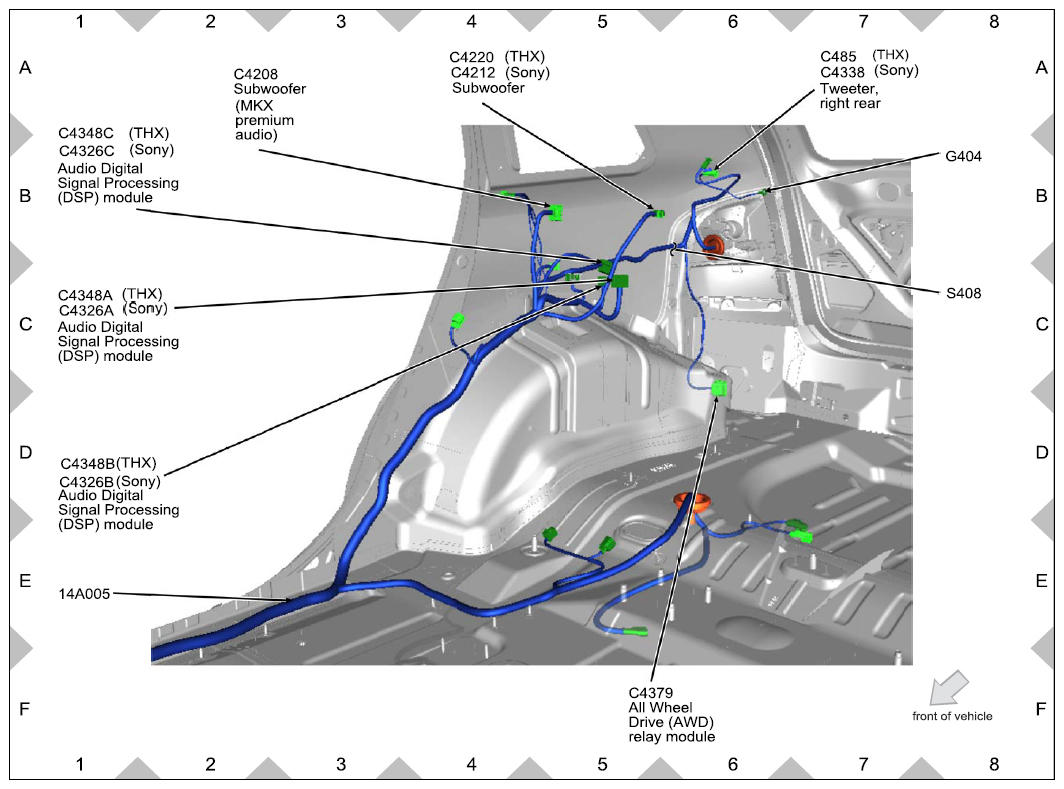

Fig 24: RH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G08727245

Courtesy of FORD MOTOR CO.

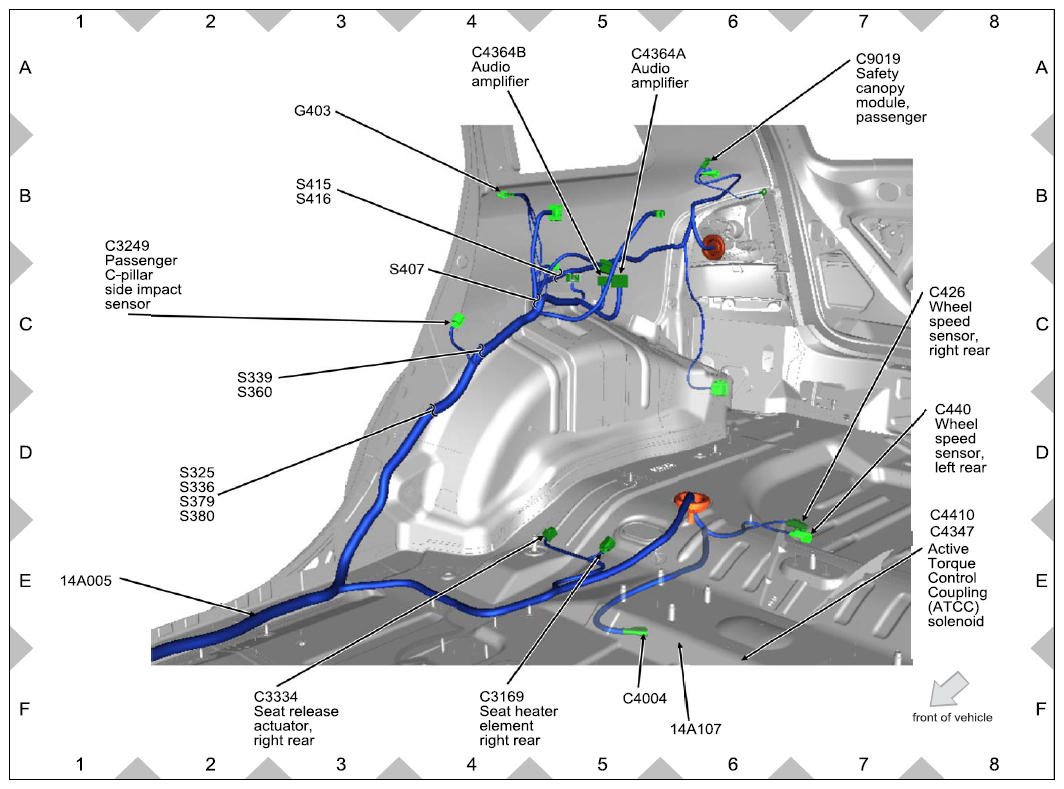

Fig 25: RH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G08727246

Courtesy of FORD MOTOR CO.

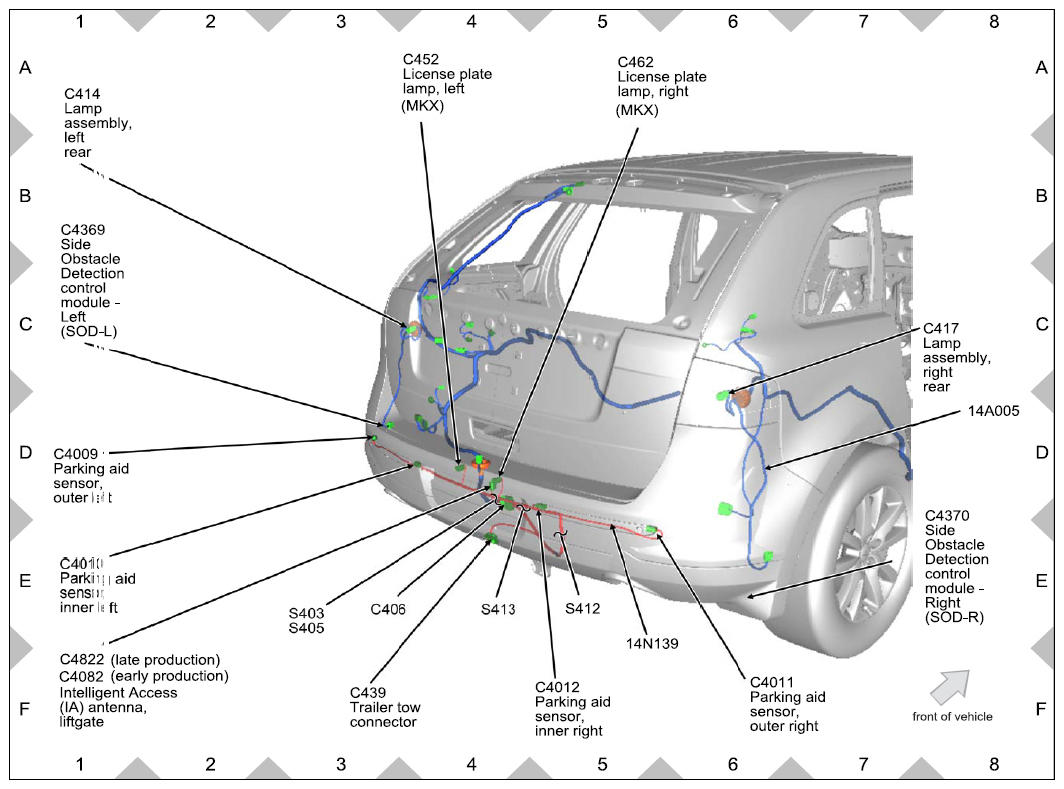

Fig 26: Liftgate Wiring Harness Connectors Location

G08727247

Courtesy of FORD MOTOR CO.

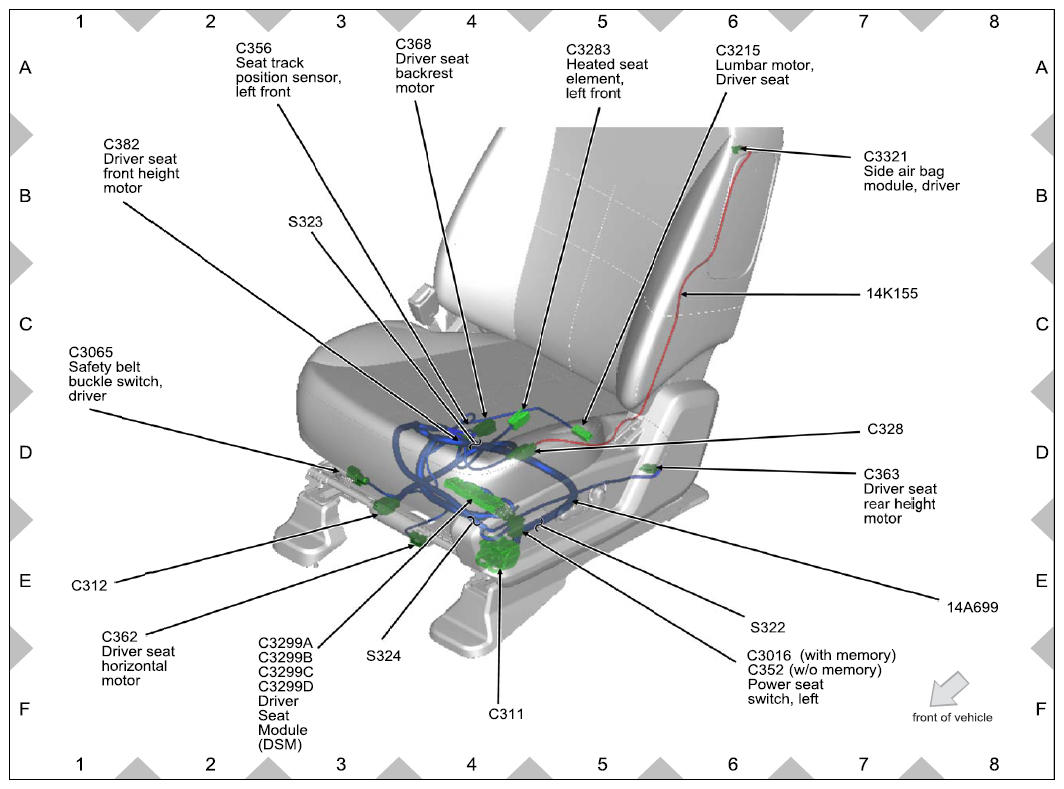

Fig 27: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G08727248

Courtesy of FORD MOTOR CO.

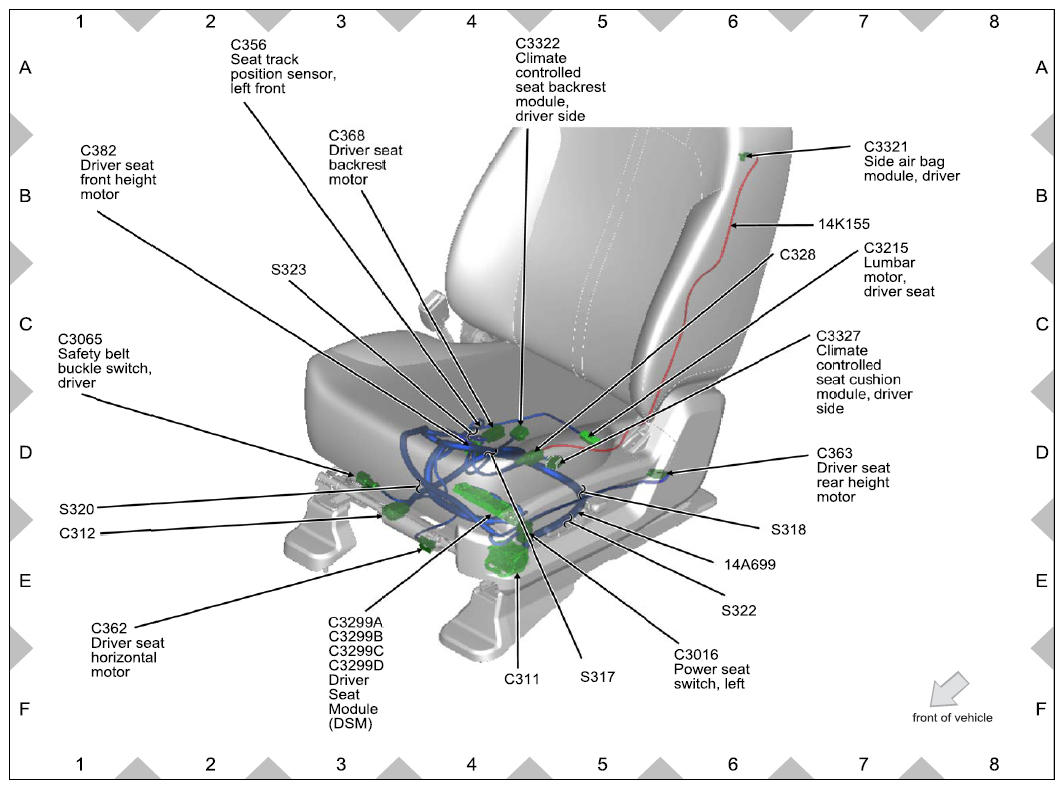

Fig 28: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G08727249

Courtesy of FORD MOTOR CO.

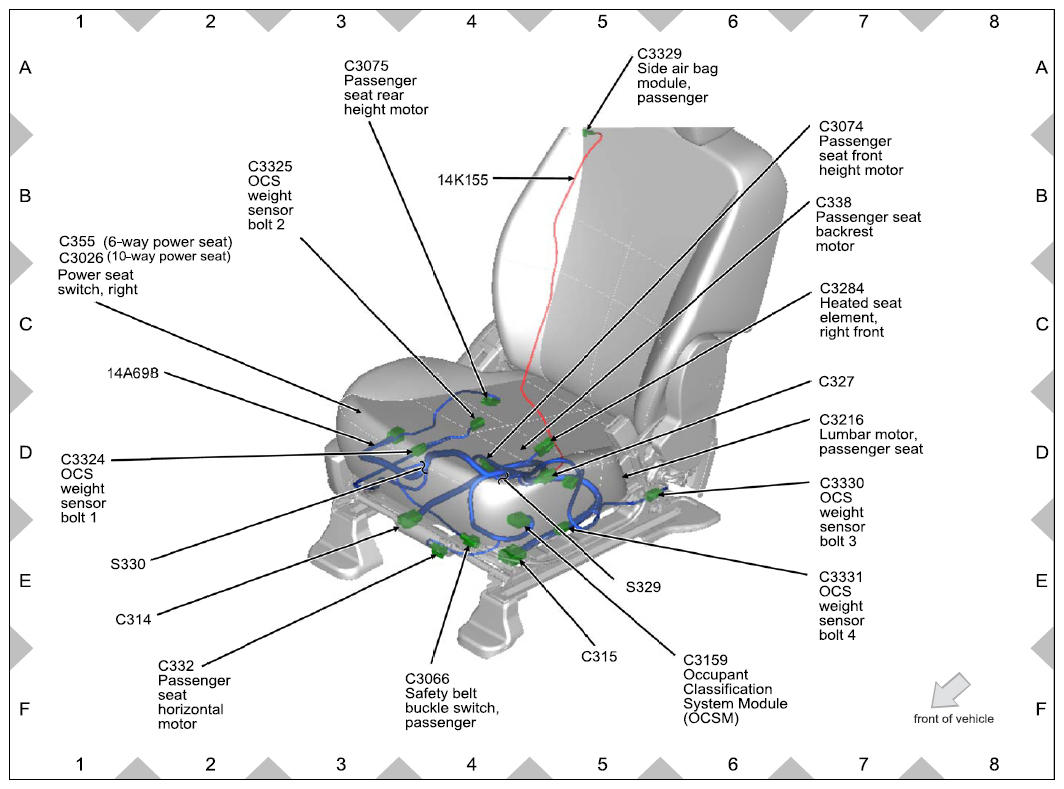

Fig 29: Front Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G08727250

Courtesy of FORD MOTOR CO.

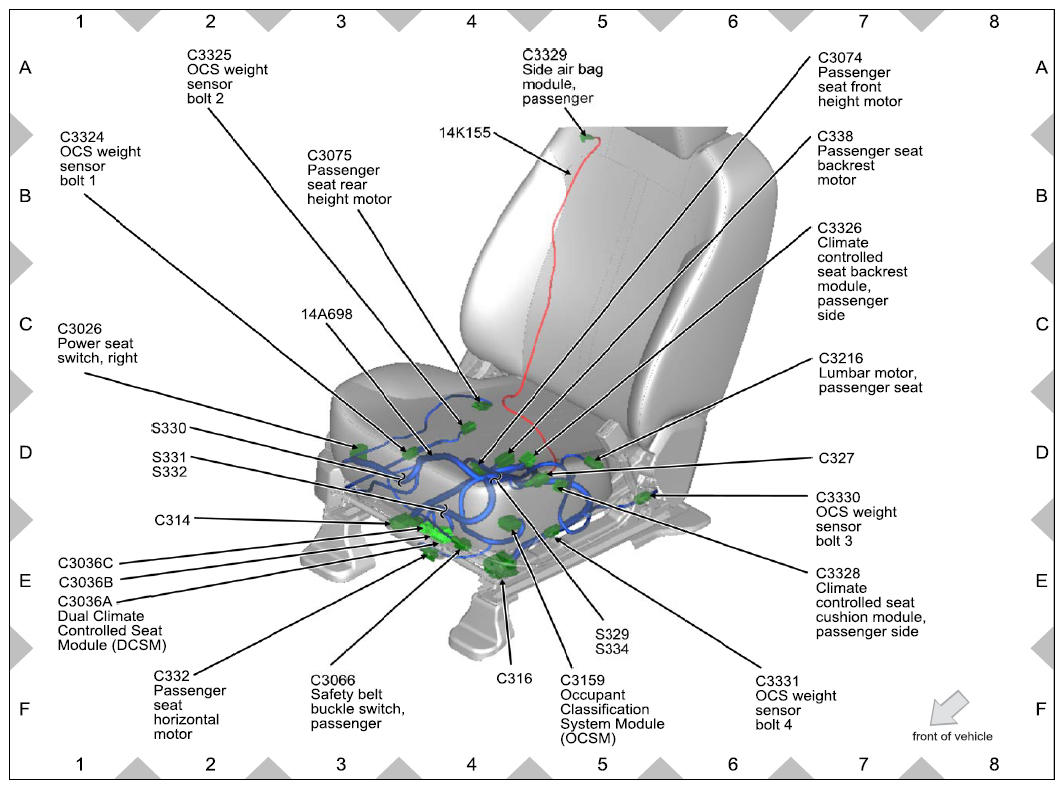

Fig 30: Front Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G08727251

Courtesy of FORD MOTOR CO.

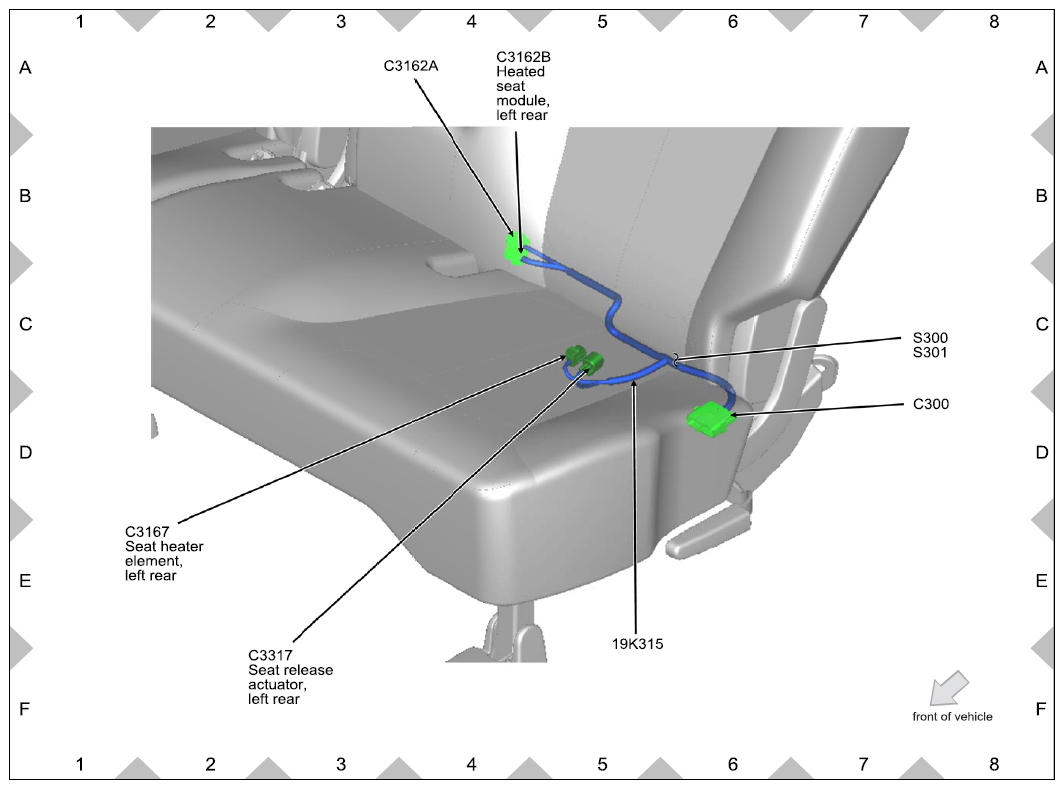

Fig 31: Left Rear Passenger Seat Wiring Harness Connectors Location

G08727252

Courtesy of FORD MOTOR CO.

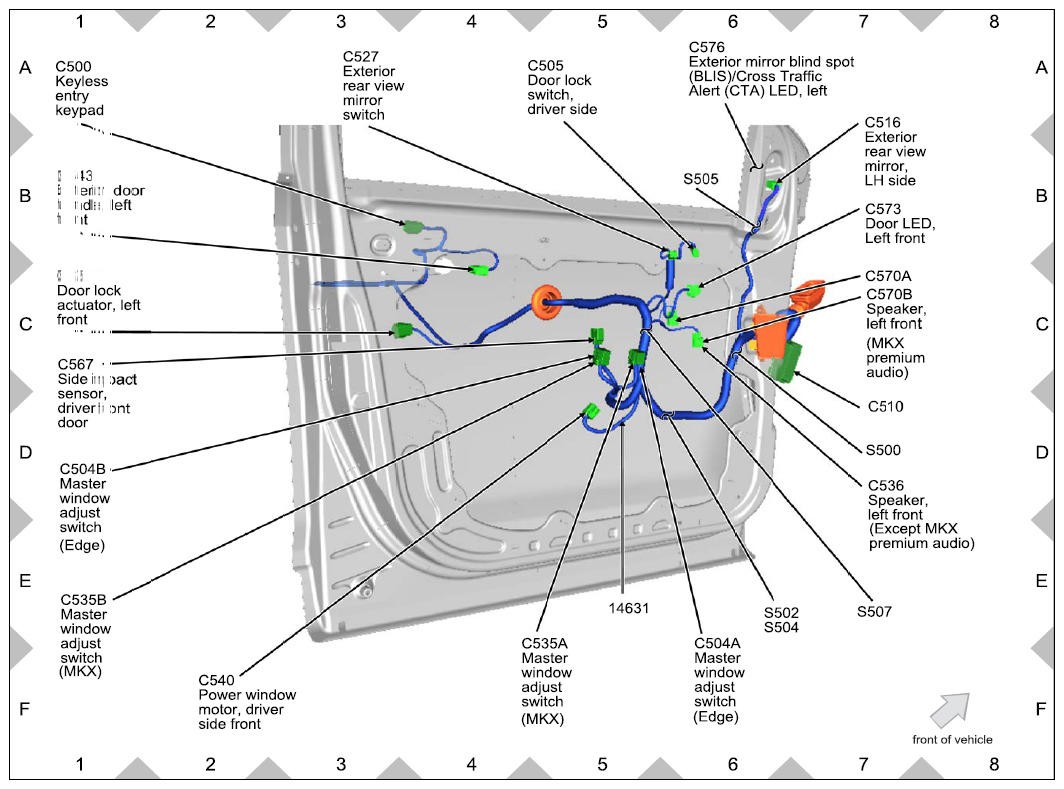

Fig 32: LH Front Door Wiring Harness Connectors Location

G08727253

Courtesy of FORD MOTOR CO.

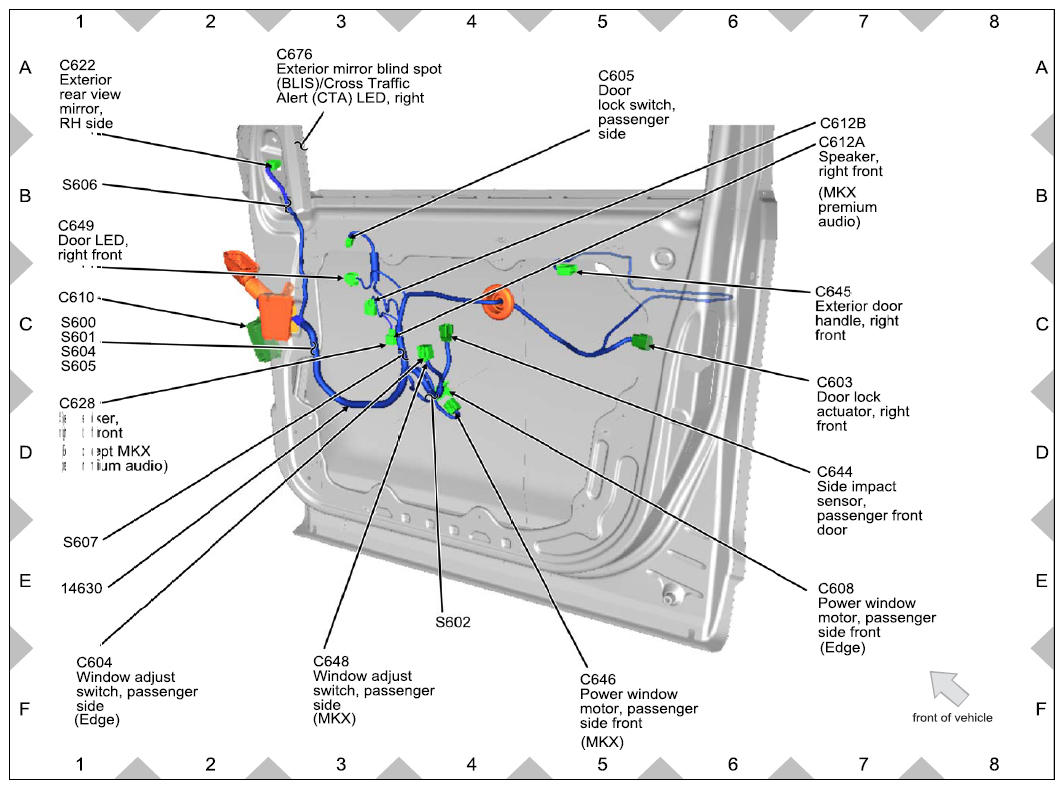

Fig 33: RH Front Door Wiring Harness Connectors Location

G08727254

Courtesy of FORD MOTOR CO.

Fig 34: LH Rear Door Wiring Harness Connectors Location

G08727255

Courtesy of FORD MOTOR CO.

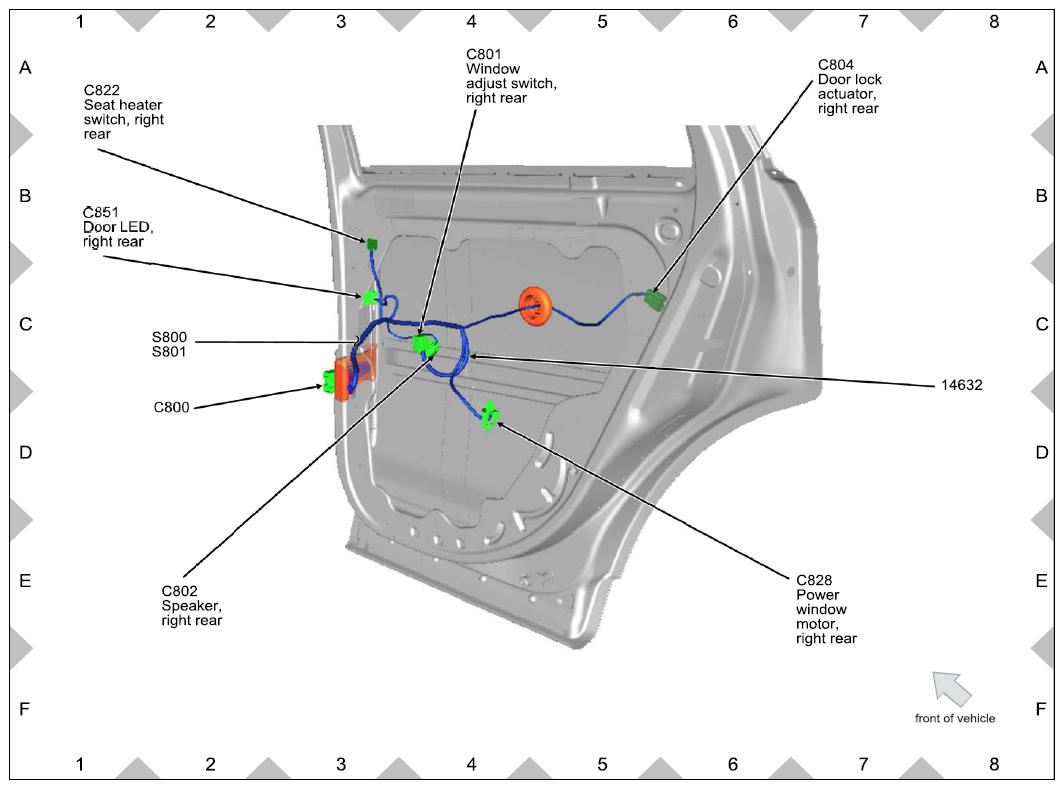

Fig 35: RH Rear Door Wiring Harness Connectors Location

G08727256

Courtesy of FORD MOTOR CO.

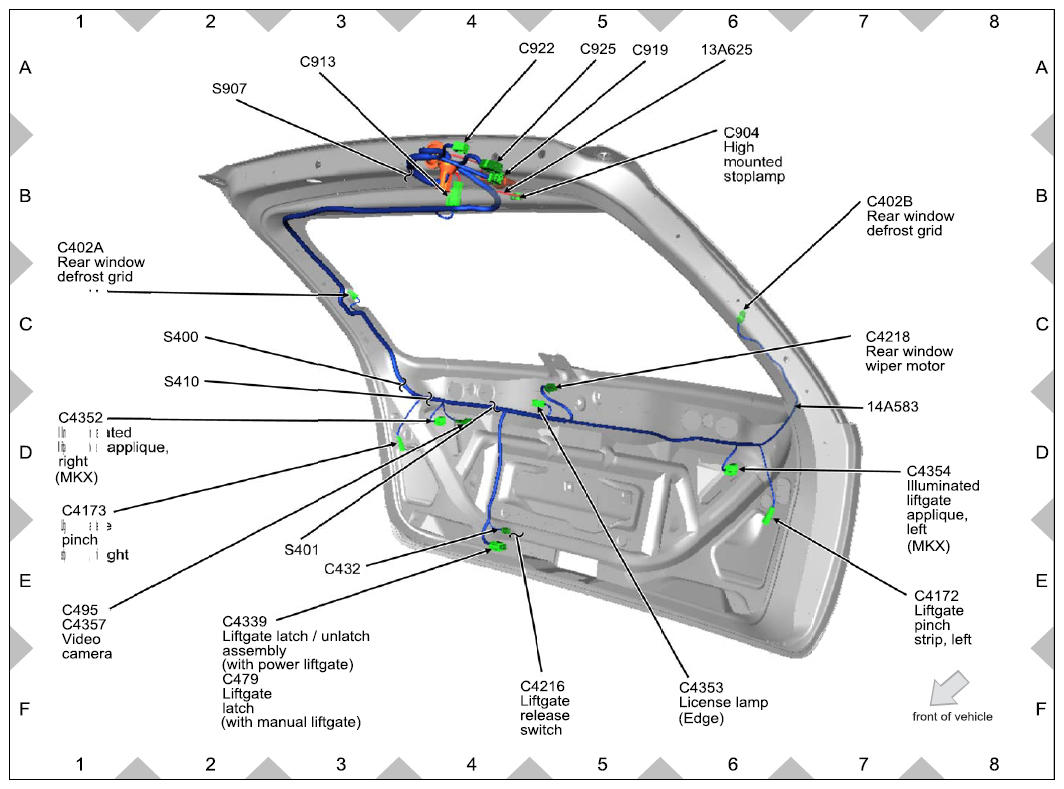

Fig 36: Liftgate Wiring Harness Connectors Location

G08727257

Courtesy of FORD MOTOR CO.

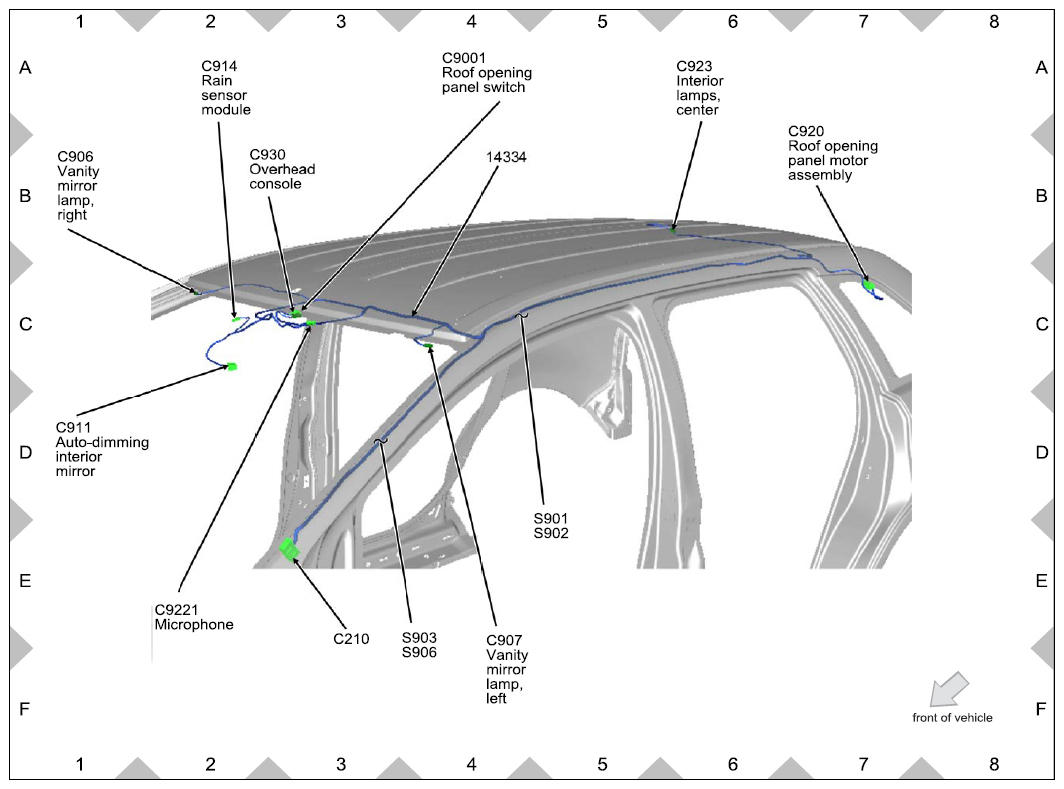

Fig 37: Roof Wiring Harness Connectors Location

G08727258

Courtesy of FORD MOTOR CO.
