Front Wheel Speed Sensor RH Connector End View (C160)

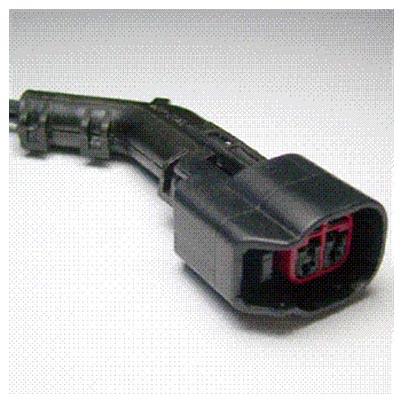

Fig 1: Identifying Front Wheel Speed Sensor RH Connector (C160)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA05 (VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT
2	RCA19 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT

Available Pigtail Kits
Pigtail Kit Part Number WPT-1246	Service Part Number: BU2Z-14S411-RA  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Speed
