CUSTOMER SATISFACTION PROGRAM 13A01 - APPLICATION PERFORMANCE UPGRADE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 13A01 Supplement #3, Date of Issue: September 25, 2013

FORD:

2012-2013 Focus Electric; 2013 C-MAX Hybrid, C-MAX Energi, Fusion Hybrid

APPLICATION PERFORMANCE UPGRADE 13A01

NOTE: THIS FIELD SERVICE ACTION EXPIRED ON SEPTEMBER 1, 2014.

SUBJECT

DEMONSTRATION/DELIVERY HOLD - Application Performance Upgrade 13A01 - Supplement #3

Certain 2012-2013 Focus Electric, 2013 C-MAX Hybrid and C-MAX Energi, and 2013 Fusion Hybrid Vehicles Equipped with MyFord Touch®

Application Performance Upgrade

REF

DEMONSTRATION/DELIVERY HOLD - Application Performance Upgrade 13A01 - Supplement #2 Dated August 6, 2013

REASON FOR THIS SUPPLEMENT

To inform dealers that the recently released IDS version 86.04 (or higher) should be used for all future repairs performed under this program.
To advise dealers that vehicles reprogrammed using prior levels of IDS do not need to be serviced again.

PROGRAM SUMMARY

This program is intended to make the latest level MyFord Touch® software (BD/13171/V3.6.2) available for all Hybrid, Plug-in Hybrid, and Electric vehicles produced with earlier levels of software. Note that affected vehicles require the use of IDS version 86.04 or higher to perform the software upgrade, and are not upgradable with a flash drive.

PROGRAM TERMS

This program will be in effect through August 31, 2014. There is no mileage limit for this program.

AFFECTED VEHICLES

Certain vehicles equipped with MyFord Touch®, as noted below.

2012-2013 Focus Electric vehicles produced through February 5, 2013.
2013 C-MAX Hybrid and C-MAX Energi vehicles produced through February 5, 2013.
2013 Fusion Hybrid vehicles produced through November 27, 2012.

Affected vehicles are identified in OASIS. In addition, for a list of vehicles assigned to your dealership, visit https://web.fsavinlists.dealerconnection.com.

REASON FOR THIS PROGRAM

An upgraded version of the MyFord Touch® software (BD/13171/V3.6.2) is available. This upgrade provides the following functional and feature enhancements to all affected vehicles:

Simplified phone pairing process.
Enhanced voice recognition performance.
Improved call sound quality.
Simplified voice commands for radio and USB-connected audio players.
Enhanced voice and screen destination entry for vehicles equipped with Navigation.
Updated Bluetooth® device/SYNC® compatibility.
Addition of an outside air temperature display on the 8-inch touchscreen.
Addition of an "EV Info" button on the Home screen that leads to a Powerflow screen showing energy flow information.

Additional feature content specific to C-MAX Energi and Focus Electric vehicles

New "EV Info" button on Home screen provides access to a Powerflow screen plus a Charge Settings screen that includes:
- On-Board Charge Programming
- Cabin Preconditioning
- State of Charge
Navigation update includes:
- Rings representing vehicle electric range
- Updated Electric Charging Station POIs with over-the-air updates via Sirius XM Travel Link (requires active account).
Customizable Charge Port Light Ring illumination settings
Enhanced driveability (Focus Electric only).

SERVICE ACTION

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to perform the following:

2013 C-MAX Hybrid and Fusion Hybrid:

PCM - Reprogram with IDS to latest level software.

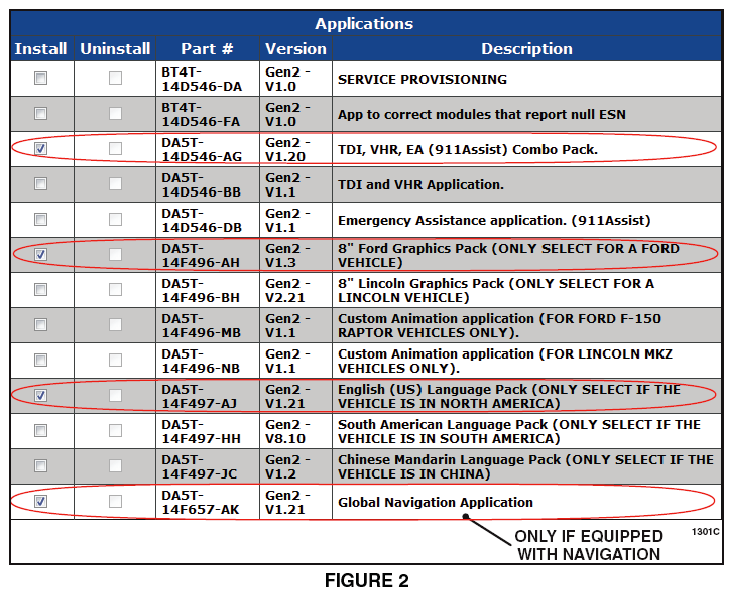

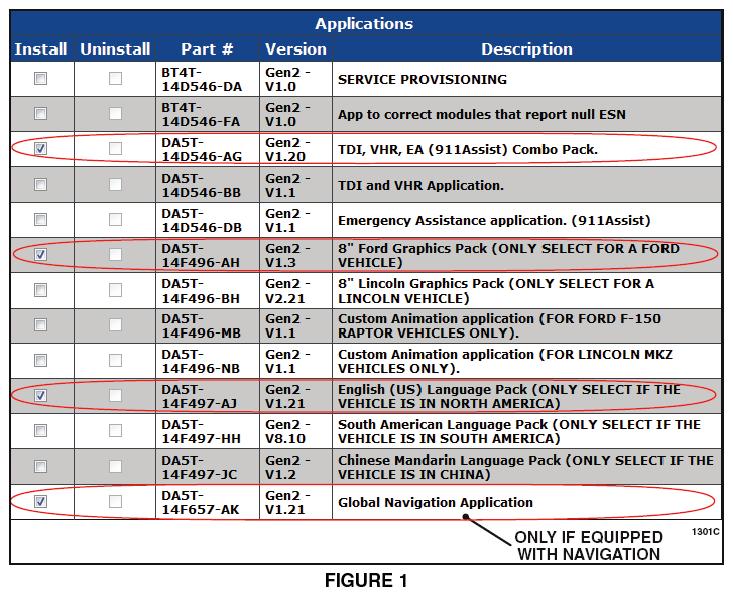

APIM - Reprogram with IDS to BD/13171/V3.6.2 level software.

2013 C-MAX Energi:

Telematics Control Unit (TCU) - Reprogramming of the TCU is not required. However, replacement of the TCU is required for vehicles specifically identified in the C-MAX Energi TCU Replacement Reference Table in Attachment VI.
NOTE: To ensure that a replacement TCU is available at the dealer at the time of repair, dealers should confirm whether or not a VIN is identified in Attachment VI before scheduling a service appointment.
PCM - Reprogram with IDS to the latest level software.
APIM - Reprogram with IDS to BD/13171/V3.6.2 level software.

2012&2013 Focus Electric:

TCU - Reprogram with IDS to the latest level software. The TCU is unique from other modules and may need to be reprogrammed more than once to reach the latest software level (the TCU can only be updated one software level at a time). Replacement of the TCU is required for vehicles specifically identified in the Focus Electric TCU Replacement Reference Table in Attachment VII.
NOTE: To ensure that a replacement TCU is available at the dealer at the time of repair, dealers should confirm whether or not a VIN is identified in Attachment VII before scheduling a service appointment.
PCM - Reprogram with IDS to the latest level software.
APIM - Reprogram with IDS to BD/13171/V3.6.2 level software.
For vehicles equipped with Navigation, a new Navigation SD Map Card (A4 level) must be installed when the APIM is reprogrammed.

NOTE: The A3 level Navigation SD Map Cards will not provide the full functionality on electrified vehicles, and should not be used.

Dealers are to insert a new User Guide in all stock C-MAX Energi and Focus Electric vehicles, which outlines special features specific to these vehicles. Copies of the updated User Guide, which is posted with this bulletin, were mailed to dealers on April 16, 2013 for stock vehicles.

Dealers should inform C/MAX Energi and Focus Electric vehicle owners that they may need to re-add their vehicle to their MyFord Mobile account after having this service performed.

Performing the Repair

In the event that the upgrade is unsuccessful, the vehicle should be diagnosed and repaired by a technician using normal diagnostics and claimed as part of the FSA. If there is a software download issue, and the new APIM diagnostic pinpoint test indicates that the APIM requires replacement, dealers are authorized to claim APIM replacement without contacting the Special Service Support Center.

This service must be performed on all affected vehicles at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters will be mailed in June, 2013. Owner Letters to C-MAX Energi and Focus Electric vehicle owners will include an updated User Guide, which explains the new features unique to these applications.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information (Fusion Hybrid and C-MAX Hybrid)
Attachment IV: Technical Information (C-MAX Energi)
Attachment V: Technical Information (Focus Electric)
Attachment VI: C-MAX Energi TCU Replacement Reference Table
Attachment VII: Focus Electric TCU Replacement Reference Table

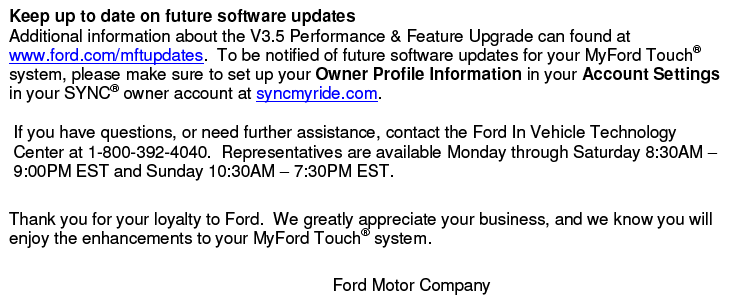

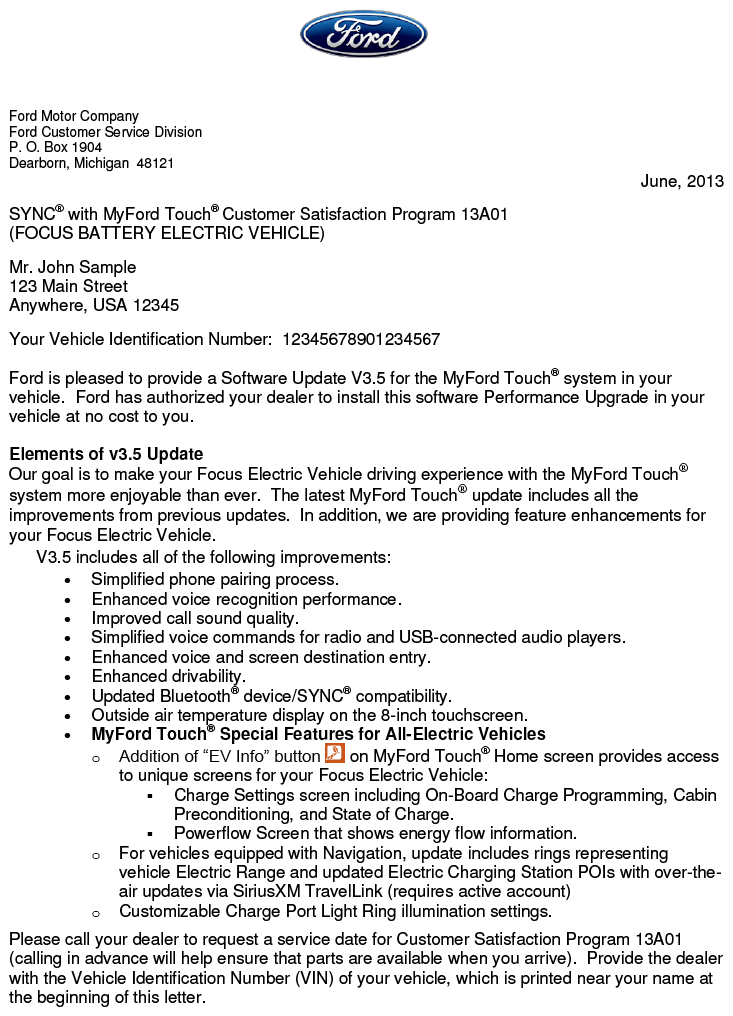

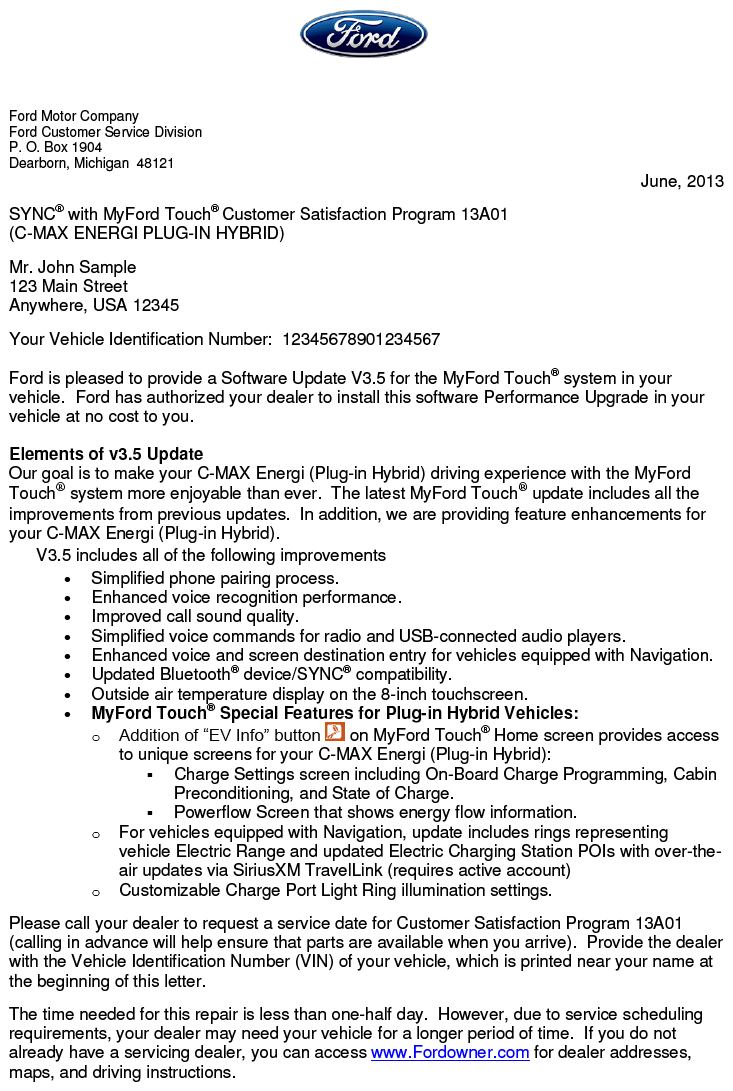

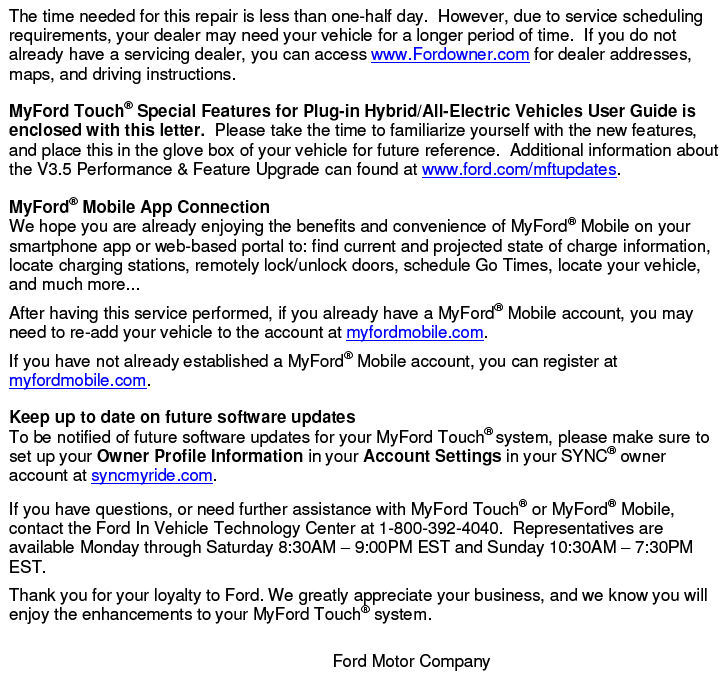

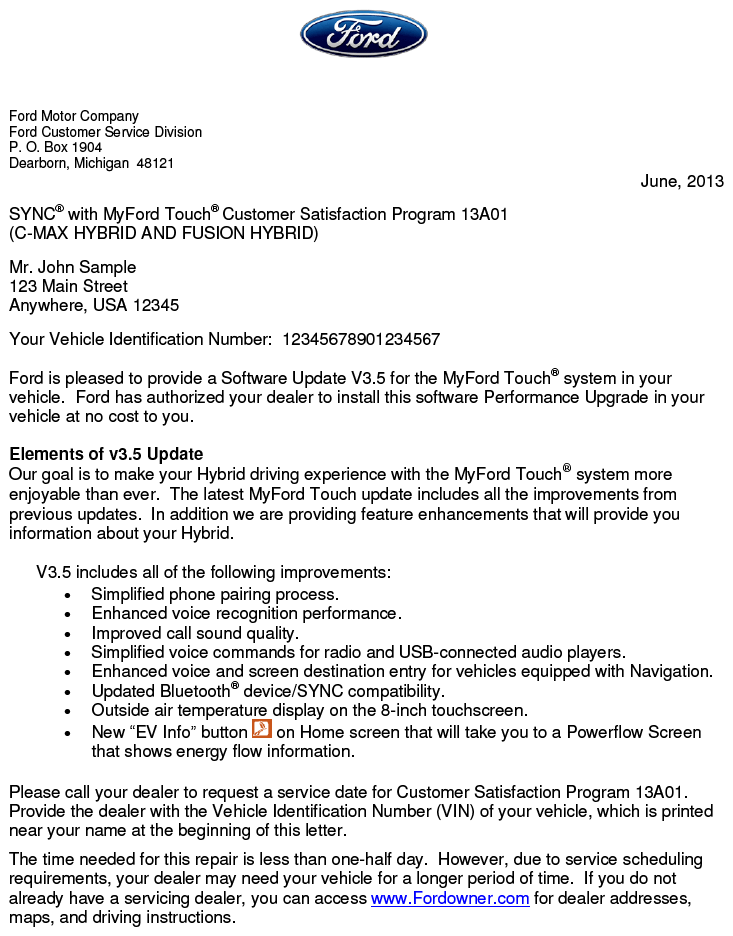

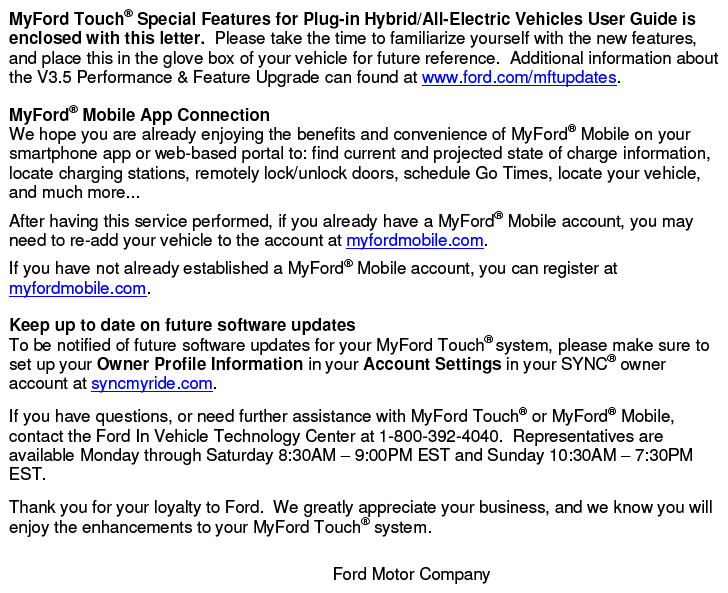

Owner Notification Letters
MyFord Touch® User Guide - Special Features for Plug-in Hybrid/All-Electric Vehicles

QUESTIONS & ASSISTANCE

Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621
Navigation Map SD Card Questions (Ford Component Sales) ... 1-313-390-3635
Special Service Support Center (Parts Ordering) ... 1-800-207-2444

ATTACHMENT I

DEMONSTRATION/DELIVERY HOLD

Application Performance Upgrade 13A01 - Supplement #3

Certain 2012-2013 Focus Electric, 2013 C-MAX Hybrid and C-MAX Energi, and 2013 Fusion Hybrid Vehicles Equipped with MyFord Touch®

Application Performance Upgrade

OASIS ACTIVATED?

Yes, OASIS was activated for all affected vehicles on May 24, 2013.

FSA VIN LIST ACTIVATED?

FSA VIN lists for all affected vehicles were made available through https://web.fsavinlists.dealerconnection.com on May 24, 2013. Owner names and addresses were available in June, 2013.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.
Use OASIS to identify any affected vehicles in your used vehicle inventory.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

RELATED DAMAGE

If a related damage condition exists that you believe to be caused by the covered condition, call the Special Service Support Center to request approval prior to the repair of any related damage. Requests for approval after completion of the repair will not be granted.

NOTE: APIM replacements should not be claimed as Related Damage. (See Attachment II)

ADDITIONAL LABOR TIME

If a condition exists that requires additional labor to complete the repair, call the Special Service Support Center to request approval prior to performing any additional labor. Requests for approval after completion of the repair will not be granted.
If you encounter aftermarket equipment or modifications to the vehicle which might prevent the repair of the covered condition, call the Special Service Support Center.

OWNER REFUNDS

Refunds are not authorized for this program.

RENTAL VEHICLES

The use of rental vehicles is not authorized under this FSA.

CLAIMS PREPARATION AND SUBMISSION

Navigation Map SD Cards can only be claimed for vehicles equipped with Navigation.
For Navigation Map SD Card claiming, use service part number DM5Z-19H449-AA (A4 level).
Enter claims using Direct Warranty Entry (DWE).
Refer to ACESII manual for claims preparation and submission information.
If the APIM replacement and software reprogramming labor operations are both being claimed, they should be claimed on the same repair line.
Related damage must be claimed on a repair line that is separate from the repair line on which the FSA is claimed. Related damage requires prior approval from the Special Service Support Center.
"MT" labor should be submitted on a separate repair line with the related damage flag checked. "MT" labor requires prior approval from the Special Service Support Center.
PROGRAM TERMS: This program will be in effect through August 31, 2014. There is no mileage limit for this program.
TCUs may only be claimed under FSA 13A01 on vehicles identified in the C-MAX Energi TCU Replacement Reference Table contained in Attachment VI, and Focus Electric TCU Replacement Reference Table contained in Attachment VII.

ATTACHMENT II

DEMONSTRATION/DELIVERY HOLD

Application Performance Upgrade 13A01 - Supplement #3

Certain 2012-2013 Focus Electric, 2013 C-MAX Hybrid and C-MAX Energi, and 2013 Fusion Hybrid Vehicles Equipped with MyFord Touch®

Application Performance Upgrade

LABOR ALLOWANCES

Description

Labor Operation

Labor Time

2013 Fusion Hybrid:

Vehicle without Navigation: Reprogram the PCM and APIM using IDS.

13A01B

1.4 Hours

Vehicle with Navigation: Reprogram the PCM and APIM using IDS. Insert a new A4 level Navigation Map SD Card.

13A01C

1.4 Hours

2013 C-MAX Hybrid:

Vehicle without Navigation: Reprogram the PCM and APIM using IDS.

13A01E

1.4 Hours

Vehicle with Navigation: Reprogram the PCM and APIM using IDS. Insert a new A4 level Navigation Map SD Card.

13A01F

1.4 Hours

2013 C-MAX Energi:

Vehicle without Navigation - VIN is identified in Attachment VI: Replace the TCU, and reprogram the PCM and APIM. Insert a new User Guide in dealer stock vehicles.

13A01G

1.7 Hours

Vehicle with Navigation - VIN is identified in Attachment VI: Replace the TCU, and reprogram the APIM and PCM. Insert a new A4 level Navigation Map SD Card. Insert a new User Guide in dealer stock vehicles.

13A01H

1.7 Hours

Vehicle without Navigation - VIN is not identified in Attachment VI: Reprogram the APIM and PCM. Insert a new User Guide in dealer stock vehicles.

13A01J

1.4 Hours

Vehicle with Navigation - VIN is not identified in Attachment VI: Reprogram the APIM and PCM. Insert a new A4 level Navigation Map SD Card. Insert a new User Guide in dealer stock vehicles.

13A01K

1.4 Hours

2012-2013 Focus Electric (all are equipped with Navigation):

VIN is identified in Attachment VII:
Replace the TCU, Perform Master Reset, and reprogram the PCM and APIM. Insert a new A4 level Navigation Map SD Card. Insert a new User Guide in dealer stock vehicles.

13A01L

2.2 Hours

VIN is not identified in Attachment VII:
Perform Master Reset, reprogram the TCU (includes time to reprogram a second time if needed), PCM and APIM. Insert a new A4 level Navigation Map SD Card. Insert a new User Guide in dealer stock vehicles.

13A01P

1.7 Hours

APIM Replacement

NOTE: The Labor Operations 13A01B through 13A01M can be claimed in conjunction with the labor operations below if the module fails during reprogramming.

Diagnose and Replace APIM on 2012-2013 Focus Electric

13A01MM

1.6 Hours⁽¹⁾

Diagnose and Replace APIM on 2013 C-MAX Hybrid and Energi

13A01NN

1.6 Hours⁽¹⁾

Diagnose and Replace APIM on 2013 Fusion Hybrid

13A01DD

1.6 Hours⁽¹⁾

⁽¹⁾	Labor times for APIM Diagnoses and Replacement have been increased to account for a new APIM Hardware Test, which has been added to the diagnostic pinpoint test.

PARTS REQUIREMENTS/ORDERING INFORMATION

Navigation Map SD Cards

To order Navigation Map SD Cards for Navigation equipped vehicles:

Go to FMCDealer.com
Select the Parts & Service tab
Select Parts Department Tools
Select Parts Inquiries & Forms
Select Navigation Map Update Order Form
Select MyFord/MyLincoln Touch Performance Upgrade Map Upgrade
Follow the on-screen instructions

PARTS INFORMATION

Part Number	Description	Quantity
DM5T-19H449-AA (A4 level) (Use for ordering ) DM5Z-19H449-AA (A4 level) (Use for claiming )	Navigation Map SD Card (if equipped with Navigation)	1
-14D212-	Accessory Protocol Interface Module (APIM) (Gen 2 Module)	1 (if required)

Questions regarding Navigation Map SD Card availability should be directed to 313-390-3635 or fesg@ford.com.

Accessory Protocol Interface Module (APIM)

APIMs should be ordered through normal order processing channels, using the on-line 1878 form. To order an APIM:

Go to FMCDealer.com
Go to OASIS
Enter the VIN and click GO
Select the On-Line 1878 (scroll to the bottom)
Select "SYNC Module" from the System drop-down box
Complete the On-Line 1878 Ford order process

Questions regarding APIM availability and ordering should be directed to 313-390-3635 or fesq@ford.com.

TCU replacement is only authorized for VINs identified in the C-MAX Energi TCU Replacement Reference Table contained in Attachment VI and Focus Electric TCU Replacement Reference Table contained in Attachment VII.

PARTS INFORMATION

Part Number	Description	Quantity
DM5Z-19K350-B	Telematic Control Unit (TCU)	1 (Only required on C-MAX Energi VINs identified in Attachment VI)
DM5Z-19A387-C	Telematic Control Unit (TCU)	1 (Only required on Focus Electric VINs identified in Attachment VII)

The DOR/COR number for this recall is 50497.

To manage TCU part availability, dealers must contact the Special Service Support Center Parts Order Line at 1-800-207-2444. When calling to place an order for a TCU, please be prepared to provide dealer P & A code, VIN, and RO #.

Dealers will be notified via a DOES II communication if circumstances warrant a change in part supply strategy and when open ordering resumes.

USER GUIDES

Updated MyFord Touch® User Guides for Electrified Vehicles are required for Focus Electric and CMAX Energi vehicles only.

Stock Vehicles

Updated User Guides for stock vehicles were mailed to dealers on April 16, 2013. Additional copies are available through the Dealer eStore at FMCDealer.com.

Sold Vehicles

Updated User Guides for sold vehicles will be mailed with C-MAX Energi and Focus Electric owner notification letters.

DEALER PRICE

For latest prices, refer to DOES II.

PARTS RETENTION AND RETURN

Affected parts are subject to random selection for return to the Ford Warranty Parts Analysis Center (WPAC). Refer to your daily PEARS (Parts Entry and Return System) register for part disposition and return instructions.

Follow the provisions of the Warranty and Policy Manual for "Parts Retention and Return Procedures."

EXCESS STOCK RETURN

Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.

Excess Navigation Map SD Cards to be returned for credit must have been purchased from Ford Customer Service Division/Ford Component Sales. Only new, unopened (still in shrink wrap) product is eligible for return.

ATTACHMENT III

APPLICATION PERFORMANCE UPGRADE 13A01 -S3

CERTAIN 2013 MODEL YEAR FUSION HYBRID AND C-MAX HYBRID VEHICLES EQUIPPED WITH MYFORD TOUCH® - APPLICATION PERFORMANCE UPGRADE

OVERVIEW

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to perform the following in the order listed below, using IDS 86.04 or higher:

NOTE: The Powertrain Control Module (PCM) must be reprogrammed before reprogramming the SYNC Module (APIM).

PCM - Reprogram using IDS 86.04 or higher.
APIM - Reprogram using IDS to BD/13171/V3.6.2.

This FSA must be performed even if APIM software level BD/13171/V3.6.2 appears within the vehicle system information screen prior to beginning this procedure. In order for the full system functionality to be achieved, the above modules must all be updated in the order stated above using the indicated software levels.

Vehicles Equipped with Navigation

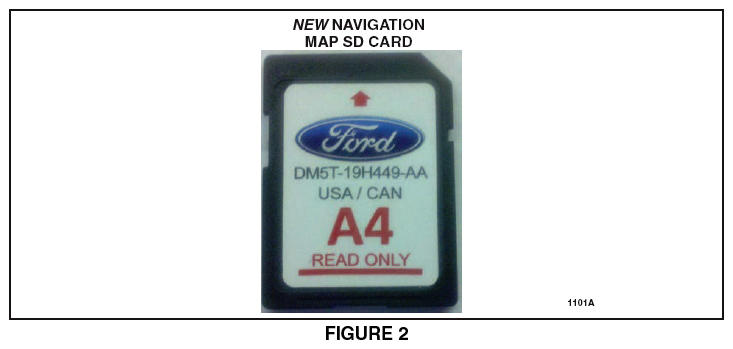

For vehicles equipped with Navigation, a new A4 level Navigation Map SD Card must be installed when the APIM is reprogrammed.

SERVICE PROCEDURE

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12v battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired internet connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, head lamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Module Reprogramming

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

Connect battery charger to the 12v battery. For additional information, refer to Workshop Manual (WSM) Section 414-01.

Reprogram the following modules to the latest software level in the order instructed below, using IDS 86.04 or higher:

PCM - Reprogram using IDS 86.04 or higher.
- If the PCM is not reprogrammed before the APIM, BD/13171/V3.6.2 will not be shown as an option in PTS.

APIM - Follow the "SYNC Module (APIM) Custom Programming" procedure to reprogram the APIM to BD/13171/V3.6.2. For additional information, refer to WSM Section 415-00.

NOTE: Calibration files may also be obtained at www.motorcraft.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedure.

NOTE: When prompted to manually select vehicle applications, select only the applications that are applicable to the vehicle. See Figure 1.

NOTE: Touchscreen calibration is required after reprogramming the APIM. After the reprogram procedure completes, a "Tick" button will appear on the bottom left of the IDS screen (this may require scrolling to the bottom of the page to view).

Vehicles Equipped With Navigation

NOTE: After the reprogramming procedure completes, an SD card fault will appear on the screen. This is normal.

Remove the A3 level Navigation Map SD Card from the vehicle's map card slot.
Tap "SD Nav" on the touchscreen to clear the SD card fault.
Install the new A4 level Navigation Map SD Card into the vehicle's map card slot. See Figure 2. Wait for the new Navigation Map SD Card to be recognized and tap "OK" when the "SD Card Detected" screen appears on the touchscreen.

All Vehicles

NOTE: If the MyFord Touch® system is unresponsive, inoperative, or if the vehicle software update was unsuccessful, perform normal WSM diagnostic procedures. If WSM diagnostics identify the APIM as the causal part of a concern, replace the APIM. For additional information, refer to WSM, Section 415-00.

Recovering a PCM when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
Disconnect the VCM from the data link connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
Near the end of programming, the IDS prompts you to select certain parameters. It is important to make a selection for ALL parameters listed. If the correct selection is already highlighted, you must still choose that selection before clicking the "Tick" mark to complete the configuration.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

ATTACHMENT IV

APPLICATION PERFORMANCE UPGRADE 13A01 -S3

CERTAIN 2013 MODEL YEAR C-MAX ENERGI VEHICLES EQUIPPED WITH MYFORD TOUCH® - APPLICATION PERFORMANCE UPGRADE

OVERVIEW

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to perform the following in the order listed below, using IDS 86.04 or higher:

Telematic Control Unit Module (TCU) - TCU reprogramming is not required however, certain vehicles which are listed in Attachment VI will require TCU replacement.
PCM - Reprogram using IDS 86.04 or higher.
APIM - Reprogram using IDS to BD/13171/V3.6.2.

Vehicles Equipped with Navigation

For vehicles equipped with Navigation, a new A4 level Navigation Map SD Card must be installed when the APIM is reprogrammed.

Stock Units

Dealers are to insert an updated User Guide into the glove compartment of stock units.

SERVICE PROCEDURE

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12v battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired internet connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, head lamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Module Reprogramming

Certain vehicles, which are listed within Attachment VI, will require TCU replacement.
- If the VIN is listed within Attachment VI, proceed to Step 2.
- If the VIN is not listed within Attachment VI, proceed to Step 3.
  IMPORTANT: The TCU WSM procedure contains steps for Programmable Module Installation (PMI). These steps must be followed to properly install the new TCU.
If the VIN is listed within Attachment VI, replace the TCU. Refer to Workshop Manual (WSM) Section 415-00.
NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

NOTE: If the MyFord® Mobile system prompts for user permissions select "Allow".
Connect battery charger to the 12v battery. For additional information, refer to WSM Section 414-01.

Reprogram the following modules to the latest software level in the order instructed below, using IDS 86.04 or higher:

PCM - Reprogram using IDS 86.04 or higher.
- If the PCM is not reprogrammed before the APIM, BD/13171/V3.6.2 will not be shown as an option in PTS.

APIM - Follow the "SYNC Module (APIM) Custom Programming" procedure to reprogram the APIM to BD/13171/V3.6.2. For additional information, refer to WSM Section 415-00.

NOTE: Calibration files may also be obtained at www.motorcraft.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedures.

NOTE: When prompted to manually select vehicle applications, select only the applications that are applicable to the vehicle. See Figure 1.

Vehicles Equipped With Navigation

NOTE: After the reprogramming procedure completes, an SD card fault will appear on the screen. This is normal.

Remove the A3 level Navigation Map SD Card from the vehicle's map card slot.
Tap "SD Nav" on the touchscreen to clear the SD card fault.
Install the new A4 level Navigation Map SD Card into the vehicle's map card slot. See Figure 2. Wait for the new Navigation Map SD Card to be recognized and tap "OK" when the "SD Card Detected" screen appears on the touchscreen.

Stock Units
Insert an updated User Guide into the glove compartment of all stock units.
All Vehicles

NOTE: If the MyFord Touch® system is unresponsive, inoperative, or if the vehicle software update was unsuccessful, perform normal WSM diagnostic procedures. If WSM diagnostics identify the APIM as the causal part of a concern, replace the APIM. For additional information, refer to WSM, Section 415-00.
Notify the customer that they may need to re-establish their MyFord® mobile account.

Recovering a PCM when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
Disconnect the VCM from the data link connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
Near the end of programming, the IDS prompts you to select certain parameters. It is important to make a selection for ALL parameters listed. If the correct selection is already highlighted, you must still choose that selection before clicking the "Tick" mark to complete the configuration.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

ATTACHMENT V

APPLICATION PERFORMANCE UPGRADE 13A01 -S3

CERTAIN 2012-2013 MODEL YEAR FOCUS ELECTRIC VEHICLES EQUIPPED WITH MYFORD TOUCH® - APPLICATION PERFORMANCE UPGRADE

OVERVIEW

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to perform the following in the order listed below, using IDS 86.04 or higher:

Telematic Control Unit Module (TCU) - Reprogram using IDS 86.04 or higher.
- Certain vehicles, which are listed in Attachment VII, will require TCU replacement.
PCM - Reprogram using IDS 86.04 or higher.
APIM - Reprogram using IDS to BD/13171/V3.6.2.

Vehicles Equipped with Navigation

For vehicles equipped with Navigation, a new A4 level Navigation Map SD Card must be installed when the APIM is reprogrammed.

Stock Units

Dealers are to insert an updated User Guide into the glove compartment of stock units.

SERVICE PROCEDURE

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12v battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired internet connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, head lamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Module Reprogramming

Certain vehicles, which are listed within Attachment VII, will require TCU replacement.
- If the VIN is listed within Attachment VII, proceed to Step 2.
- If the VIN is not listed within Attachment VII, proceed to Step 3.
  IMPORTANT: The TCU WSM procedure contains steps for Programmable Module Installation (PMI). These steps must be followed to properly install the new TCU.
If the VIN is listed within Attachment VII, replace the TCU. Refer to Workshop Manual (WSM) Section 415-00. After TCU replacement proceed to Step 4.
NOTE: If a master reset is not performed the vehicle will not have full system functionality.
Perform the SYNC/MyTouch Master Reset.
1. Select the "Settings/Gear" icon.
2. Select "Settings".
3. Select "System".
4. Select "Master Reset" and then "Yes" then "Yes" to start the reset procedure.
  NOTE: You must scroll down on Select System screen to see the Master Reset option.
NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.
NOTE: If the MyFord® Mobile system prompts for user permissions select "Allow".

Connect battery charger to the 12v battery. For additional information, refer to WSM Section 414-01.

Reprogram the following modules to the latest software level in the order instructed below, using IDS 86.04 or higher:

TCU - Reprogram using IDS 86.04 or higher.
- The TCU is unique from other modules and may need to be reprogrammed more than once to reach the latest software level. The TCU can only be updated one software level at a time. If the TCU needs a second reprogramming, the following message may appear on IDS. See Figure 1a.
- TCU programming is not complete until "The TCU is now at the latest software level" is displayed. See Figure 1b.
- After reprogramming the TCU, turn the ignition "OFF", open/close the door, and wait for 30 seconds, this will force the vehicle into sleep mode. After the vehicle enters sleep mode, turn the ignition "ON" and wait 30 seconds.
PCM - Reprogram using IDS 86.04 or higher.
- If the PCM is not reprogrammed before the APIM, BD/13171/V3.6.2 will not be shown as an option in PTS.

APIM - Follow the "SYNC Module (APIM) Custom Programming" procedure to reprogram the APIM to BD/13171/V3.6.2. For additional information, refer to WSM Section 415-00.

NOTE: Calibration files may also be obtained at www.motorcraft.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedures.

The TCU has been updated, but it is not yet at the latest software level.
Run module reprogramming on the TCU again to update it to the latest software level.

FIGURE 1a

The TCU is now at the latest software level.

FIGURE 1b

NOTE: When prompted to manually select vehicle applications, select only the applications that are applicable to the vehicle. See Figure 2.

Vehicles Equipped With Navigation

NOTE: After the reprogramming procedure completes, an SD card fault will appear on the screen. This is normal.

Remove the A3 level Navigation Map SD Card from the vehicle's map card slot.
Tap "SD Nav" on the touchscreen to clear the SD card fault.
Install the new A4 level Navigation Map SD Card into the vehicle's map card slot. See Figure 3. Wait for the new Navigation Map SD Card to be recognized and tap "OK" when the "SD Card Detected" screen appears on the touchscreen.

Stock Units
Insert an updated User Guide into the glove compartment of all stock units.
All Vehicles

NOTE: If the MyFord Touch® system is unresponsive, inoperative, or if the vehicle software update was unsuccessful, perform normal WSM diagnostic procedures. If WSM diagnostics identify the APIM as the causal part of a concern, replace the APIM. For additional information, refer to WSM, Section 415-00.
Notify the customer that they may need to re-establish their MyFord® mobile account.

Recovering a PCM when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
Disconnect the VCM from the data link connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
Near the end of programming, the IDS prompts you to select certain parameters. It is important to make a selection for ALL parameters listed. If the correct selection is already highlighted, you must still choose that selection before clicking the "Tick" mark to complete the configuration.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

ATTACHMENT VI

Customer Satisfaction Program 13A01 -S1

C-MAX Energi TCU Replacement Reference Table

Use the following to identify the C-MAX Energi VINs that require replacement of the Telematics Control Unit (TCU).

To search for a VIN:

In Adobe Reader menu, click "EDIT", then click "FIND", then insert the complete VIN or the last 6 characters, then press ENTER.
Or

Press Ctrl and F simultaneously, then insert the complete VIN or the last 6 characters, then press ENTER.

VIN

VIN
1FADP5CU0DL500100
1FADP5CU0DL500193
1FADP5CU0DL500212
1FADP5CU0DL500243
1FADP5CU0DL503823
1FADP5CU1DL500090
1FADP5CU1DL500199
1FADP5CU1DL500204
1FADP5CU1DL500218
1FADP5CU1DL500221
1FADP5CU1DL503328
1FADP5CU1DL503331
1FADP5CU1DL507539
1FADP5CU1DL507704
1FADP5CU2DL500096
1FADP5CU2DL509364
1FADP5CU3DL500088
1FADP5CU3DL500110
1FADP5CU3DL500219
1FADP5CU3DL500222
1FADP5CU3DL500236
1FADP5CU3DL503329
1FADP5CU4DL500083
1FADP5CU4DL500097
1FADP5CU4DL500200
1FADP5CU4DL500214
1FADP5CU5DL500089
1FADP5CU5DL500108
1FADP5CU5DL500190
1FADP5CU5DL500206
1FADP5CU5DL500223
1FADP5CU5DL500237
1FADP5CU5DL500240
1FADP5CU6DL500148
1FADP5CU6DL500179
1FADP5CU6DL500196
1FADP5CU6DL500215
1FADP5CU6DL503342
1FADP5CU7DL500093
1FADP5CU7DL500109
1FADP5CU7DL500238
1FADP5CU7DL503818
1FADP5CU8DL500149
1FADP5CU8DL500183
1FADP5CU8DL500197
1FADP5CU8DL500216
1FADP5CU8DL503827
1FADP5CU8DL503830
1FADP5CU9DL500192
1FADP5CU9DL500208
1FADP5CU9DL500239
1FADP5CU9DL500242
1FADP5CU9DL503822
1FADP5CU9DL507708
1FADP5CUXDL500086
1FADP5CUXDL500203
1FADP5CUXDL500217
1FADP5CUXDL503330
1FADP5CUXDL500220

ATTACHMENT VII

Customer Satisfaction Program 13A01 - S1

Focus Electric Vehicle TCU Replacement Reference Table

Use the following to identify the Focus VINs that require replacement of the Telematics Control Unit (TCU).

To search for a VIN:

In Adobe Reader menu, click "EDIT", then click "FIND", then insert the complete VIN or the last 6 characters, then press ENTER.
Or

Press Ctrl and F simultaneously, then insert the complete VIN or the last 6 characters, then press ENTER.

VIN

VIN
1FADP3R43DL100009
1FADP3R4XDL100010
1FAHP3R40CL208135
1FAHP3R40CL237893
1FAHP3R40CL237909
1FAHP3R40CL237912
1FAHP3R40CL237926
1FAHP3R40CL237943
1FAHP3R40CL239613
1FAHP3R40CL258789
1FAHP3R40CL263636
1FAHP3R40CL263667
1FAHP3R40CL263670
1FAHP3R40CL274832
1FAHP3R40CL333801
1FAHP3R40CL333829
1FAHP3R40CL333832
1FAHP3R41CL217829
1FAHP3R41CL237899
1FAHP3R41CL237904
1FAHP3R41CL237918
1FAHP3R41CL237921
1FAHP3R41CL237935
1FAHP3R41CL237949
1FAHP3R41CL237952
1FAHP3R41CL258798
1FAHP3R41CL263628
1FAHP3R41CL263631
1FAHP3R41CL263645
1FAHP3R41CL263659
1FAHP3R41CL263662
1FAHP3R41CL263676
1FAHP3R41CL333807
1FAHP3R41CL333824
1FAHP3R42CL237894
1FAHP3R42CL237913
1FAHP3R42CL237927
1FAHP3R42CL237930
1FAHP3R42CL237944
1FAHP3R42CL263637
1FAHP3R42CL263640
1FAHP3R42CL263668
1FAHP3R42CL263671
1FAHP3R42CL333802
1FAHP3R42CL333833
1FAHP3R43CL237905
1FAHP3R43CL237919
1FAHP3R43CL237922
1FAHP3R43CL237936
1FAHP3R43CL237953
1FAHP3R43CL263629
1FAHP3R43CL263632
1FAHP3R43CL263646
1FAHP3R43CL263663
1FAHP3R43CL263677
1FAHP3R43CL263680
1FAHP3R43CL333811
1FAHP3R43CL333825
1FAHP3R44CL208137
1FAHP3R44CL237895
1FAHP3R44CL237914
1FAHP3R44CL237928
1FAHP3R44CL237931
1FAHP3R44CL237945
1FAHP3R44CL258794
1FAHP3R44CL263638
1FAHP3R44CL263641
1FAHP3R44CL263669
1FAHP3R44CL263672
1FAHP3R44CL333798
1FAHP3R44CL333803
1FAHP3R44CL333820
1FAHP3R44CL333834
1FAHP3R45CL237890
1FAHP3R45CL237906
1FAHP3R45CL237937
1FAHP3R45CL237940
1FAHP3R45CL263633
1FAHP3R45CL263647
1FAHP3R45CL263650
1FAHP3R45CL263664
1FAHP3R45CL263678
1FAHP3R45CL263681
1FAHP3R45CL333812
1FAHP3R45CL333826
1FAHP3R46CL208091
1FAHP3R46CL237896
1FAHP3R46CL237901
1FAHP3R46CL237915
1FAHP3R46CL237929
1FAHP3R46CL237932
1FAHP3R46CL237946
1FAHP3R46CL258795
1FAHP3R46CL263625
1FAHP3R46CL263639
1FAHP3R46CL263642
1FAHP3R46CL263673
1FAHP3R46CL333799
1FAHP3R46CL333804
1FAHP3R46CL333821
1FAHP3R47CL208133
1FAHP3R47CL237891
1FAHP3R47CL237907
1FAHP3R47CL237910
1FAHP3R47CL237924
1FAHP3R47CL237938
1FAHP3R47CL237941
1FAHP3R47CL258787
1FAHP3R47CL263634
1FAHP3R47CL263648
1FAHP3R47CL263651
1FAHP3R47CL263665
1FAHP3R47CL263682
1FAHP3R47CL333813
1FAHP3R47CL333830
1FAHP3R48CL208092
1FAHP3R48CL237897
1FAHP3R48CL237902
1FAHP3R48CL237916
1FAHP3R48CL237933
1FAHP3R48CL237947
1FAHP3R48CL237950
1FAHP3R48CL258796
1FAHP3R48CL258930
1FAHP3R48CL263626
1FAHP3R48CL263643
1FAHP3R48CL263660
1FAHP3R48CL263674
1FAHP3R48CL333805
1FAHP3R48CL333822
1FAHP3R48CL333836
1FAHP3R49CL208134
1FAHP3R49CL237892
1FAHP3R49CL237908
1FAHP3R49CL237911
1FAHP3R49CL237925
1FAHP3R49CL237939
1FAHP3R49CL237942
1FAHP3R49CL258788
1FAHP3R49CL263635
1FAHP3R49CL263652
1FAHP3R49CL263666
1FAHP3R49CL274831
1FAHP3R49CL333795
1FAHP3R49CL333828
1FAHP3R49CL333831
1FAHP3R4XCL217828
1FAHP3R4XCL237898
1FAHP3R4XCL237903
1FAHP3R4XCL237917
1FAHP3R4XCL237920
1FAHP3R4XCL237934
1FAHP3R4XCL237948
1FAHP3R4XCL237951
1FAHP3R4XCL258797
1FAHP3R4XCL258931
1FAHP3R4XCL263627
1FAHP3R4XCL263630
1FAHP3R4XCL263644
1FAHP3R4XCL263661
1FAHP3R4XCL263675
1FAHP3R4XCL333806
1FAHP3R4XCL333823

CUSTOMER NOTIFICATION LETTERS

C-MAX HYBRID AND FUSION HYBRID

FOCUS BATTERY ELECTRIC VEHICLE

C-MAX ENERGI PLUG-IN HYBRID
