EVAP Monitor

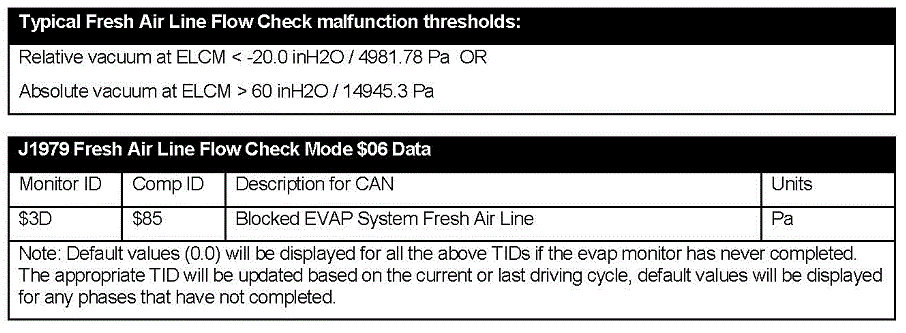

Fig 1: Mode $06 Data For Fresh Air Line Flow Check

Courtesy of FORD MOTOR CO.

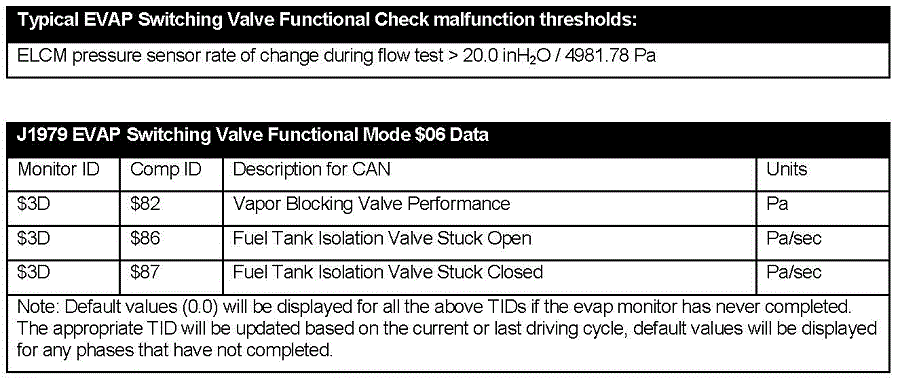

Fig 2: Mode $06 Data For Switching Valve Functional Check

Courtesy of FORD MOTOR CO.

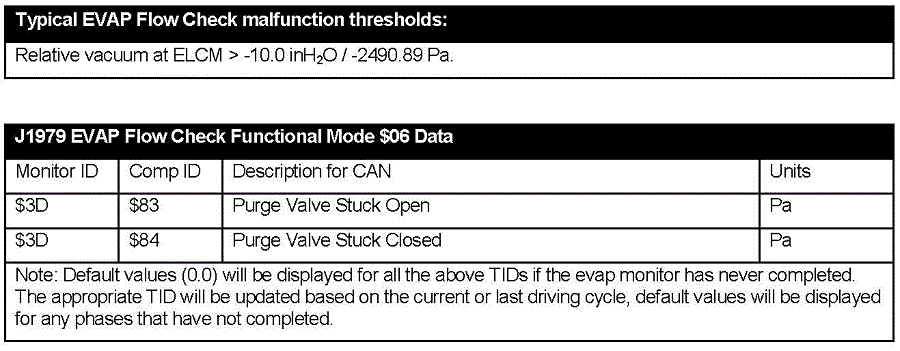

Fig 3: Mode $06 Data For EVAP Flow Check (Maximum)

Courtesy of FORD MOTOR CO.

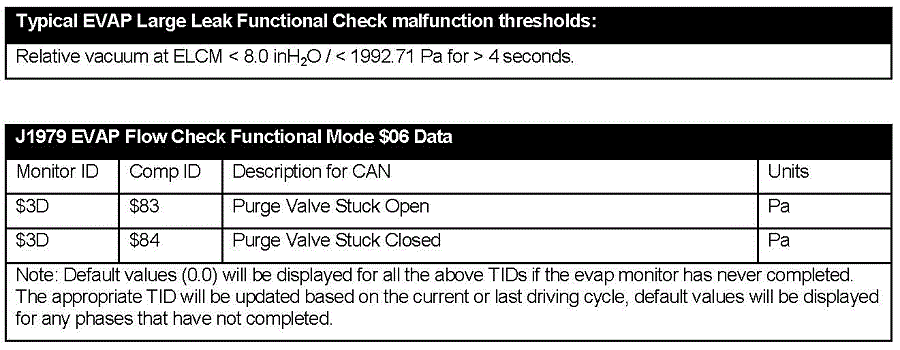

Fig 4: Mode $06 Data For EVAP Flow Check (Minimum)

Courtesy of FORD MOTOR CO.

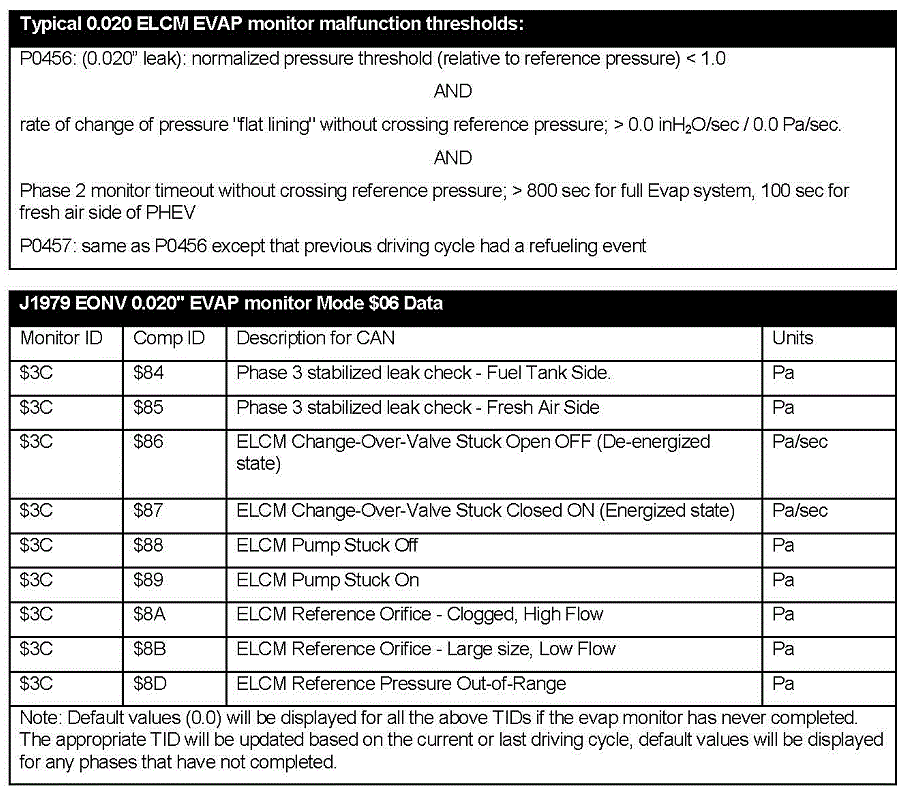

Fig 5: Mode $06 Data For ENOV 0.020" EVAP Monitor

Courtesy of FORD MOTOR CO.
