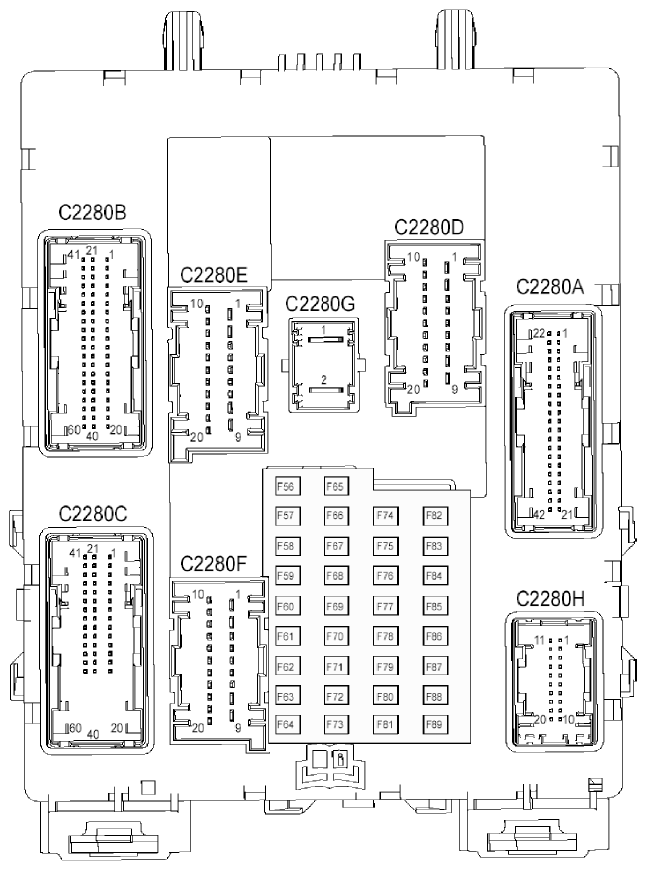

Body Control Module (BCM)
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F56 | 20 | Fuel pump relay, Fuel Pump Control Module, Battery Junction Box (BJB) - F27 |
| F57 | - | Not used |
| F58 | 5 | Not used |
| F59 | 5 | Passive Anti-Theft System (PATS) transceiver |
| F60 | 10 | Luggage compartment lamp, right and left, Driver door window control switch, Footwell lamp, left and right front, Vanity mirror lamp, left and right. Interior/map lamps assembly, front, Overhead console switch assembly, Dome lamp, rear, Glove compartment lamp |
| F61 | 20 | Cigar lighters |
| F62 | 5 | Rain sensor |
| F63 | 10 | Not used |
| F64 | - | Not used |
| F65 | 10 | Liftgate/decklid release relay, Liftgate/luggage compartment lid latch |
| F66 | 20 | Driver door unlock relay |
| F67 | 7.5 | Message center module, Navigation system module, Accessory Protocol Interface Module (APIM), Telematic Control Unit Module (TCU) |
| F68 | 15 | Spare relay |
| F69 | 5 | Instrument Panel Cluster (IPC) |
| F70 | 20 | All unlock relay, All lock relay |
| F71 | 10 | Heating, Ventilation and Air Conditioning (HVAC) control module |
| F72 | 7.5 | Steering Angle Sensor Module (SASM) |
| F73 | 5 | Data Link Connector (DLC), Gateway Module A (GWM) |
| F74 | 15 | High beam relay, Headlamp assembly, right and left |
| F75 | 15 | Fog lamp relay, Fog lamp, right front, Fog lamp, left front |
| F76 | 10 | Reversing lamp relay, Auto-dimming interior mirror, Lamp assembly, right and left rear |
| F77 | 20 | Front washer relay, Rear washer relay, Windshield washer pump |
| F78 | 5 | Ignition switch |
| F79 | 15 | Audio Control Module (ACM), Front Controls Interface Module (FCIM) |
| F80 | 20 | Not used |
| F81 | 5 | Glass roof panel blind module, Radio Frequency (RF) receiver |
| F82 | 20 | Front washer relay, Rear washer relay |
| F83 | 20 | All unlock relay, All lock relay |
| F84 | 20 | Driver door unlock relay, All double lock relay |
| F85 | 7.5 | Heated seat switch, passenger and driver side, Transmission Control Switch (TCS), Driver and passenger heated seat modules |
| F86 | 10 | Occupant Classification System Module (OCSM), Restraints Control Module (RCM), Passenger Airbag Deactivation (PAD) Indicator |
| F87 | 7.5 | Not used |
| F88 | - | Not used |
| F89 | - | Not used |
