Battery Energy Control Module Wiring Harness

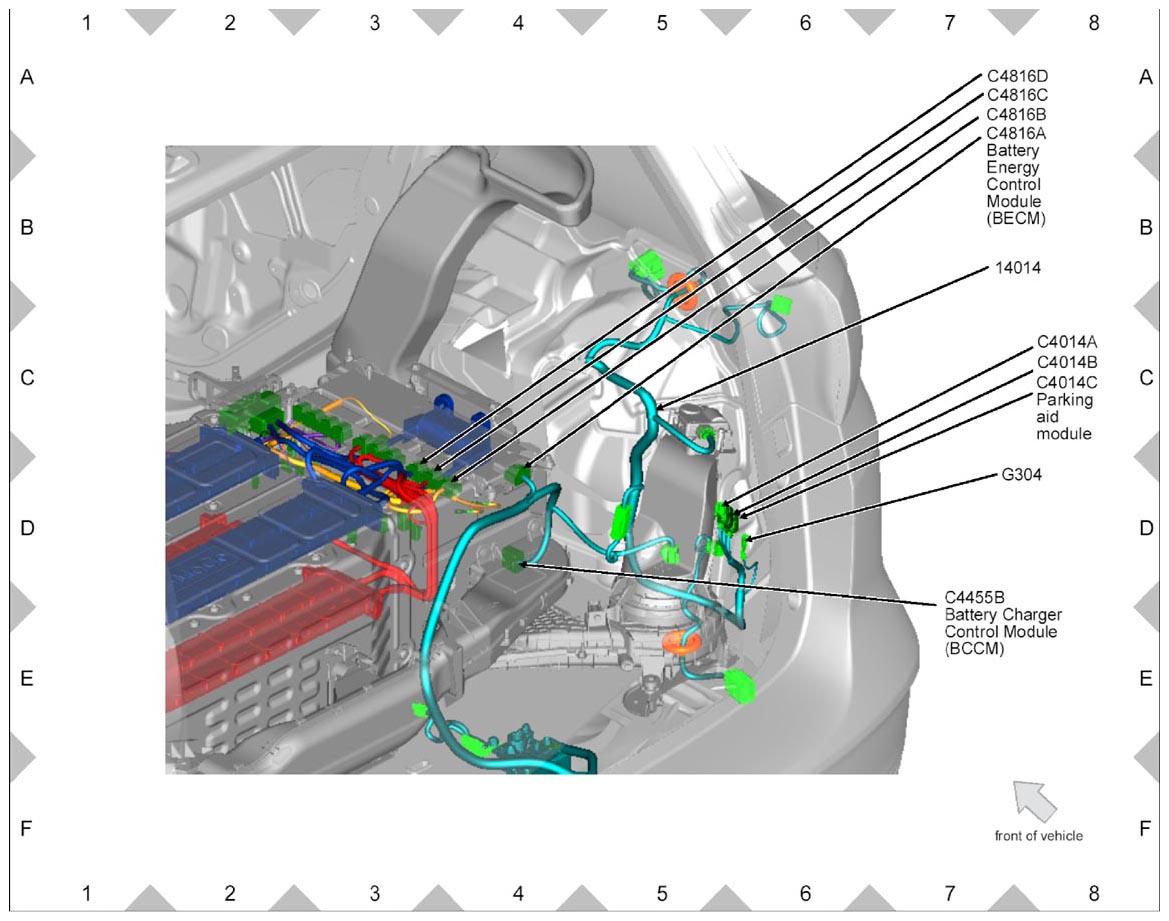

Fig 1: Battery Energy Control Module Wiring Harness Connectors Location

G09216774

Courtesy of FORD MOTOR CO.
