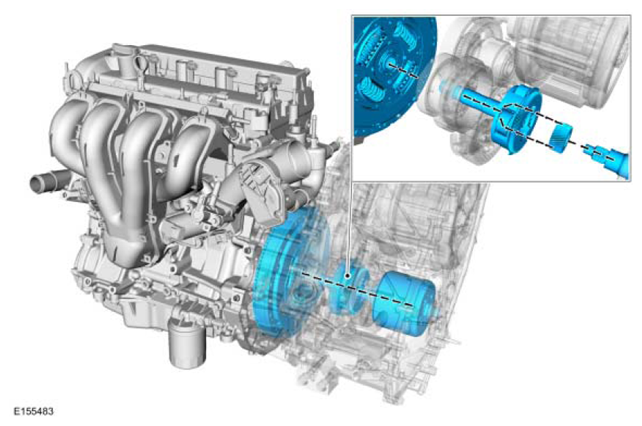

Engine Starting Power flow

G08408333Courtesy of FORD MOTOR CO.

To start the engine, the final drive works as a holding element to the ring gear in the planetary assembly. The generator/starter turns the sun gear to start the engine.
