Child Safety Seat Tether Anchor: Notes

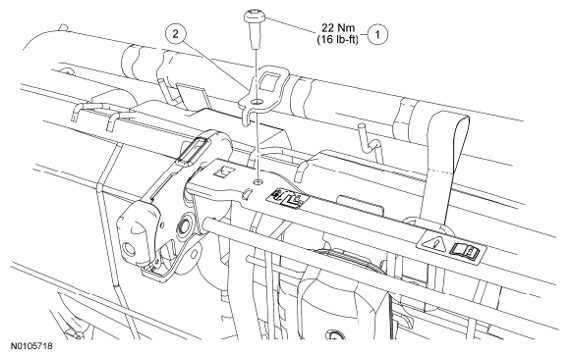

Fig 1: Child Safety Seat Tether Anchor And Bolt With Torque Specifications
G06328615Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613D74 Child safety seat tether anchor
2 W705708 Child safety seat tether anchor bolt
