Side Impact Sensor: Notes

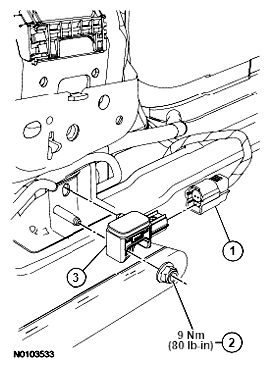

Fig 1: Side Impact Sensor Electrical Connector And Nut With Torque Specifications
G06293945Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact sensor electrical connector (part of 14A005)
2 W520201 Side impact sensor nut
3 14B345 Side impact sensor
