Side Air Bag Module: Notes
NOTE:

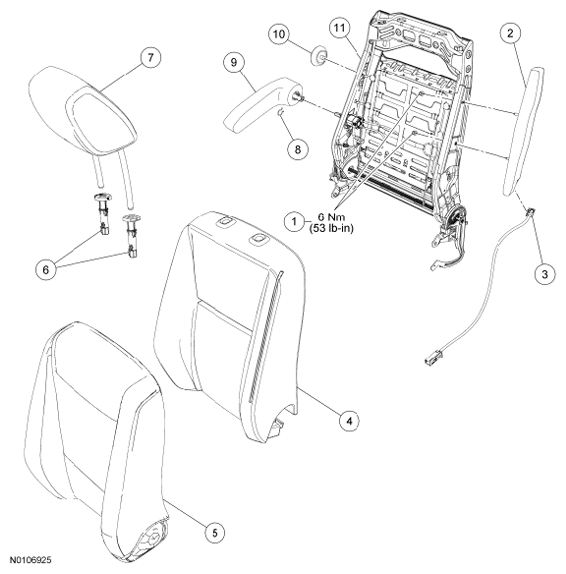

Driver seat shown in illustration, passenger similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520201 | Side air bag module nuts |
| 2 | 611D11 | Side air bag module |
| 3 | - | Side air bag module electrical connector |
| 4 | 64811 | Backrest foam pad |
| 5 | 64417 | Backrest cover |
| 6 | 610A16 | Head restraint guide sleeves (LH/RH) |
| 7 | 611A08 | Head restraint |
| 8 | 00817 | Armrest spring retainer |
| 9 | 644A23 | Armrest |
| 10 | 62578 | Adjustable lumbar knob |
| 11 | 61019 | Backrest frame |
