Passenger Air Bag Module: Notes

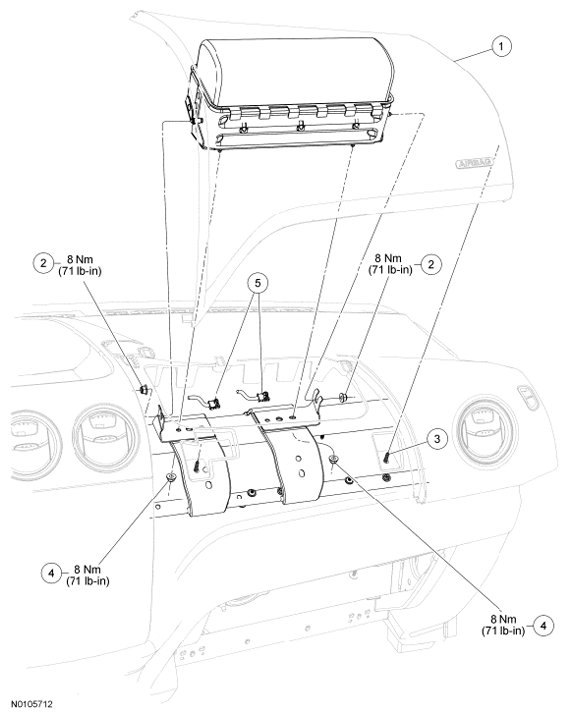

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	044A74	Passenger air bag module
2	W520101	Passenger air bag module nuts (2 required)
3	W711656	Passenger air bag module trim cover screw (2 required)
4	W520101	Passenger air bag module nuts (2 required)
5	-	Passenger air bag module electrical connectors (part of 14401)
