Front Impact Severity Sensor: Notes

NOTE: LH shown in illustration, RH similar.

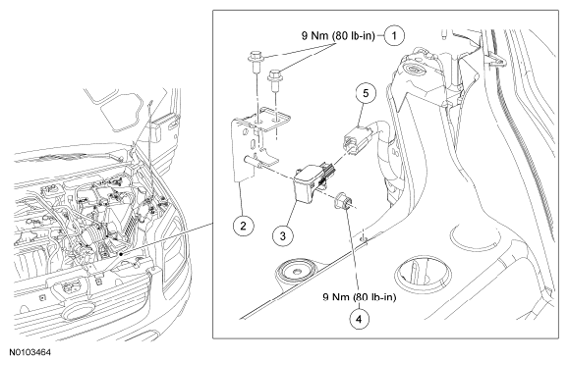

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front impact severity sensor bracket bolts
2	-	Front impact severity sensor bracket
3	14B345	Front impact severity sensor
4	W520201	Front impact severity sensor bracket nut
5	-	Electrical connector (part of 14290)
