Driver Air Bag Module: Notes
NOTE:

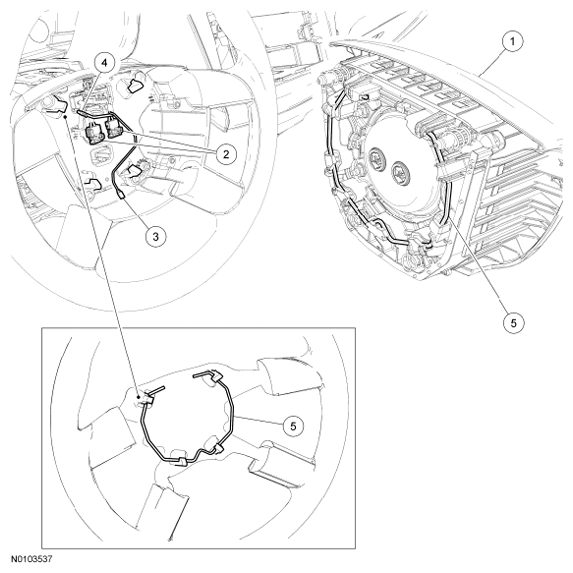

Driver air bag module wire clip (item 5) shown in illustration installed on steering wheel for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 043B13 | Driver air bag module |
| 2 | - | Driver air bag module electrical connectors (part of 14A664) |
| 3 | - | Horn switch electrical connector |
| 4 | - | Horn switch electrical connector |
| 5 | - | Driver air bag module wire clip (part of 04B13) |
