OEM Ground Distribution: Grounds: G203

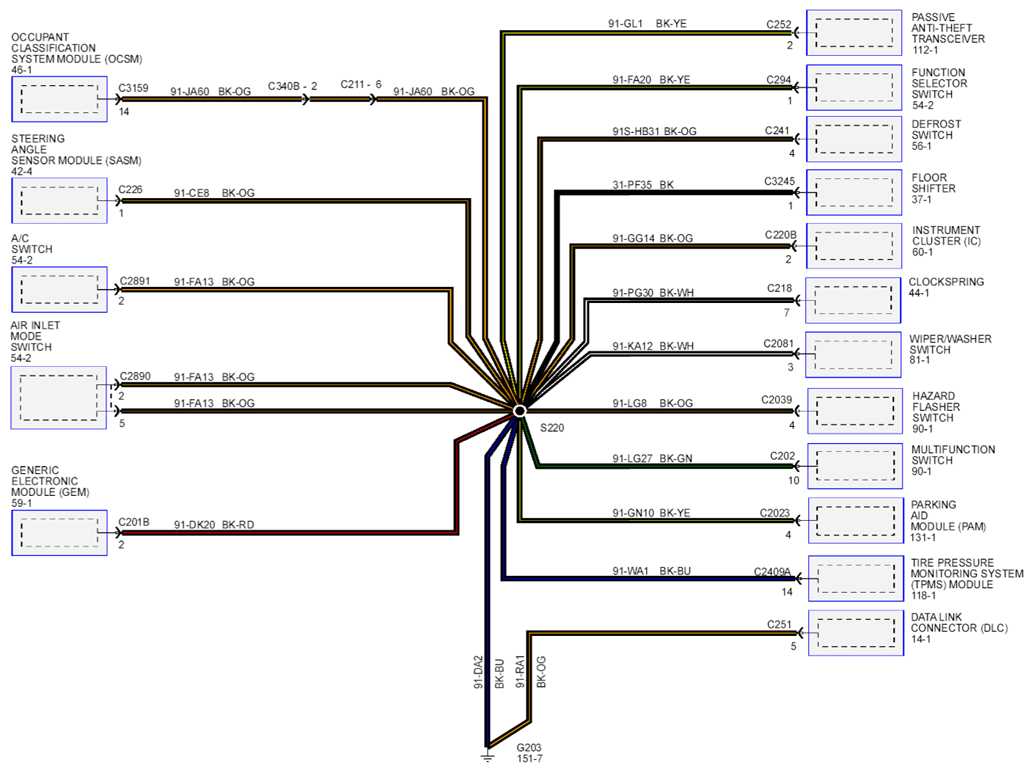

Fig 1: Grounds Circuit Diagram - G203

G07909295

Courtesy of FORD MOTOR CO.
