OEM Ground Distribution: Grounds: G200

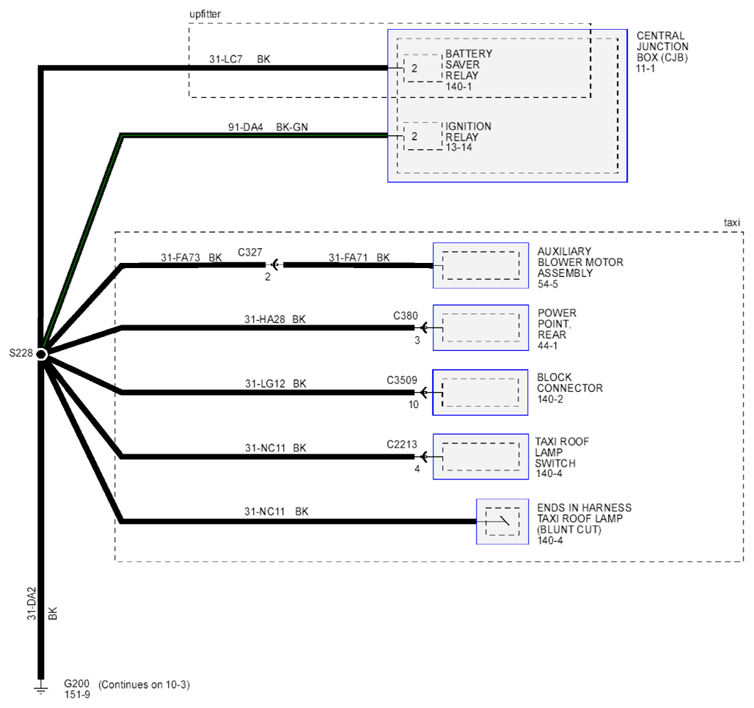

Fig 1: Grounds Circuit Diagram - G200

G07909294

Courtesy of FORD MOTOR CO.
