Instrument Panel Fasteners

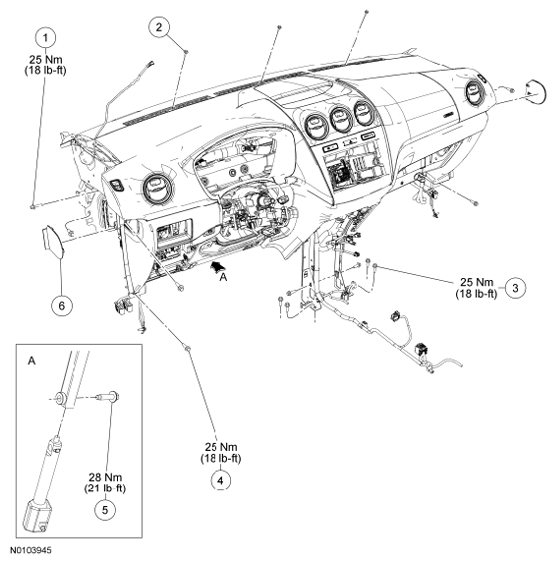

Fig 1: Instrument Panel Fasteners With Torque Specifications
G06328445Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W703476 Instrument panel side bolt
2 W707607 Instrument panel upper screw (3 required)
3 W703476 Instrument panel center support bolt (6 required)
4 W703476 Instrument panel front bolt (5 required)
5 W706229 Steering column shaft-to-steering column bolt
6 04480 LH/ 04880 RH Instrument panel side finish panel (2 required)
  1. For additional information, refer to the procedures in this information.
