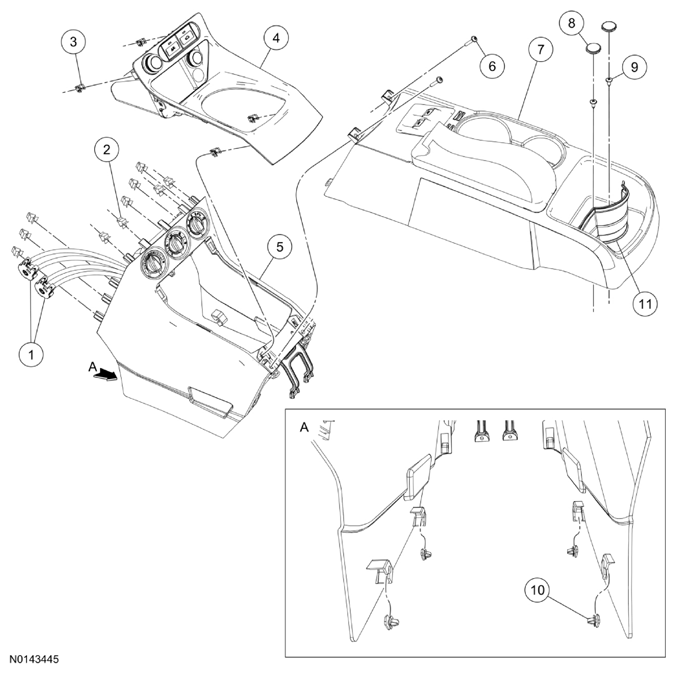

| 1 |
18549 |
Temperature control and mode control cables |
| 2 |
W700970 |
Front floor console section retaining clip (10 required) |
| 3 |
W700970 |
Selector lever trim panel retaining clip (4 required) |
| 4 |
061B38 |
Selector lever trim panel |
| 5 |
04567 |
Front floor console section |
| 6 |
W502664 |
Front-to-rear floor console screw (2 required) |
| 7 |
04567 |
Rear floor console section |
| 8 |
422B88 |
Rear floor console section screw cover (2 required) |
| 9 |
W502660 |
Rear floor console section screw (2 required) |
| 10 |
353129 |
Front floor console section pin-type retainer (4 required) |
| 11 |
V13560 |
Cup holder |
