Wiper/Washer Switch: Schematic

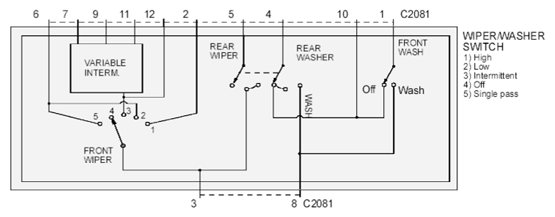

Fig 1: Wiper/Washer Switch - Component Testing

G07909349

Courtesy of FORD MOTOR CO.
