Air Inlet Duct: Notes

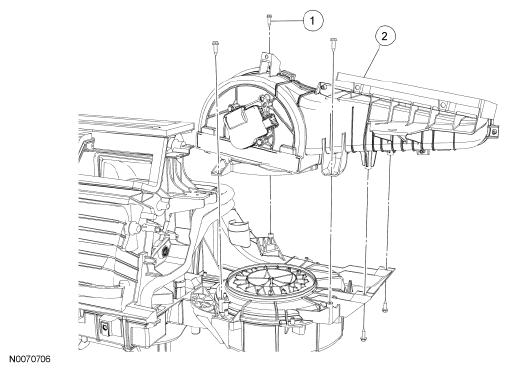

Fig 1: Identifying Air Inlet Duct And Front Air Inlet Duct Screw
G06064726Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701696 Front air inlet duct screw (5 required)
2 18B259 Air inlet duct
