Compressor Manifold and Tube Assembly - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

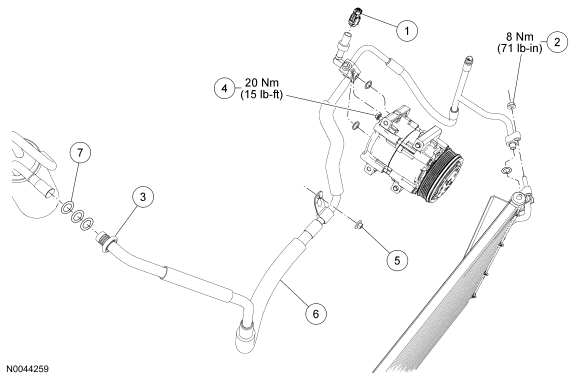

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A280 | Pressure cutoff switch electrical connector |
| 2 | W520413 | Condenser inlet fitting nut |
| 3 | - | Suction accumulator outlet fitting (part of 19D734) |
| 4 | W704692 | A/C compressor manifold bolt |
| 5 | N621940 | Compressor manifold and tube assembly bracket nut |
| 6 | 19D734 | Compressor manifold and tube assembly |
| 7 | 19E889 | O-ring seal (6 required) |
