Hood Alignment

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Open the hood.

  1. 2.

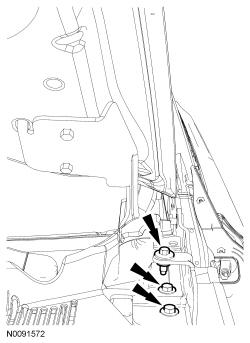

    Loosen the 4 lower hood hinge bolts and the 2 rear fender bolts until the hood will slightly move.
GFD89713Courtesy of FORD MOTOR COMPANY

  1. 3.

    Adjust the hood to align the hood-to-fender gaps. For additional information, refer to Body Repairs .

  1. 4.

    Tighten the 4 lower hood hinge bolts and the 2 rear fender bolts.
    • Tighten to 12 Nm (106 lb-in).

  1. 5.

    NOTE: The adjustable hood bumpers are located in the hood.

    Adjust the hood bumpers so the hood fits flush to the fenders.

GFD89714Courtesy of FORD MOTOR COMPANY
