Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

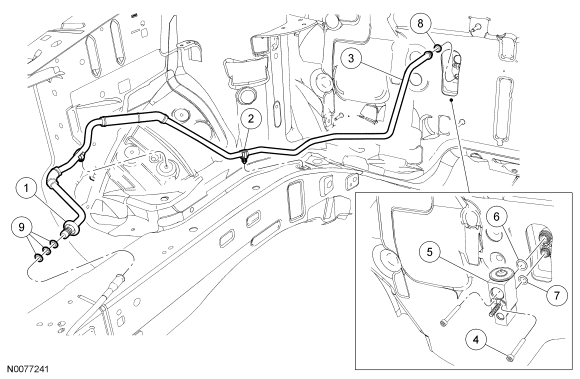

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Condenser-to-evaporator line spring lock coupling (part of 19835) |
| 2 | 19D721 | Condenser-to-evaporator line clip (2 required) |
| 3 | 19835 | Evaporator side condenser-to-evaporator line |
| 4 | - | Thermostatic expansion valve (TXV) bolt (2 required) (part of 19849 service kit) |
| 5 | 19849 | TXV |
| 6 | 19E889 | O-ring seal |
| 7 | 19E889 | O-ring seal |
| 8 | 19E889 | O-ring seal |
| 9 | 19E889 | O-ring seals (3 required) |
