Bumper - Exploded View, Front

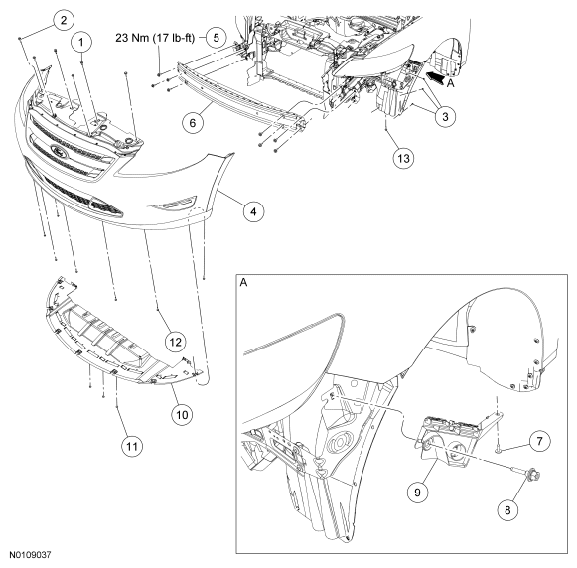

Fig 1: Exploded View Of Front Bumper With Torque Specifications
G06261079Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705436 Front bumper cover pin-type retainer (2 required)
2 W711685 Front bumper cover bolt (4 required)
3 W706805 Fender splash shield screws (6 required)
4 17D957 Front bumper cover
5 W707050 Front bumper bolt (8 required)
6 17750 Front bumper
7 W705436 Front bumper cover-to-front bumper cover mounting bracket scrivets
8 W714628 Front bumper cover mounting bracket bolt
9 17D958-A RH/17D959-A LH Front bumper cover mounting bracket
10 8B407 Lower air deflector
11 W706092 Rear lower air deflector pin-type retainer (3 required)
12 W505416 Lower air deflector bolt (7 required)
13 - Fender splash shield-to-lower air deflector bolt (2 required)
  1. For additional information, refer to the procedures in this information .
