Hood Latch: Notes

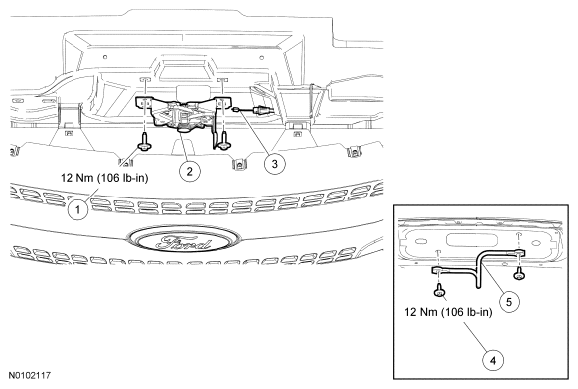

Fig 1: Hood Latch Related Replacement Components With Torque Specifications
G06254910Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808727 Hood latch bolts (2 required)
2 16700 Hood latch
3 16916 Hood latch release cable
4 N807658 Hood latch striker bolts (2 required)
5 16K689 Hood latch striker
