Passive Start Antenna - Console, Front: Notes

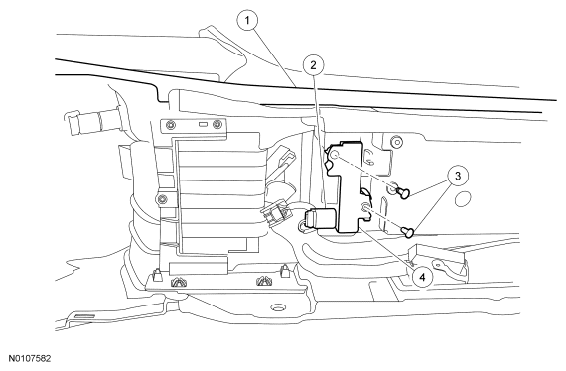

Fig 1: Identifying Front Console And Passive Start Antenna Components
G06254058Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Floor console
2 - Front floor console passive start antenna electrical connector (part of 14B079)
3 W713358 Front floor console passive start antenna screws (2 required)
4 15603 Front floor console passive start antenna
