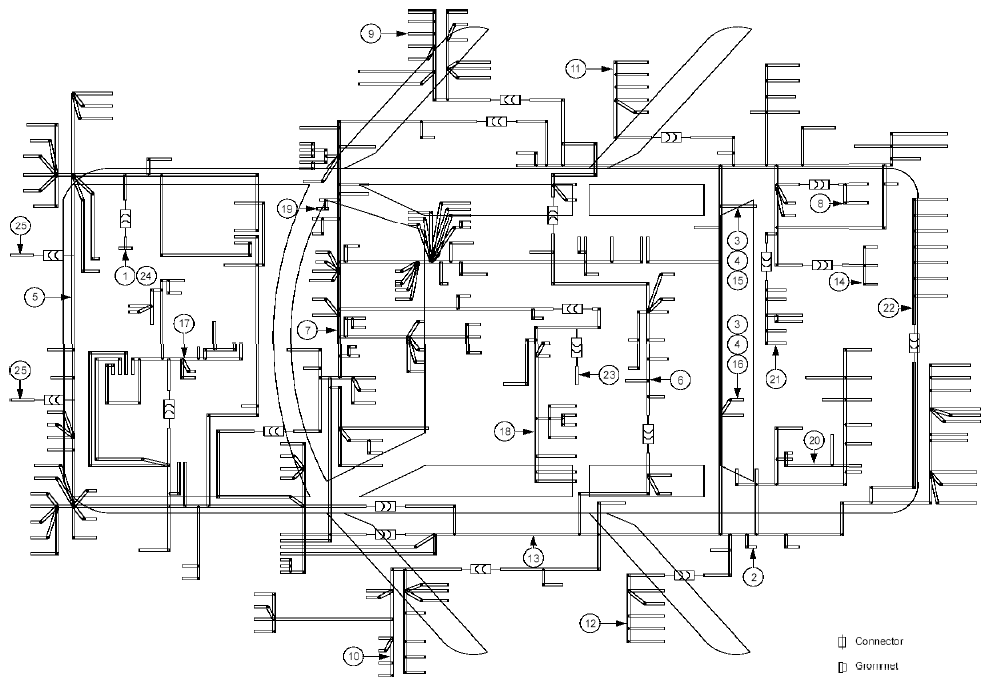

| 1 |
12C058 |
Wiring harness - Engine |
| 2 |
14A655 |
Wiring harness - Fuel tank sender extension |
| 3 |
14C687 |
Wiring harness - Side air bag jumper |
| 4 |
14D232 |
Wiring harness - Seat back |
| 5 |
14290 |
Wiring harness - Dash panel to headlamp junction |
| 6 |
14334 |
Wiring harness - Interior lamps |
| 7 |
14401 |
Wiring harness - Main |
| 8 |
14407 |
Wiring harness - Fuel tank gauge sender |
| 9 |
14630 |
Wiring harness - Window regulator, right front door |
| 10 |
14631 |
Wiring harness - Window regulator, left front door |
| 11 |
14632 |
Wiring harness - Window regulator, right rear door |
| 12 |
14633 |
Wiring harness - Window regulator, left rear door |
| 13 |
14A005 |
Wiring harness - Body main |
| 14 |
14A107 |
Wiring harness - Rear axle control jumper |
| 15 |
14D230 |
Wiring harness - Passenger seat |
| 16 |
14D231 |
Wiring harness - Driver seat |
| 17 |
14B060 |
Wiring harness - Starter motor relay and battery ground |
| 18 |
14B079 |
Wiring harness - Console panel |
| 19 |
14B324 |
Wiring harness - PTC heater |
| 20 |
18C620 |
Wiring harness - Rear window heater ground |
| 21 |
19K315 |
Wiring harness - Seat heated pad |
| 22 |
14N139 |
Wiring harness - Backup alarm jumper |
| 23 |
14D662 |
Wiring harness - Ambient lighting center console |
| 24 |
12B637 |
Wiring harness - Engine control sensor and fuel charge |
| 25 |
14A411 |
Wiring harness - Main jumper |
