Special Tool(s)
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

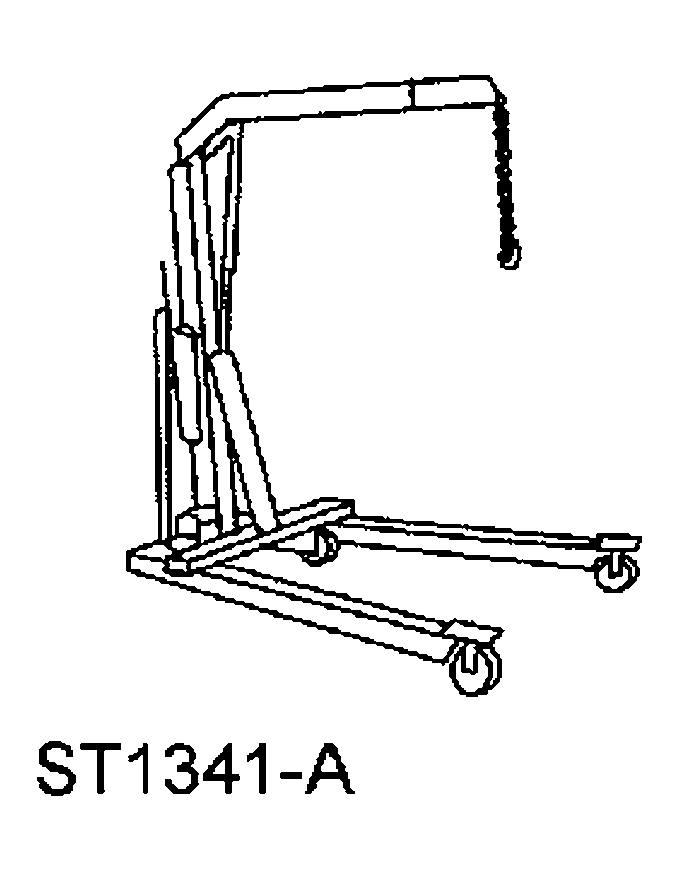

| 2, 200# Floor Crane, Fold Away 300-OTC1819E or equivalent | |
| Alignment Pins 307-399 | |
| Brush, Fuel Injector 310-205 | |

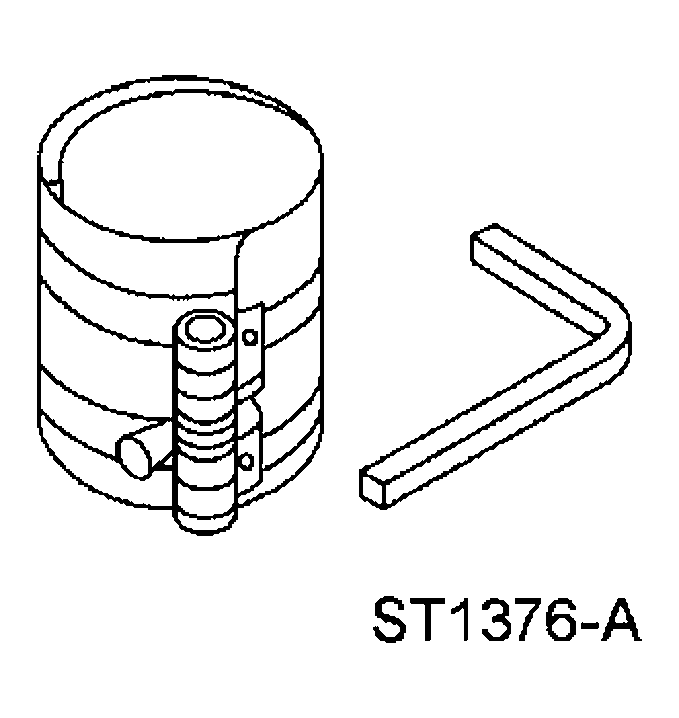

| Compressor, Piston Ring 303-D032 (D81L-6002-C) | |

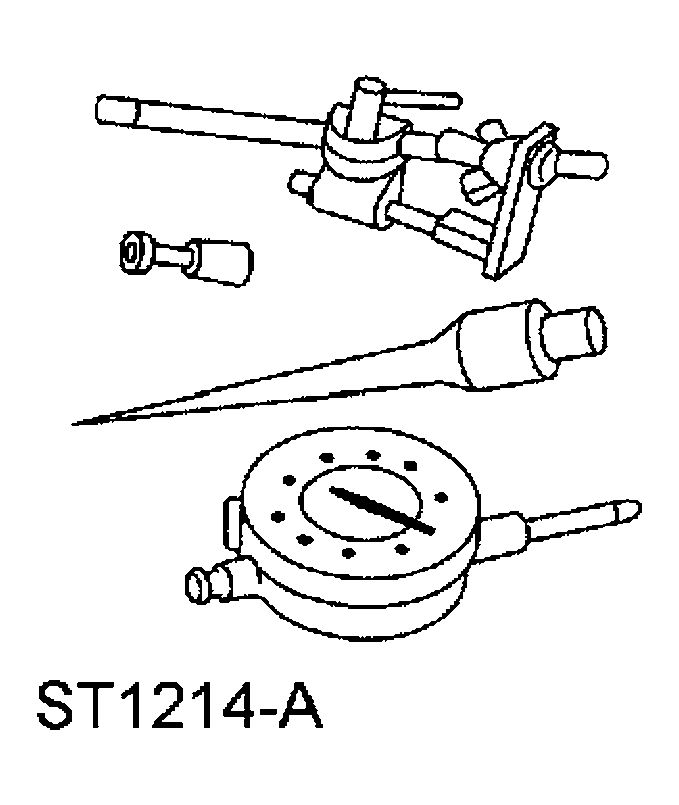

| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) | |
| Engine Lift Eye 303-1245 | |
| Handle 205-153 (T80T-4000-W) | |
| Installer, Crankshaft Vibration Damper 303-102 (T74P-6316-B) | |
| Installer, Front Cover Oil Seal 303-335 | |
| Installer, Front Crankshaft Seal 303-1251 | |
| Installer, VCT Spark Plug Tube Seal 303-1247/2 | |
| Seal Installer, Fuel Injector 310-207 | |
| Spreader Bar 303-D089 (D93P-6001-A3) or equivalent | |
| Strap Wrench 303-D055 (D85L-6000-A) or equivalent | |
| Tool, Camshaft Holding 303-1248 |
